Front

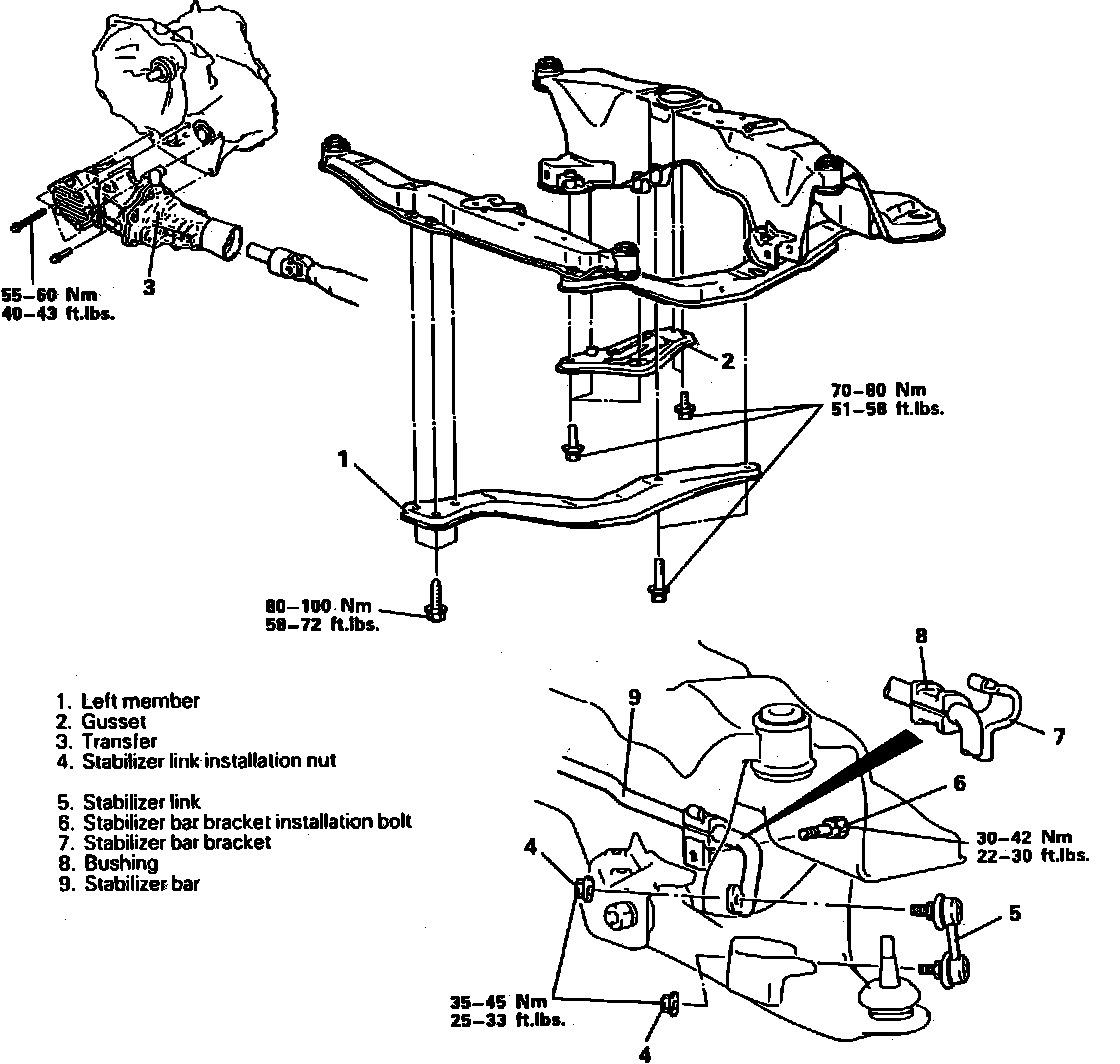

Fig. 7 AWD Suspension:

1. Remove stabilizer in numbered sequence, Fig. 7, noting the following:
2. Remove stabilizer bar:
a. Disconnect coupling of knuckle and lower arm at right side.
b. Pull out left side stabilizer bar edge, between the driveshaft and lower arm.
c. Pull out right side stabilizer bar edge, below the lower arm.
3. Reverse procedure to install.
