AWD Models

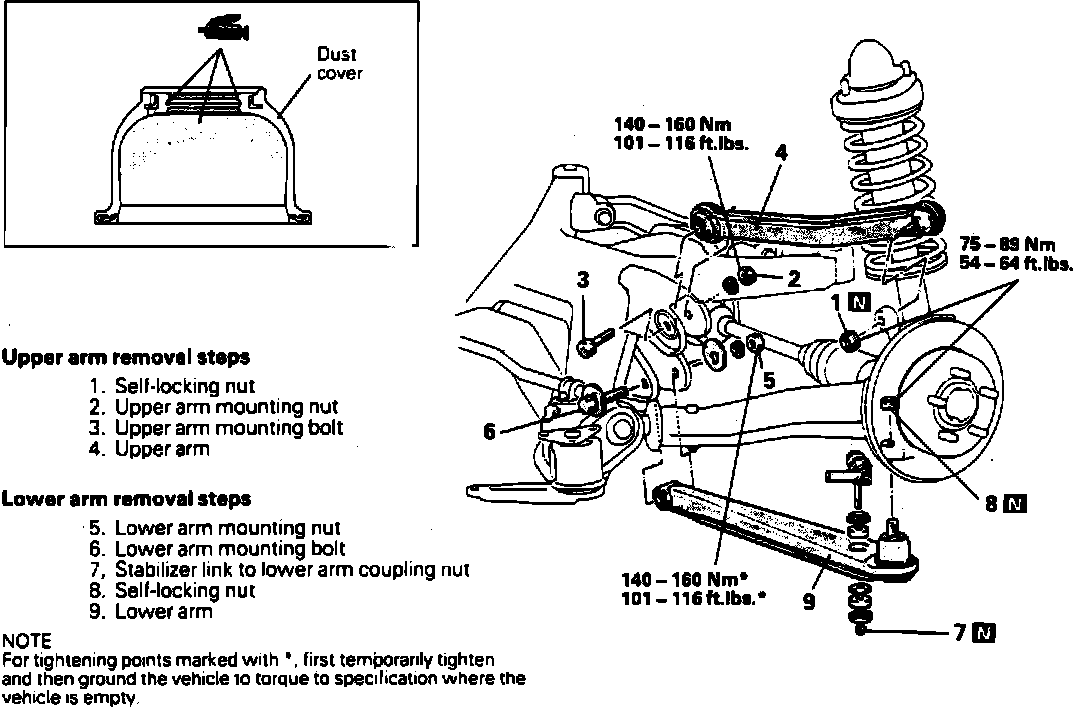

Fig. 29 Replacing Upper & Lowe Control Arms:

Remove upper and lower control arms in numbered sequence shown in Fig. 29, using ball joint remover tool No. MB991113-01 to disconnect upper and lower arm ball joint from knuckle. Loosen ball join nut do not remove.
