Magnetic Switch Pull-In Test

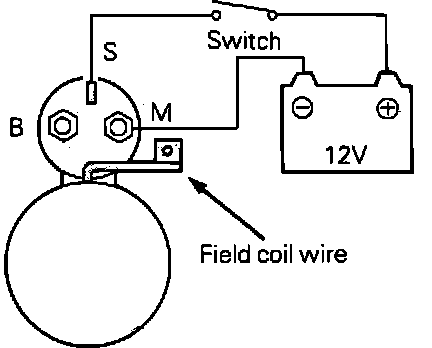

Fig. 5 Testing Magnetic Switch:

1. Disconnect field coil wire from ``M'' terminal of magnetic switch, Fig. 5.
2. Connect a 12 volt battery between ``S'' and ``M'' terminals. This test must be performed in less than 10 seconds to prevent coil from burning out.
3. If pinion moves out, then pull-in coil is operating correctly. If pinion does not move out, replace magnetic switch.
