Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> With Alarm >> Manual Transaxle

Manual Transaxle

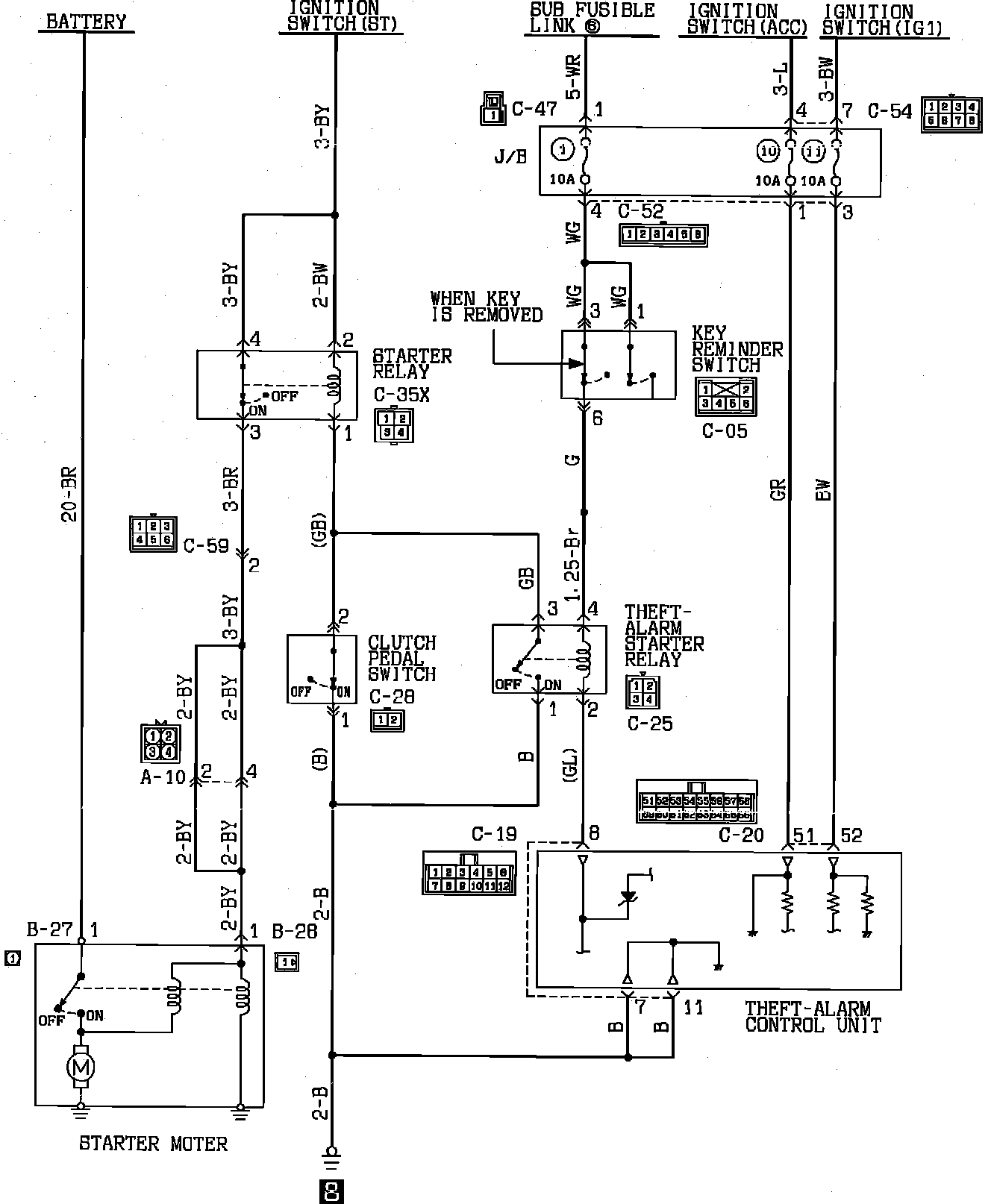

Starting System, With Alarm (M/T):
