Ignition - Module Connector B-15 Revision
NO.: TSB-91-13-010DATE: July, 1991
MODEL: 1991 Eclipse
SUBJECT:
CONNECTOR B-15 - SERVICE MANUAL CORRECTION
[TSB Revision TSB-91-13-010]
PURPOSE
This bulletin corrects the illustration for the Power Transistor connector number B-15 shown in the 1991 Eclipse Service Manual. The service manual shows a 6-pin connector. Connector B-15 is actually an 8-pin connector.
Please make the indicated service manual corrections and as reference to this TSB, please write this TSB number in the TSB revision box at the bottom of each affected Service Manual page.
AFFECTED SERVICE MANUAL PAGE
1991 Eclipse Volume 1, Pages 13-99, 13-104, 13-109.
1991 Eclipse Volume 2, Pages 16-31, 63, 68, 74.
TYPICAL SERVICE MANUAL CORRECTION

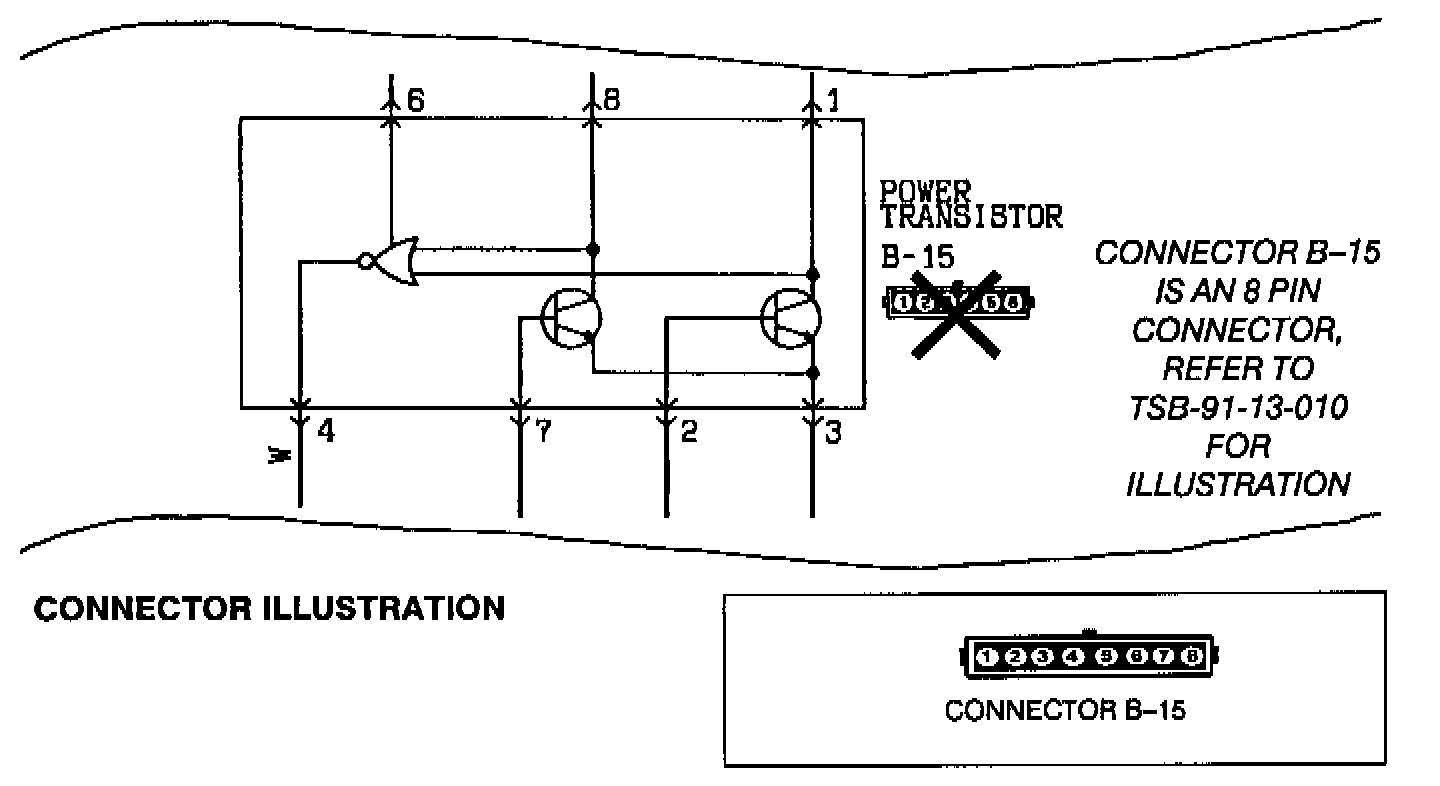

As shown, please write "CONNECTOR B-15 IS AN 8-PIN CONNECTOR, REFER TO TSB-91-13-010 FOR ILLUSTRATION."
