Positive Rectifier

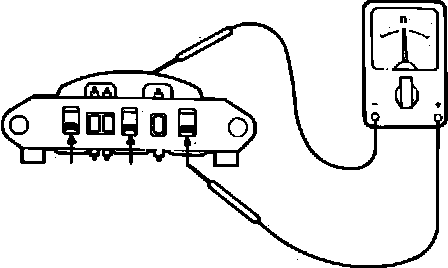

Fig. 6 Testing Positive Rectifier:

Check continuity between positive rectifier and stator coil lead terminal with an ohmmeter as shown in Fig. 6. Ohmmeter should read continuity in only one direction, if continuity is in both directions a diode is shorted and the rectifier assembly must be replaced.
