M/T Torque Data

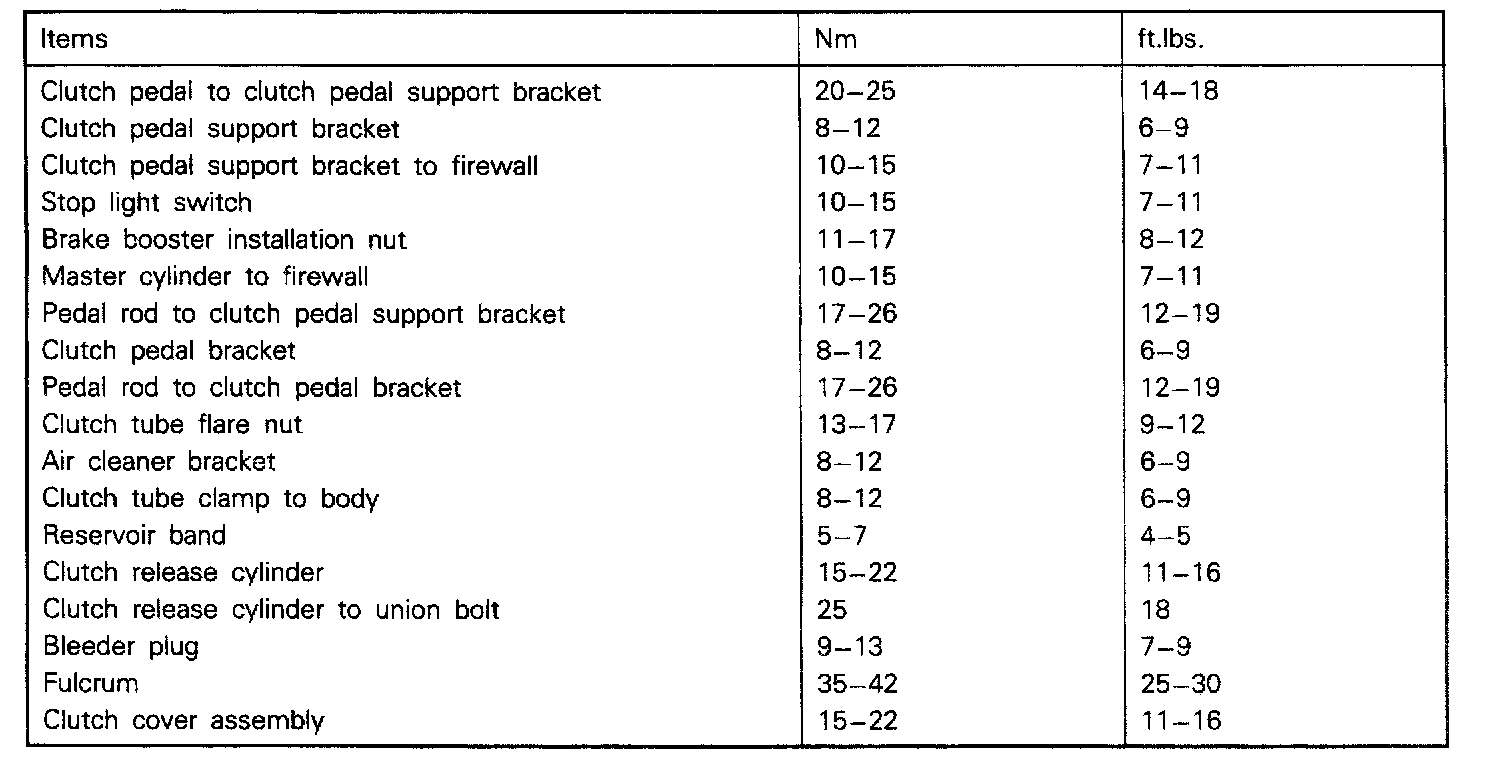

W5M33 5-spd M/T, Clutch Torque:

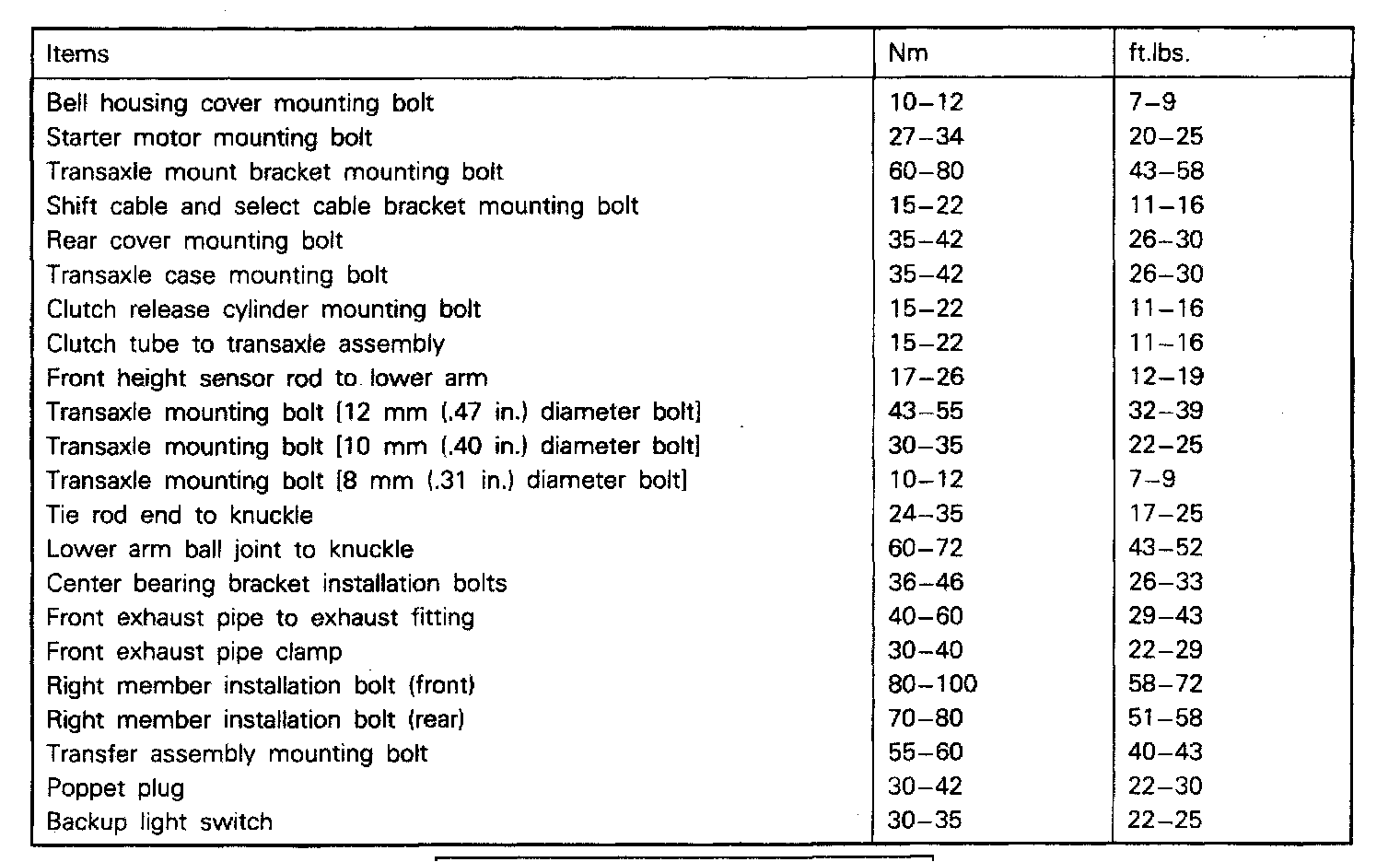

W5M33 5-spd M/T, Transaxle Torque:

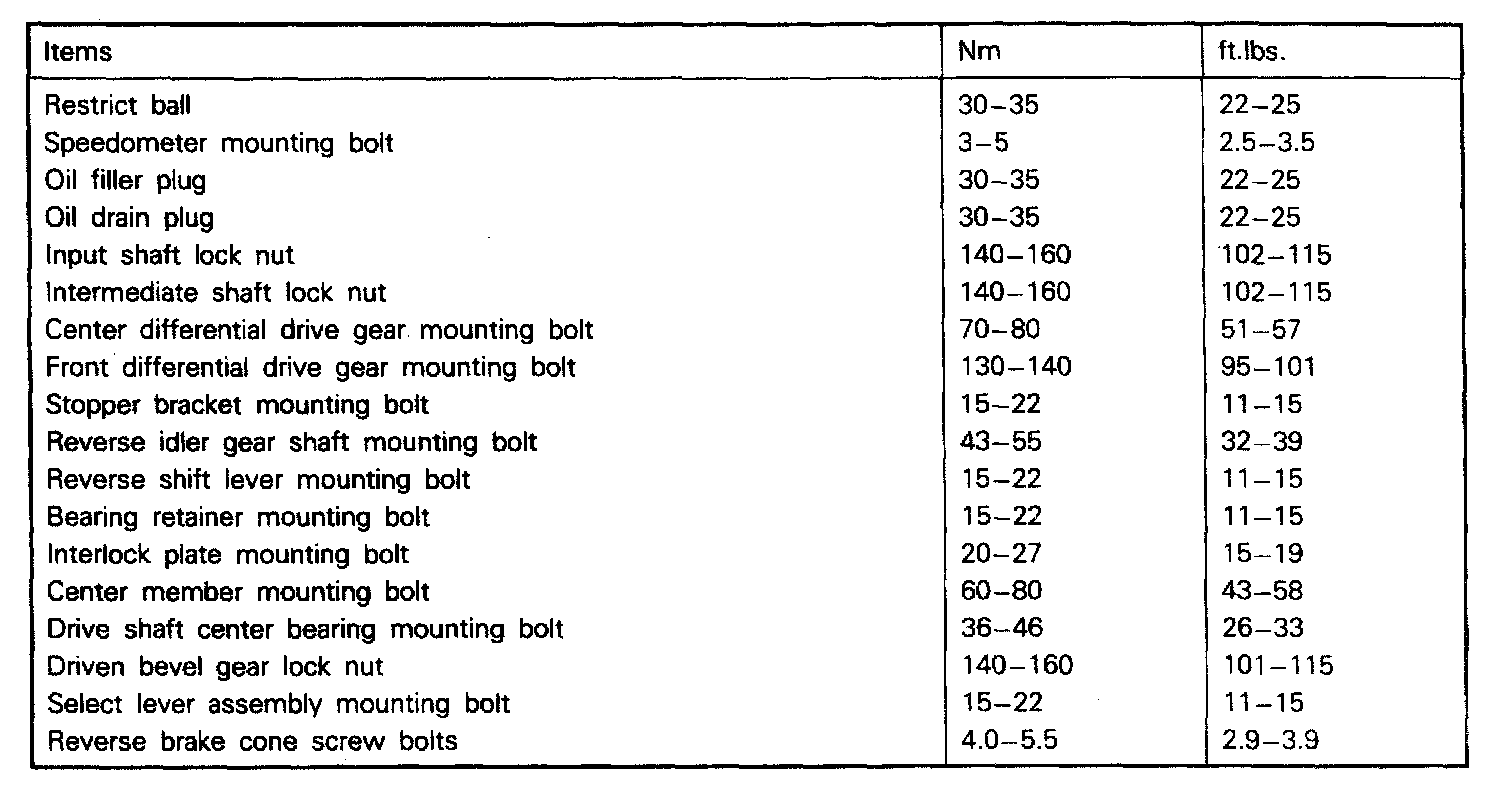

W5M33 5-spd M/T, Transaxle Torque:





W5M33 5-spd M/T, Transfer Case Torque:
