Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications

System Specifications

��LTightening Specifications:

�\�LTightening Specifications:

Tightening Specifications:

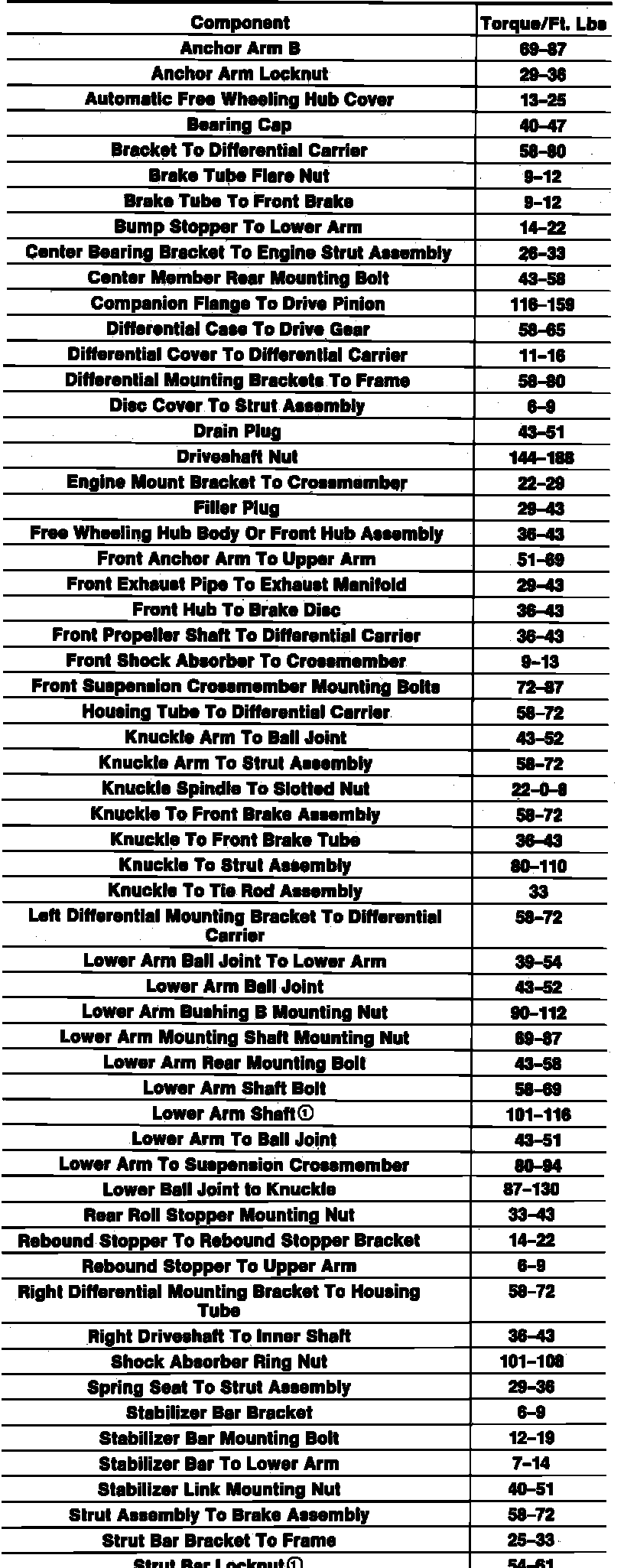

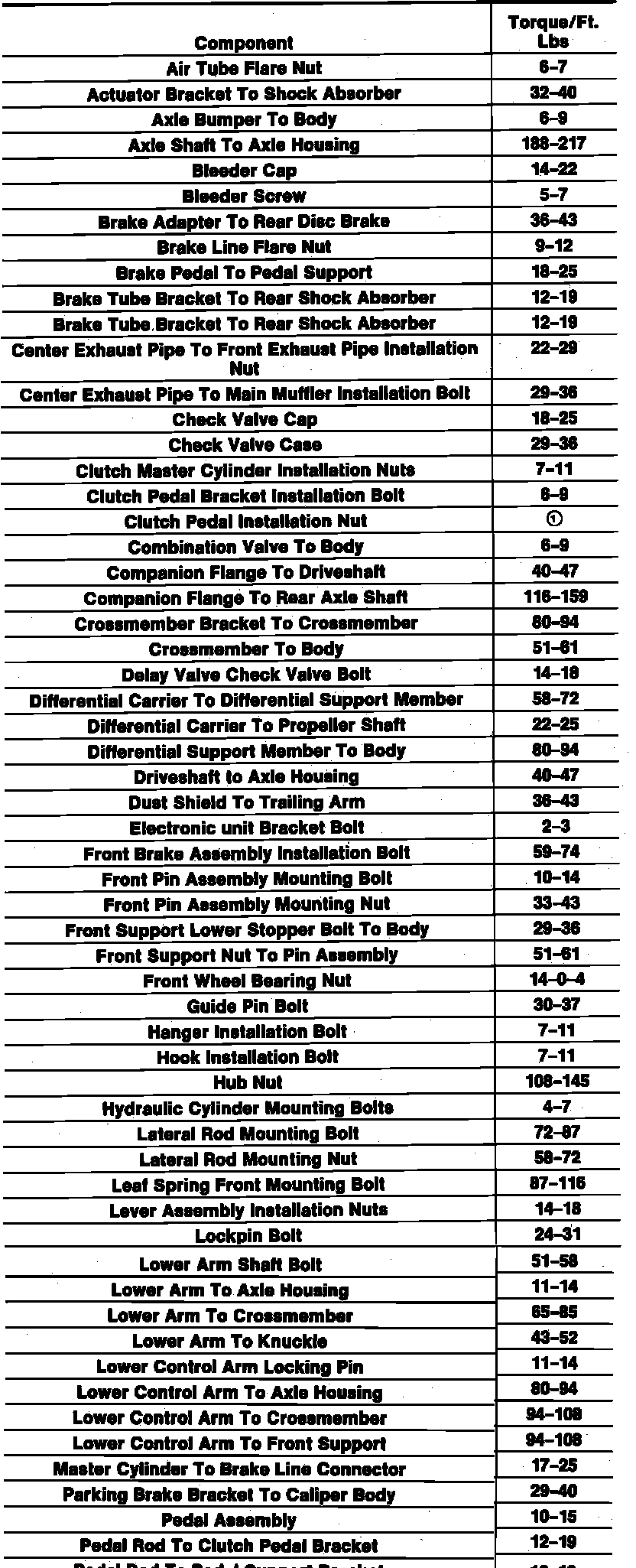

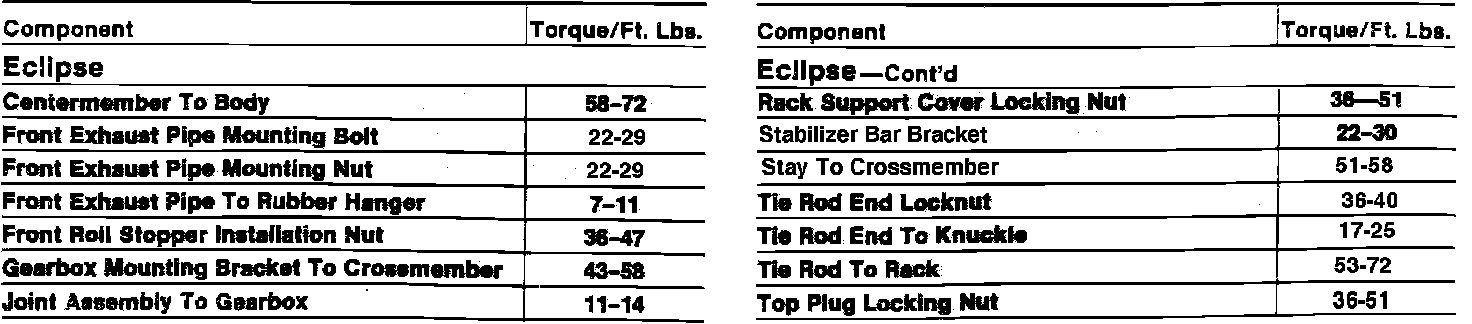

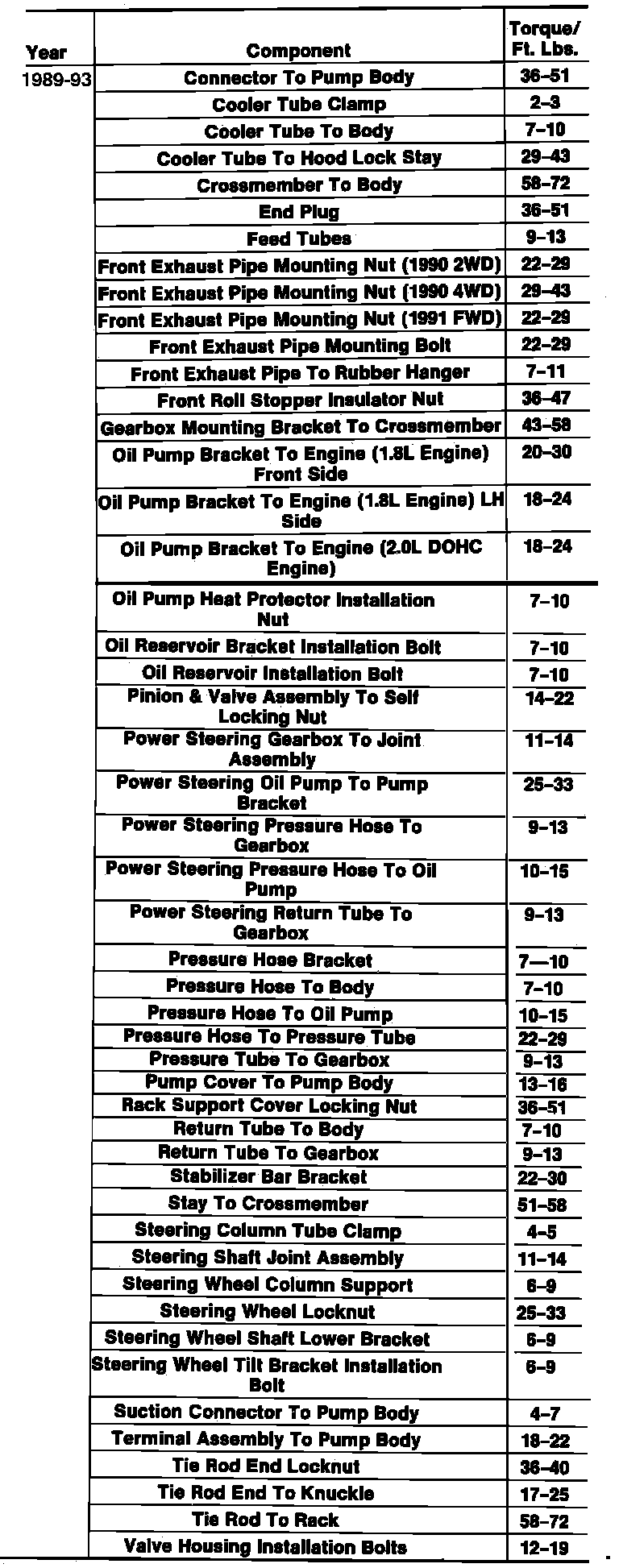

Fig. 48 Tightening Specifications. Eclipse:
