Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

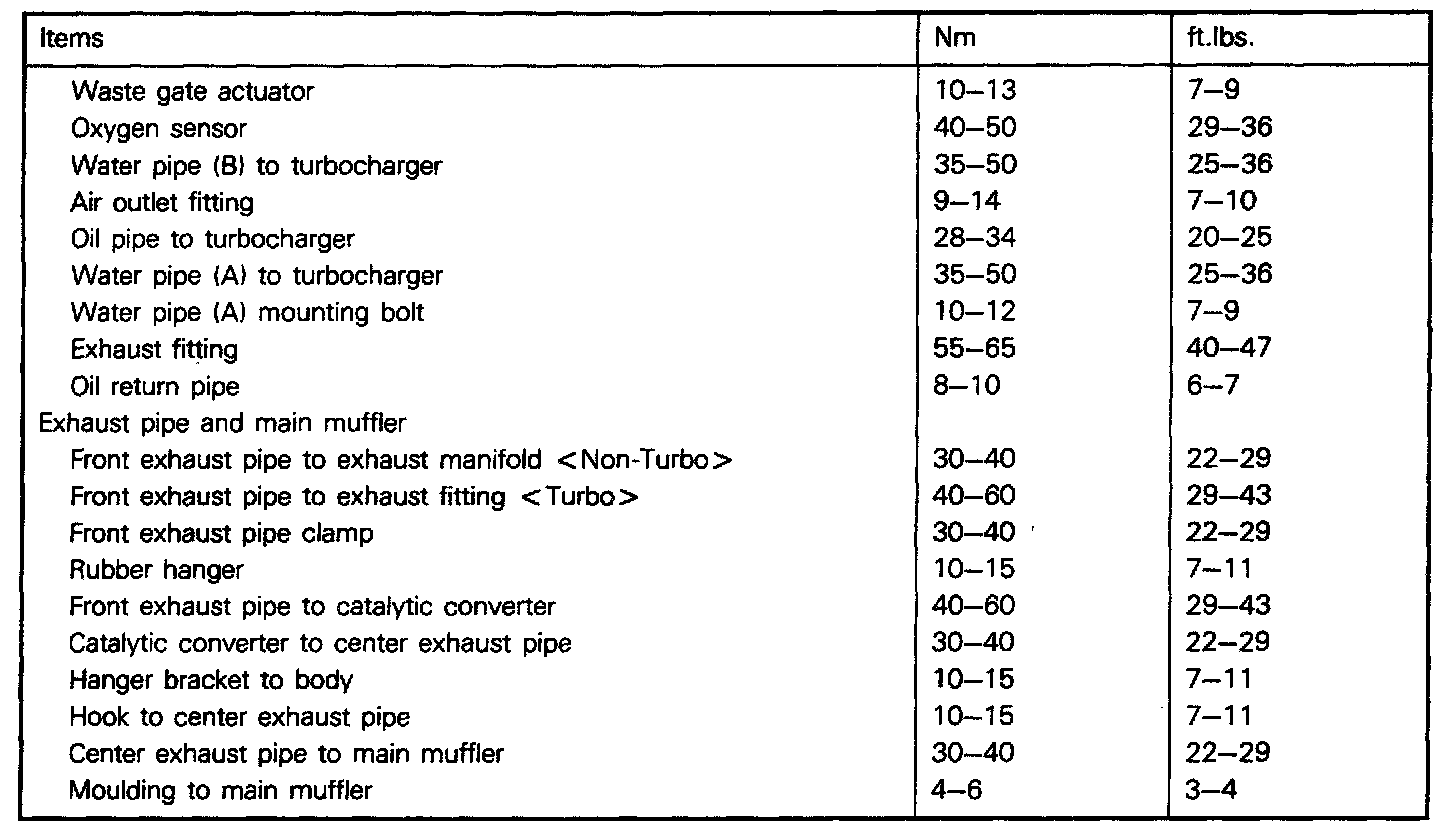

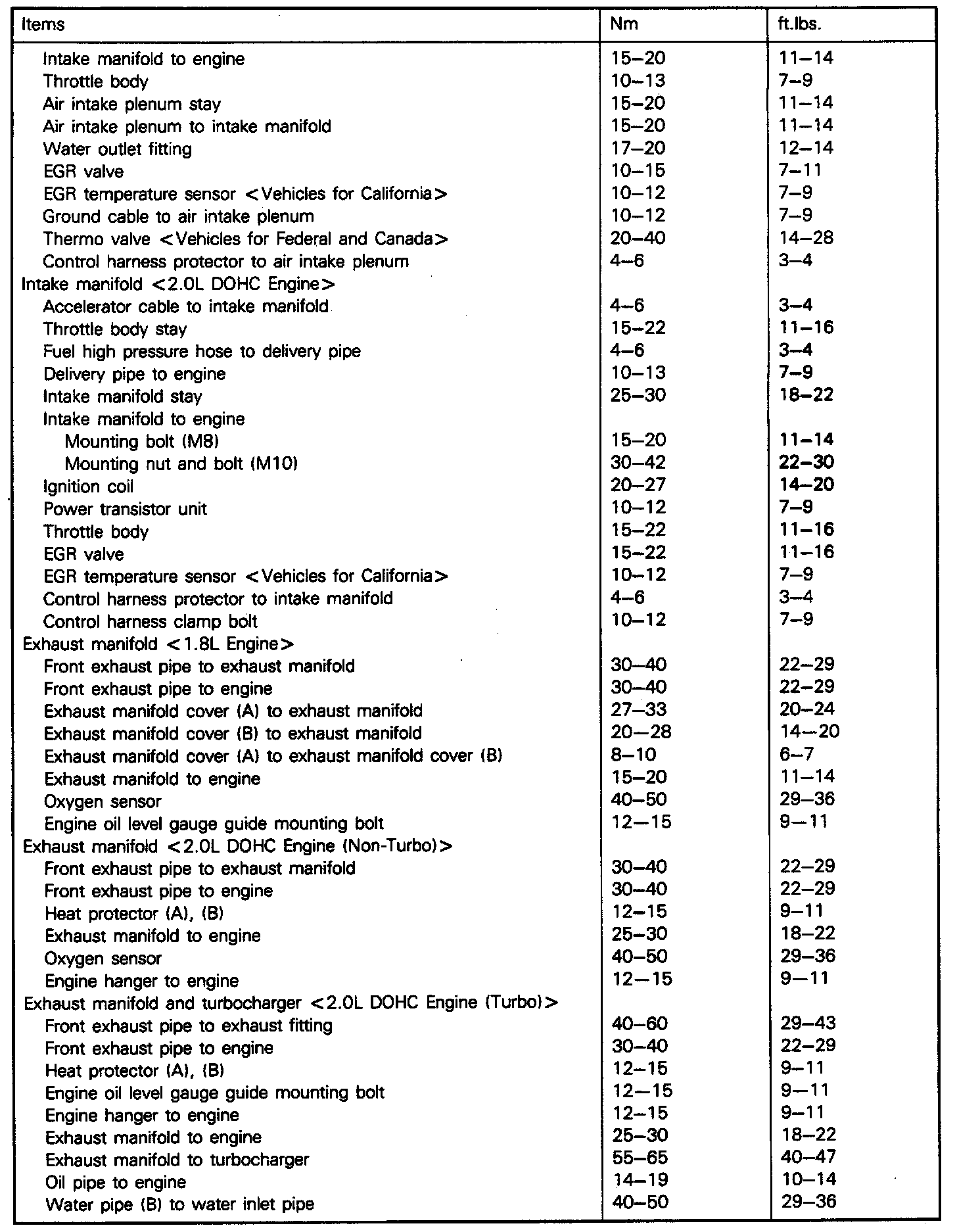

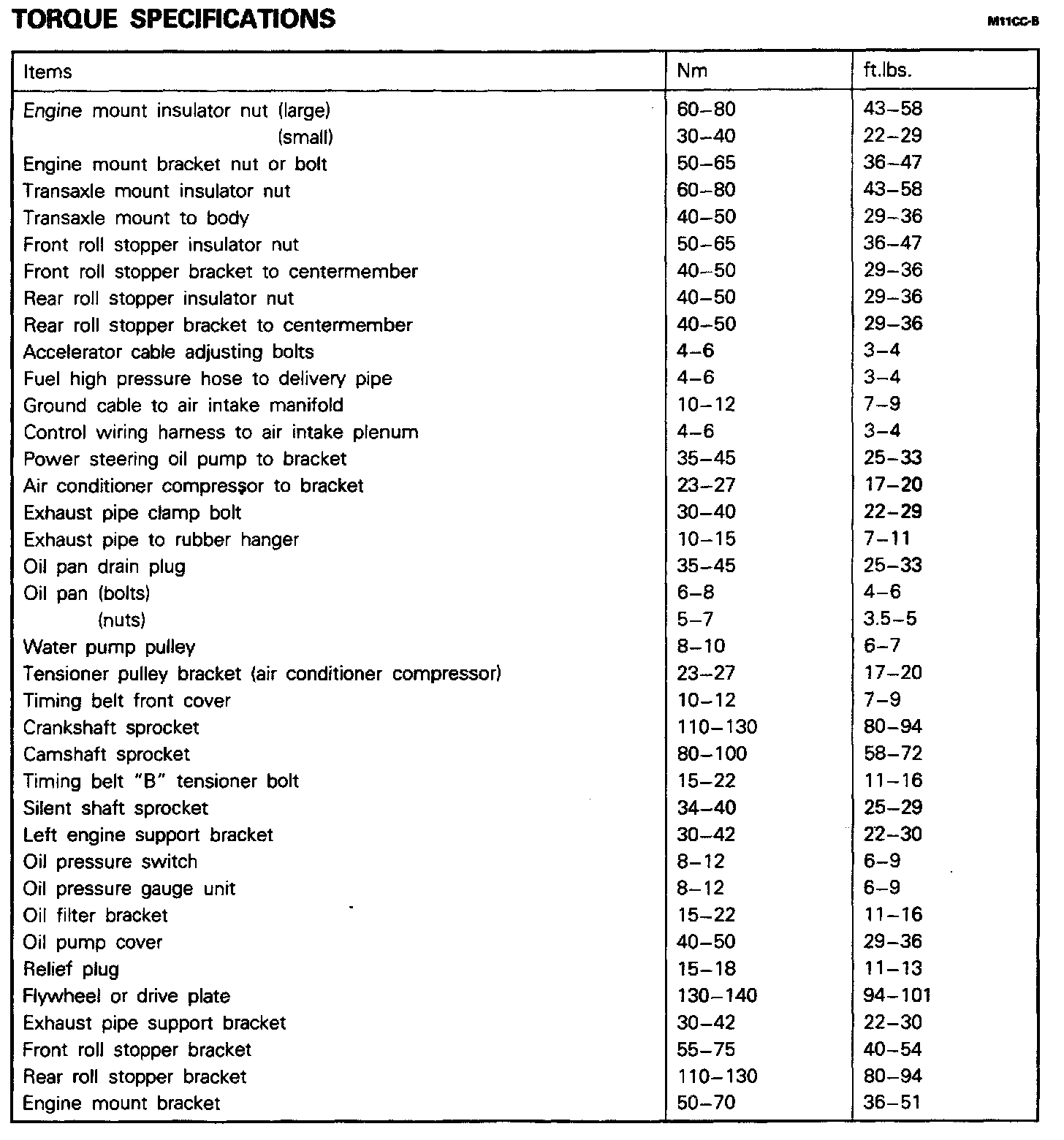

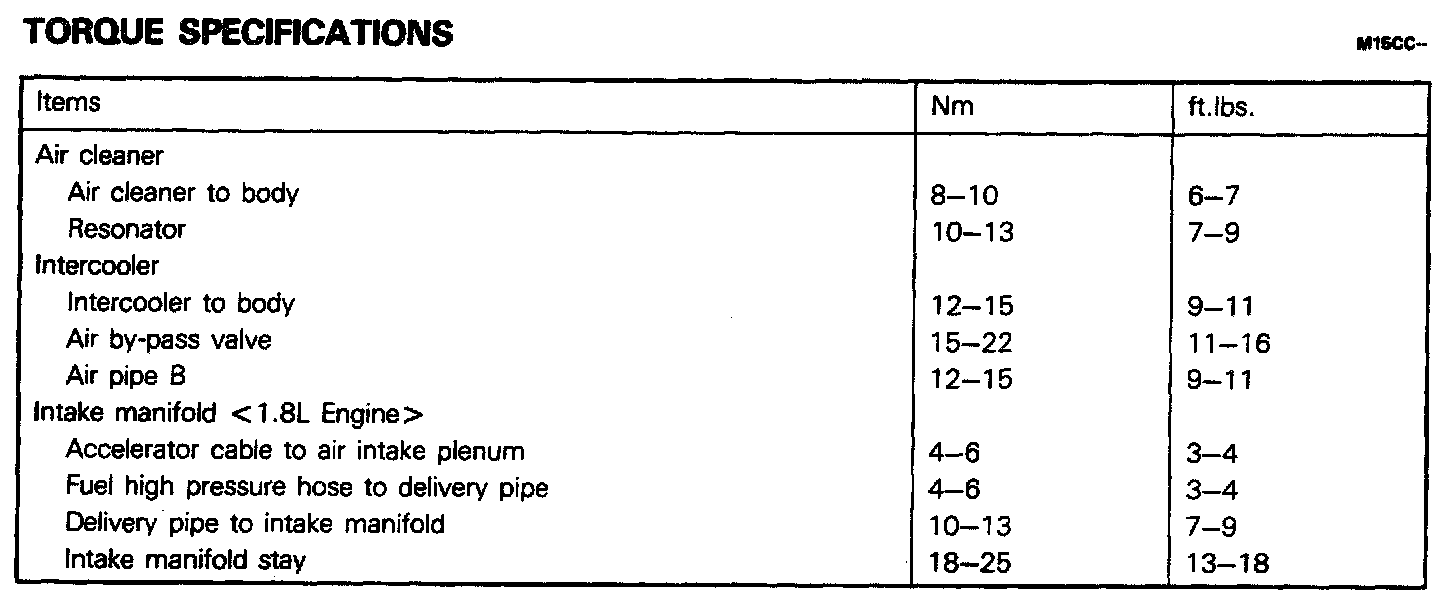

Torque Specifications Part 1:



Torque Specifications Part 2:



Torque Specifications Part 3:



Torque Specifications Part 4:



Torque Specifications Part 5:
