Cruise Control - Clutch Switch Terminal Correction
NO.: TSB-92-13-001DATE: January, 1992
MODEL: 1991-92 Eclipse
[TSB Revision TSB-92-13-001]
SUBJECT:
CLUTCH SWITCH TERMINAL VOLTAGE - SERVICE MANUAL CORRECTION
PURPOSE
This Technical Service 8ulletin corrects the clutch switch terminal voltages shown in the Auto-Cruise Control System section of the service manual. As a reference to this bulletin, write the TSB revision number in the TSB revision box located near the bottom of each affected service manual page.
AFFECTED SERVICE MANUAL
1991 Eclipse, Volume 1, Page 13-203.
1992 Eclipse, Volume 1, Page 13-215.
DESCRIPTION

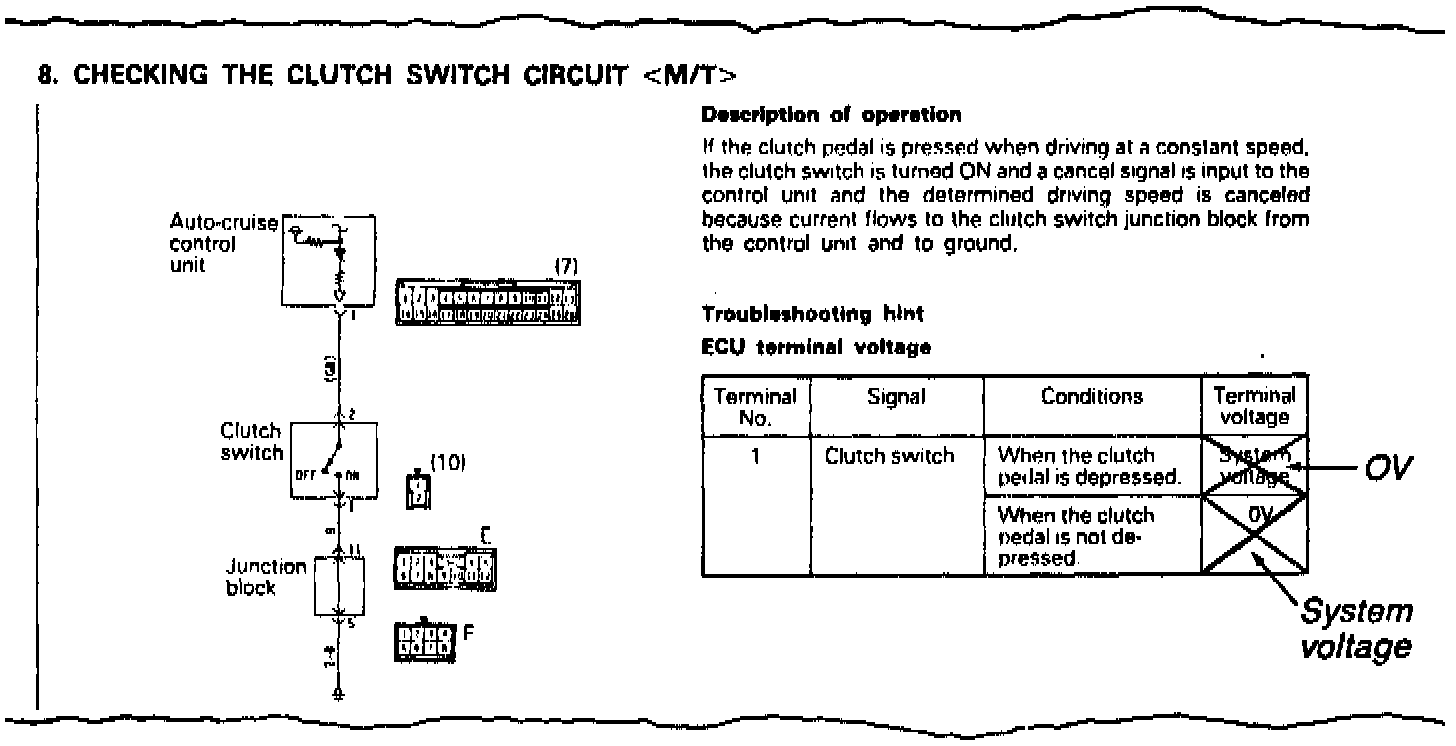

As shown in the example, reverse the terminal voltage callouts for the clutch switch.
