Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

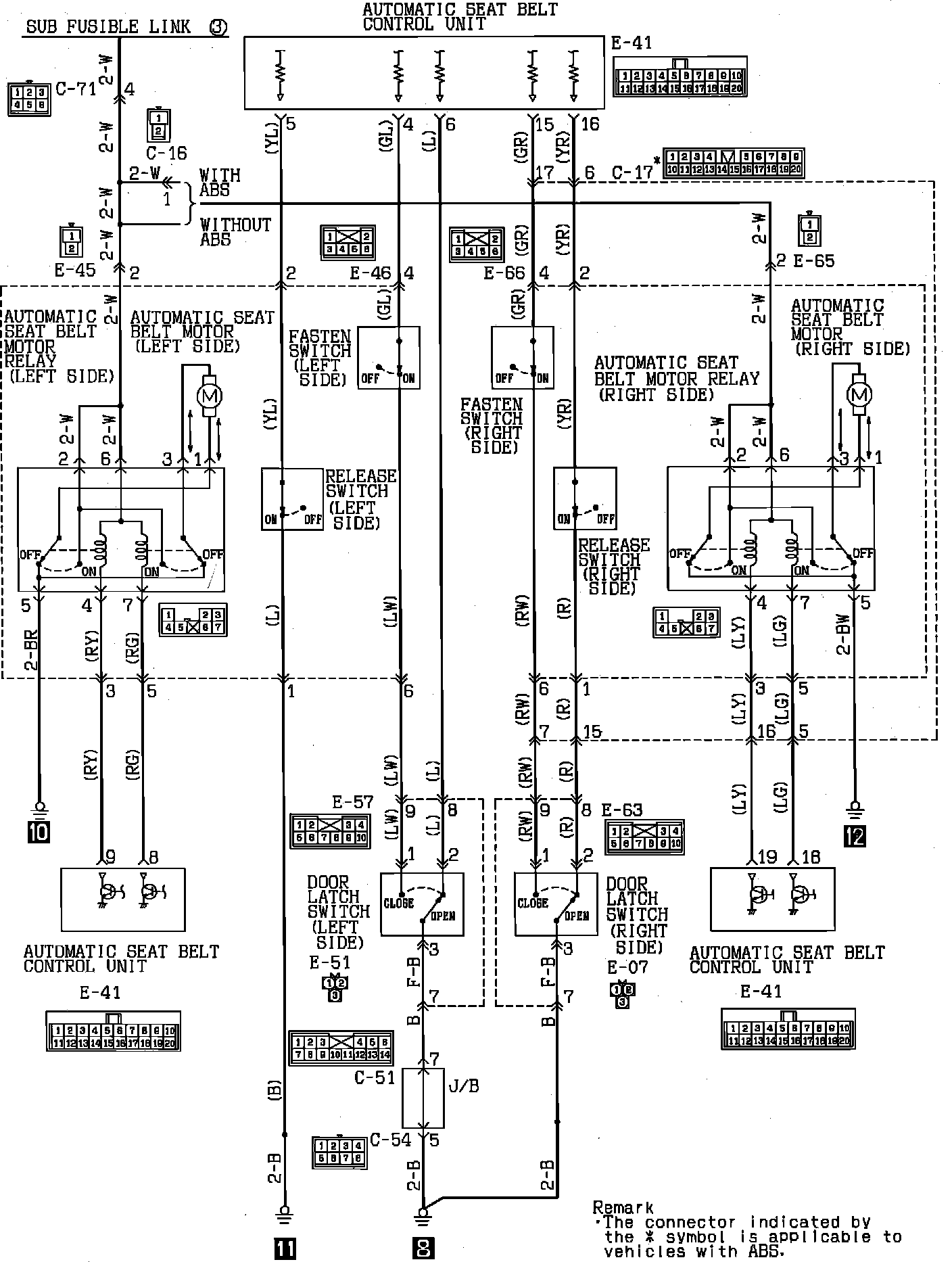

Automatic Seat Belt:

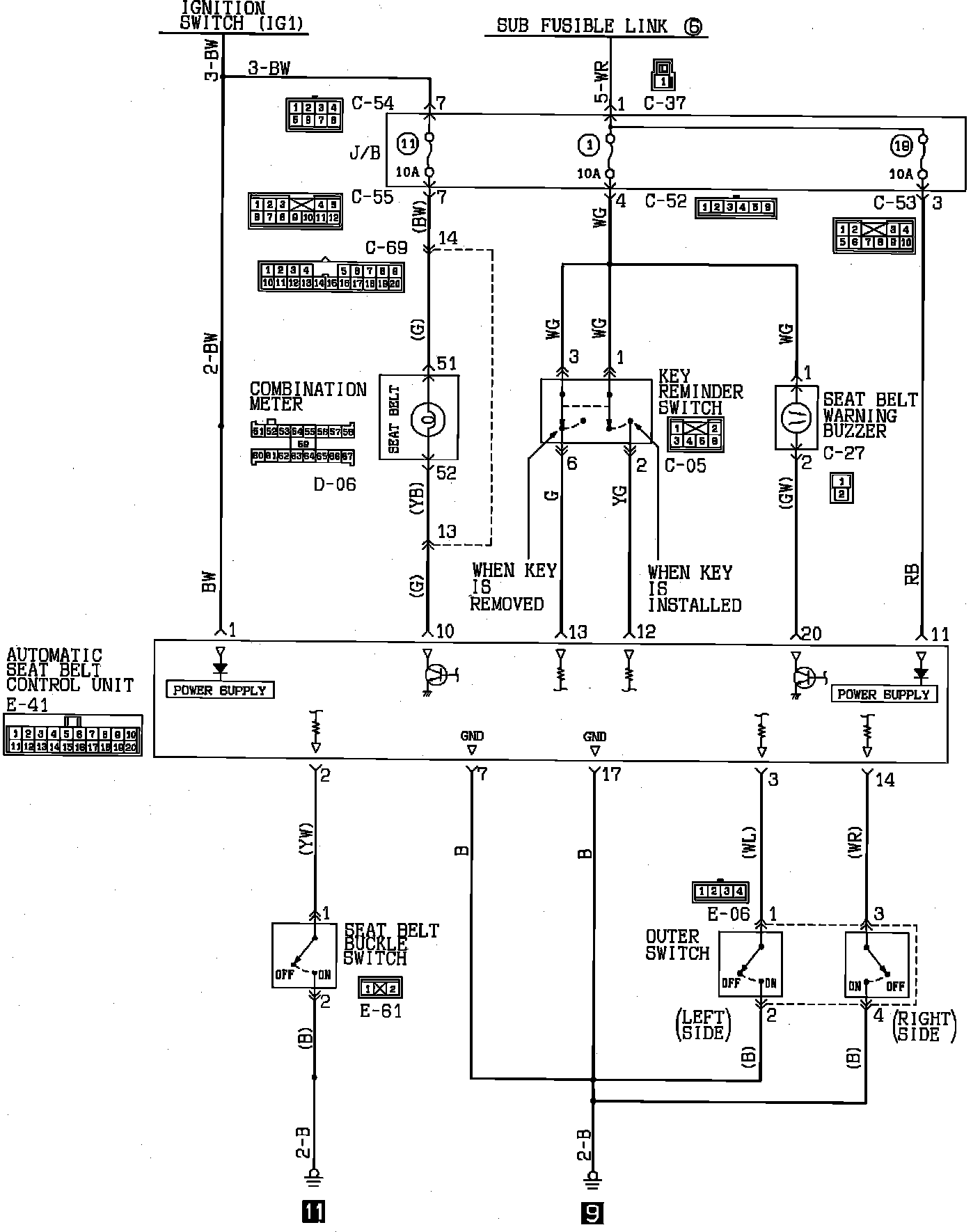

Automatic Seat Belt:
