Compressor Clutch Relay: Locations

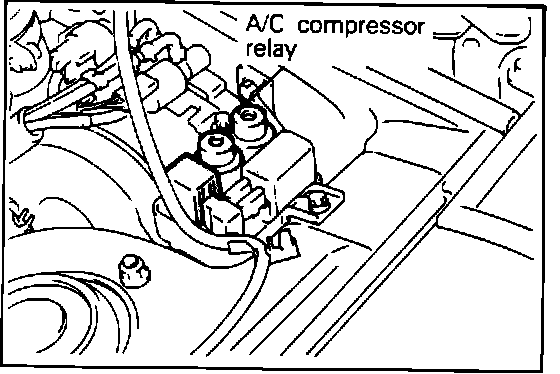

A/C Relay Location:




Relay Locations:




Mounted on the left fender apron, near the firewall.
