Electronic Brake Control Module: Locations

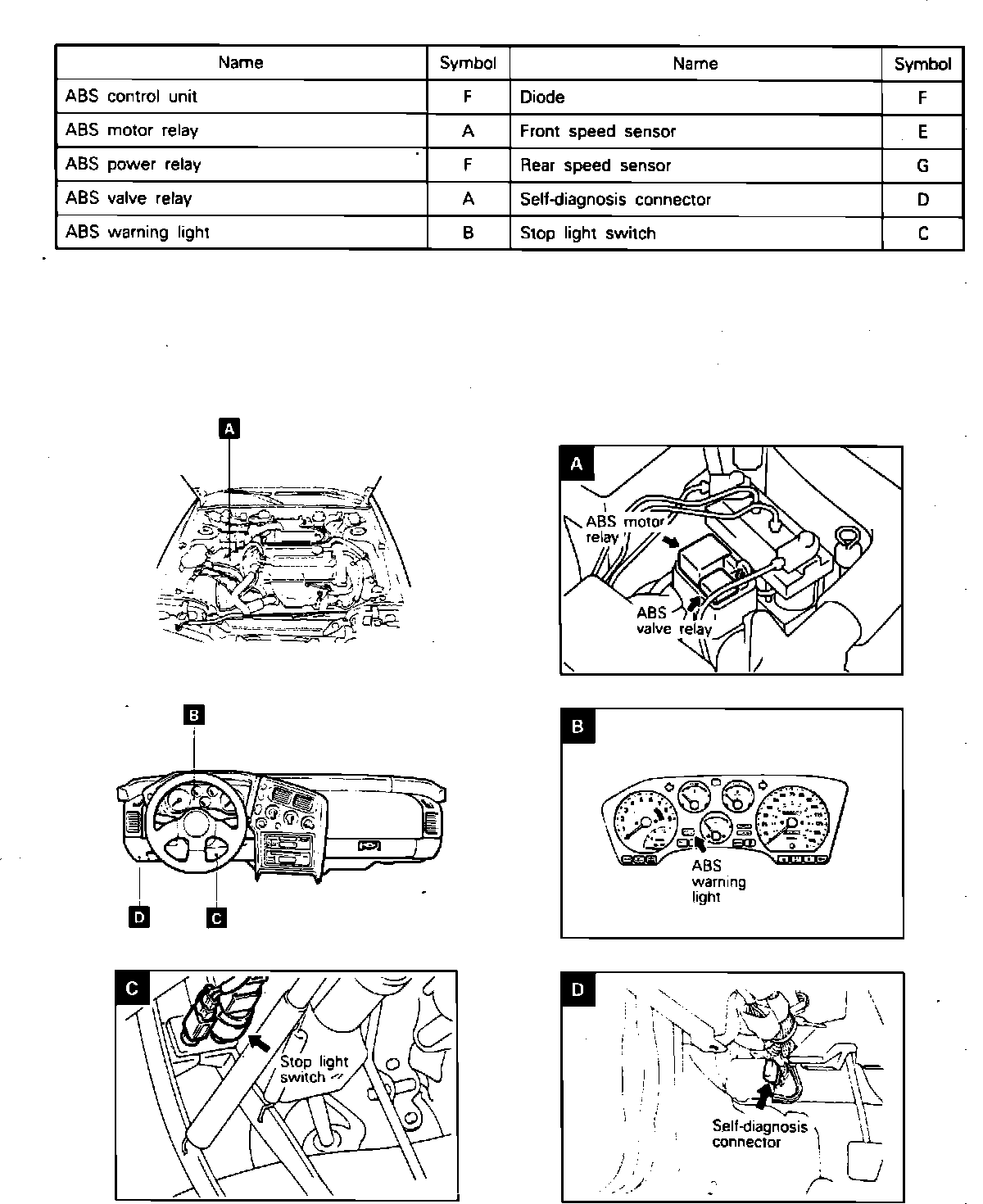

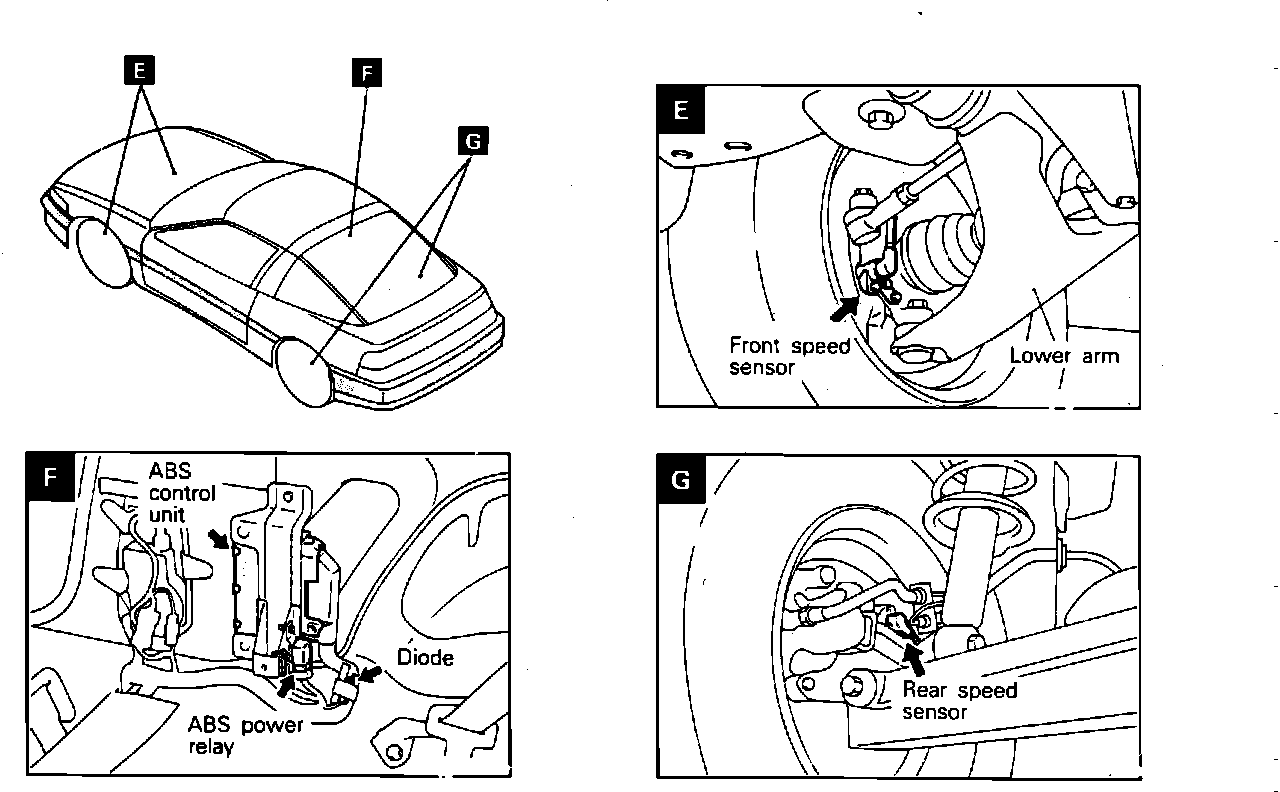

Anti-Lock Brake System Component Locations (Part 1 Of 2).:

Anti-Lock Brake System Component Locations (Part 1 Of 2).:

Behind Trim Panel, Next To RH Side Of Rear Seat

Applicable to: All Wheel Drive Models

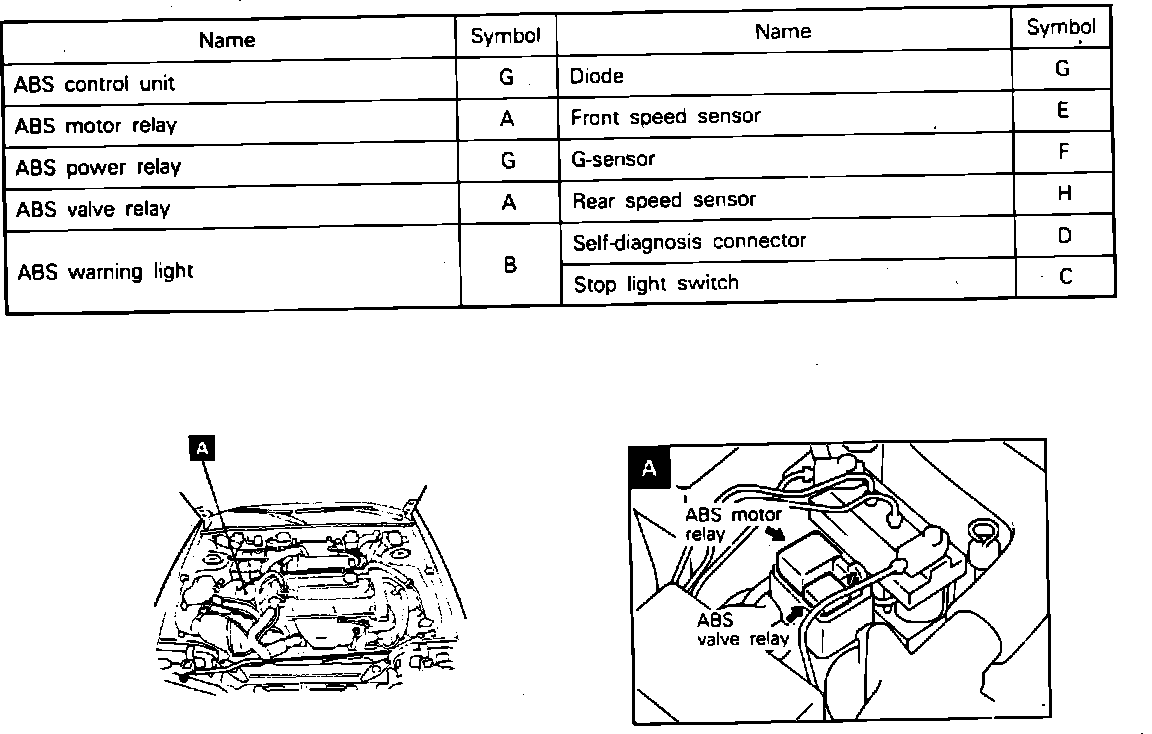

Anti-Lock Brake System Component Locations (Part 1 Of 2).:

Anti-Lock Brake System Component Locations (Part 1 Of 2).:

Behind Trim Panel, Next To RH Side Of Rear Seat

Applicable to: Front Wheel Drive Models
