EGR Temperature Sensor: Locations

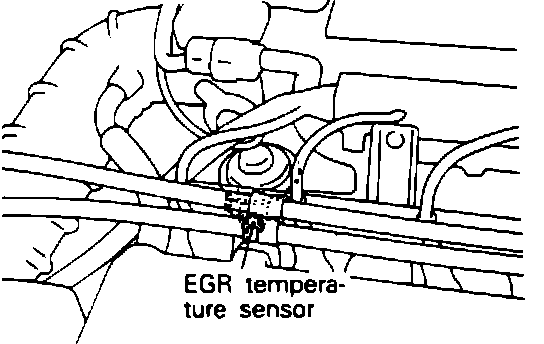

EGR Temperature Sensor Location:





Screwed into the EGR valve, on the right side of the engine.
