Purge Control Solenoid Valve Inspection

Purge Control Solenoid Valve Inspection (Leaks):

1. Mark and then disconnect the vacuum hoses (black, red striped) from the solenoid valve.
2. Disconnect the harness connector from the solenoid valve.

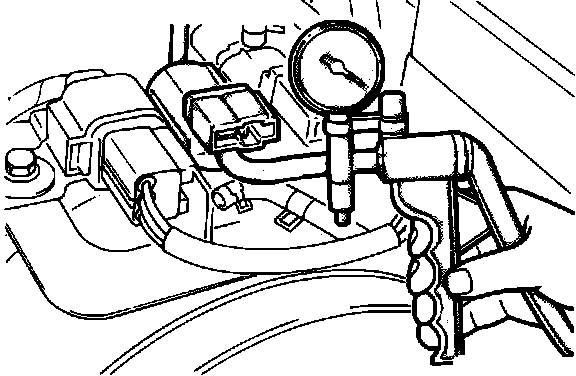

3. Connect a hand vacuum pump to the nipple the red striped hose was removed from.

Purge Control Solenoid Valve Inspection (Operation) For Turbo:

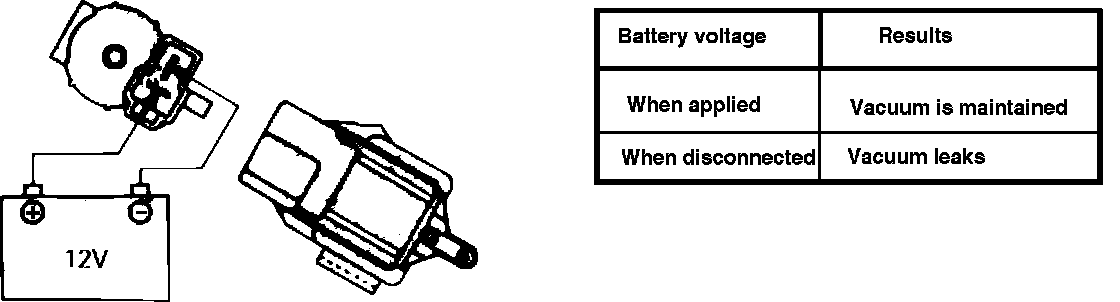

4. Apply vacuum to the solenoid valve and verify that when power is applied vacuum holds and when power is removed vacuum leaks.

Purge Control Solenoid Valve Inspection (Coil Resistance):

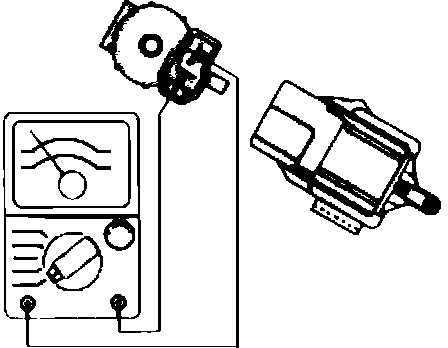

5. Using an ohm meter measure the solenoid coil resistance.

Resistance Value
36 - 44 Ohms @ 68° F (20° C).
