Purge Control Solenoid Valve

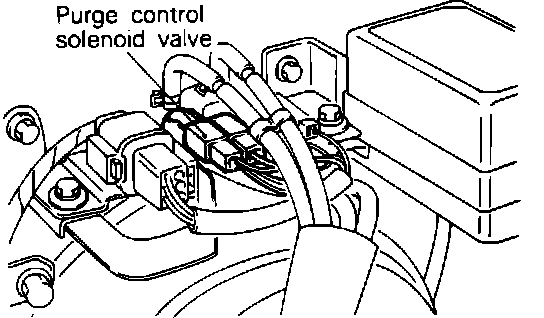

Purge Control Valve Location:

The purge control solenoid valve, located on the L.H. fender apron, is an electrically operated valve. It is controlled by the ECU and permits purging of the carbon canister. When energized, electromagnetism opens the valve, connecting a passage between the two ports.
