Canister Purge Solenoid: Locations

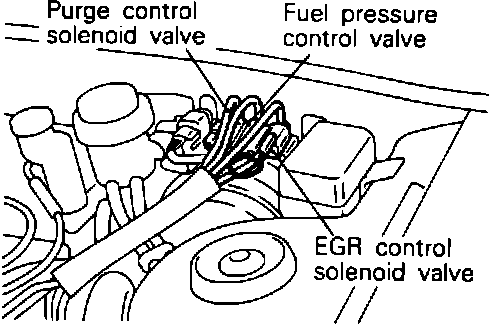

EGR, Purge And Fuel Pressure Regulator Control Solenoid Locations:





Mounted to a bracket on the firewall.
