Purge Control Solenoid Valve

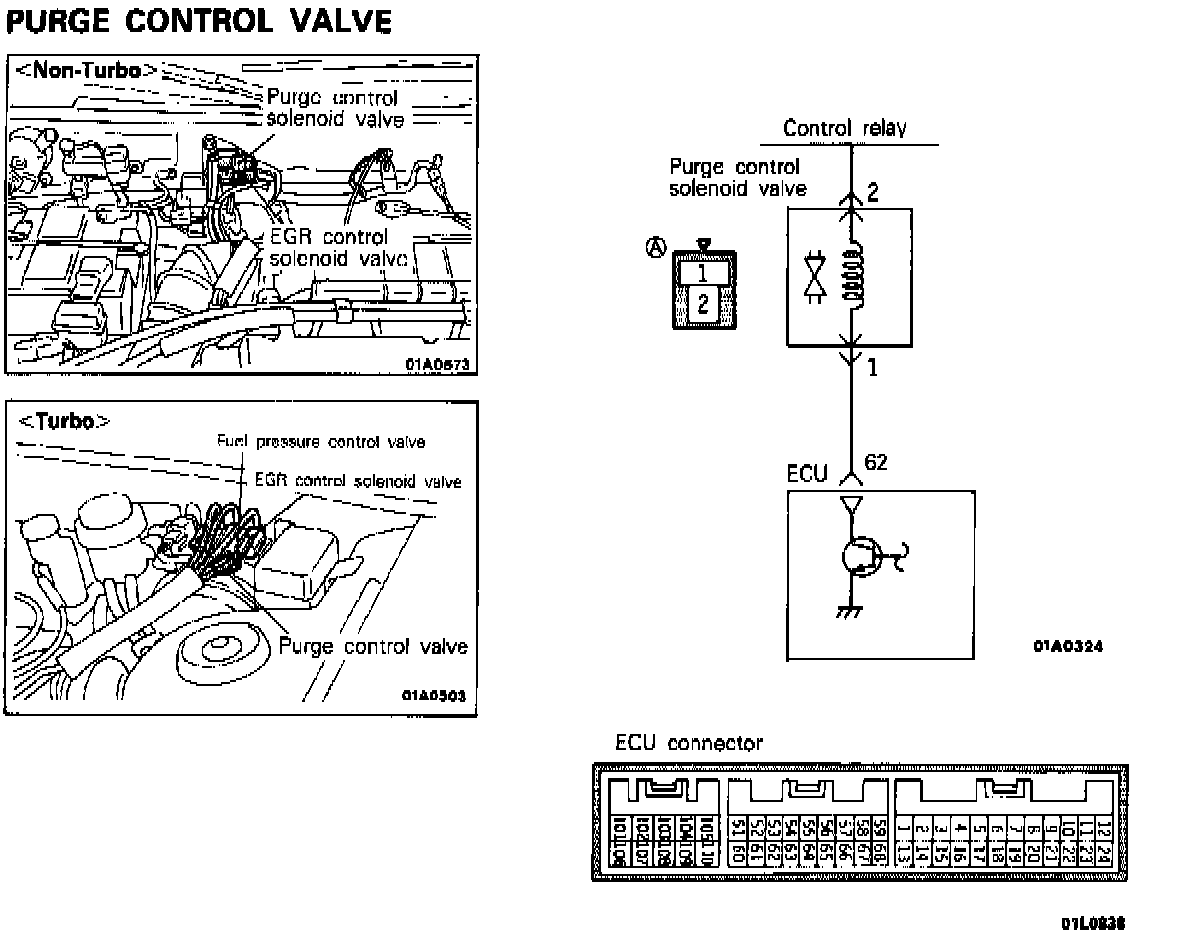

CIRCUIT DIAGRAM

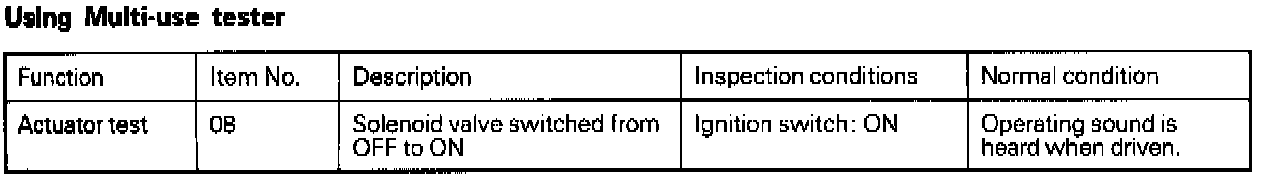

USING MULTI-USE TESTER

Steps 1-2:

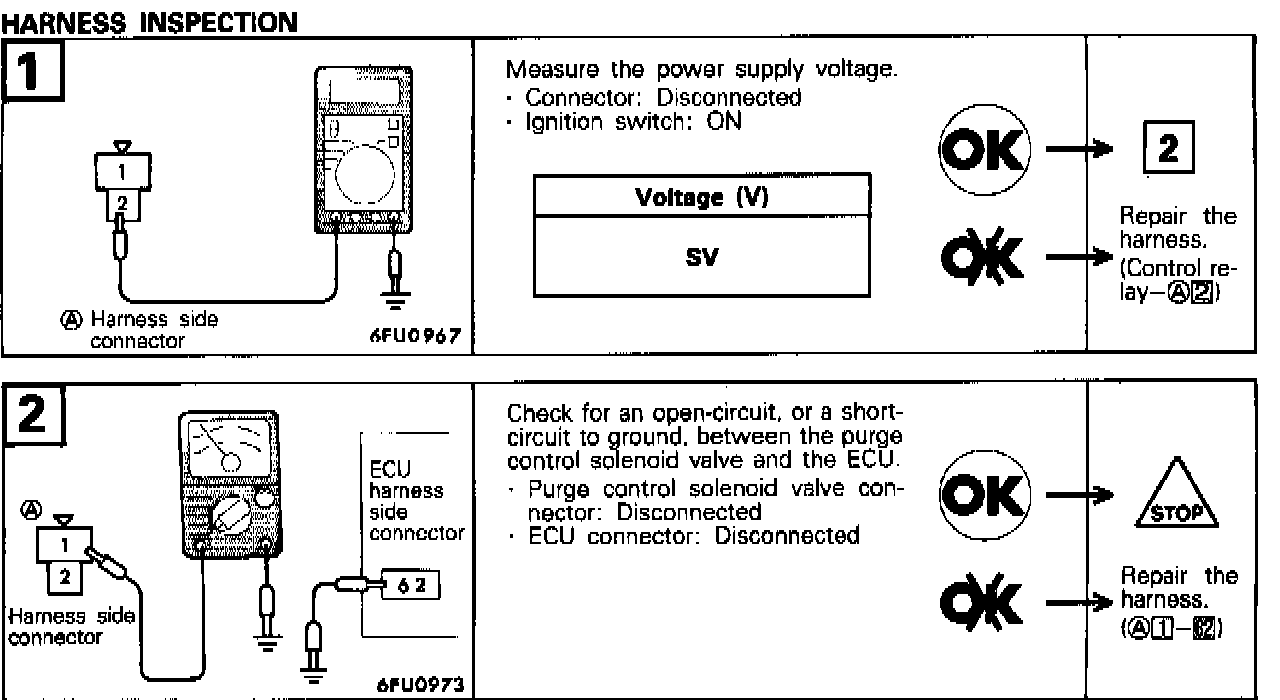

HARNESS INSPECTION



OPERATION

Non-Turbo

The purge control solenoid valve is the ON/OFF control type of solenoid valve; it functions to control the introduction of purge air to the intake air plenum from the canister.

Turbo

The purge control solenoid valve is the ON/OFF control type of solenoid valve; it functions to control the activation of the purge-control valve.
