Tools - MSN Multi-Use Tester ROM Pack Update

NO.
TSB-92-00-009

DATE
November, 1992

MODEL
See below



SUBJECT:

MSN-5 MULTI-USE TESTER ROM PACK USAGE



PURPOSE

This bulletin lists vehicles and systems that can be tested using the Multi-Use Tester ROM Pack MSN-5 (Part Number MB991466). This ROM pack can be used in place of earlier ROM packs: MSN-1, MSN-2, MSN-3, MSN-4, and HMC-2.

This information supersedes Multi-Use Tester ROM Pack references in applicable service manuals.

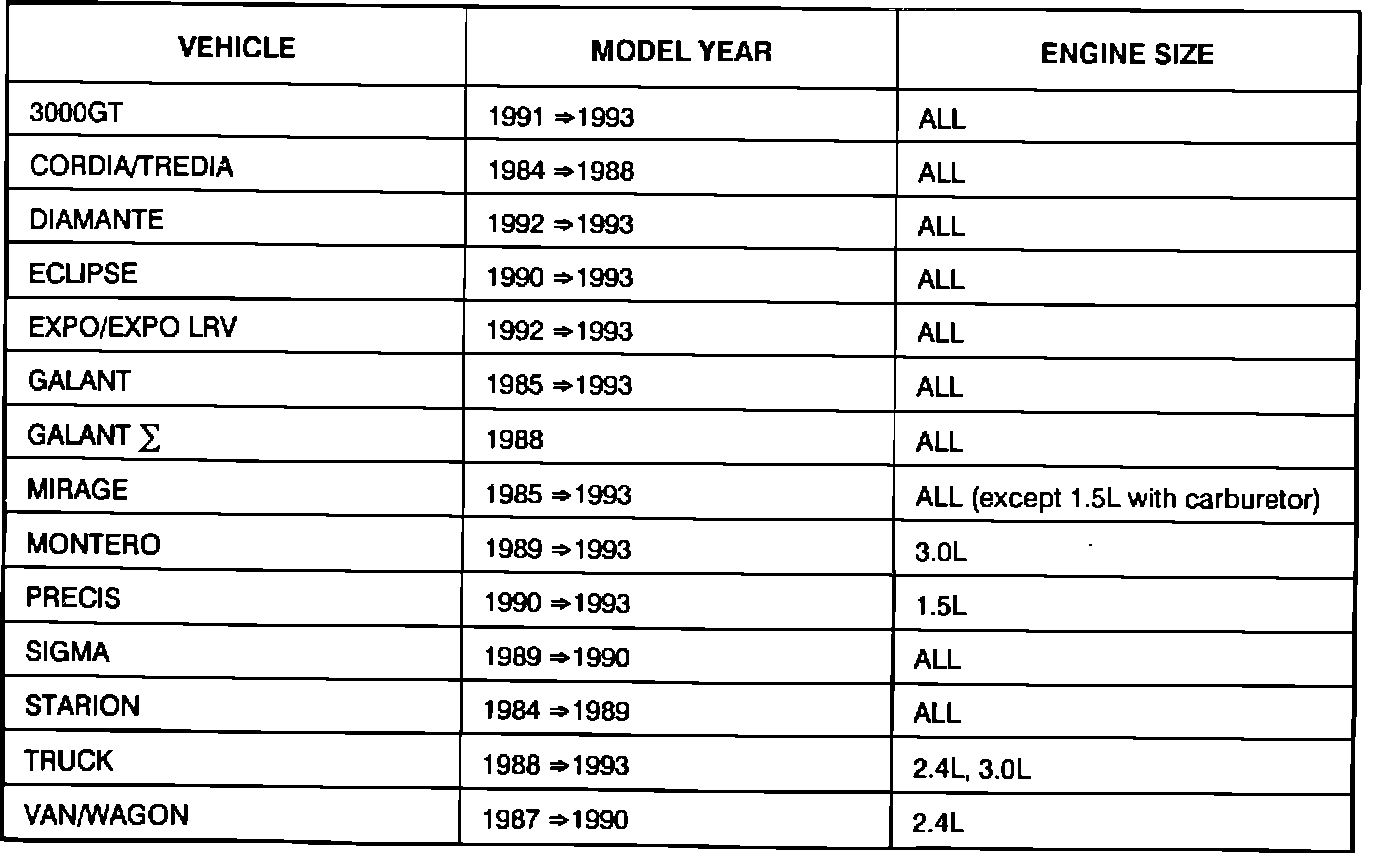

MSN-5 ROM PACK - VEHICLE APPLICATIONS

The MSN-5 ROM pack can be used on these vehicles.

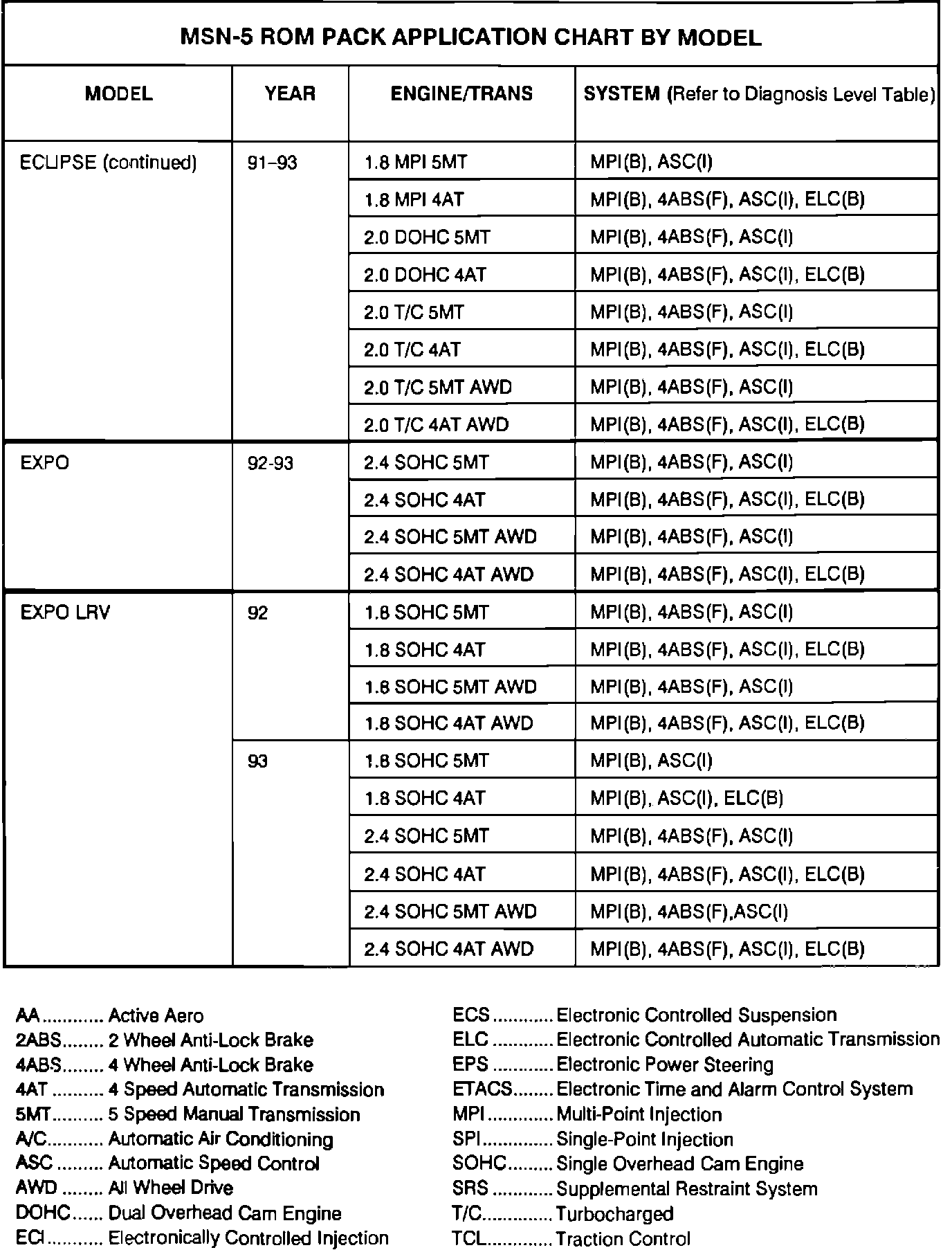

APPLICATION CHART BY MODEL: 3000 GT, CORDIA/TREDIA, DIAMANTE, DIAMANTE WAGON, ECLIPSE EXPO AND EXPO LRV

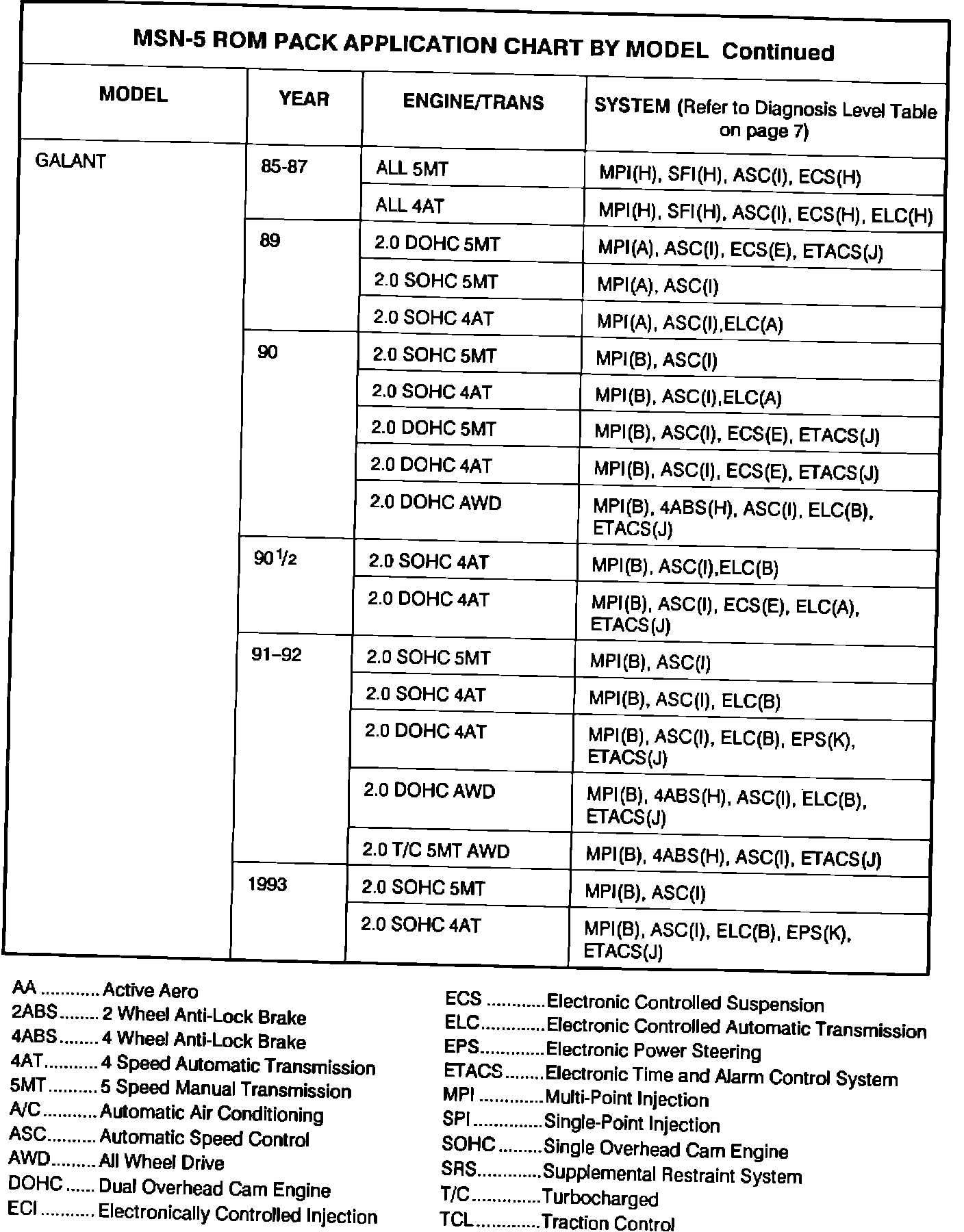

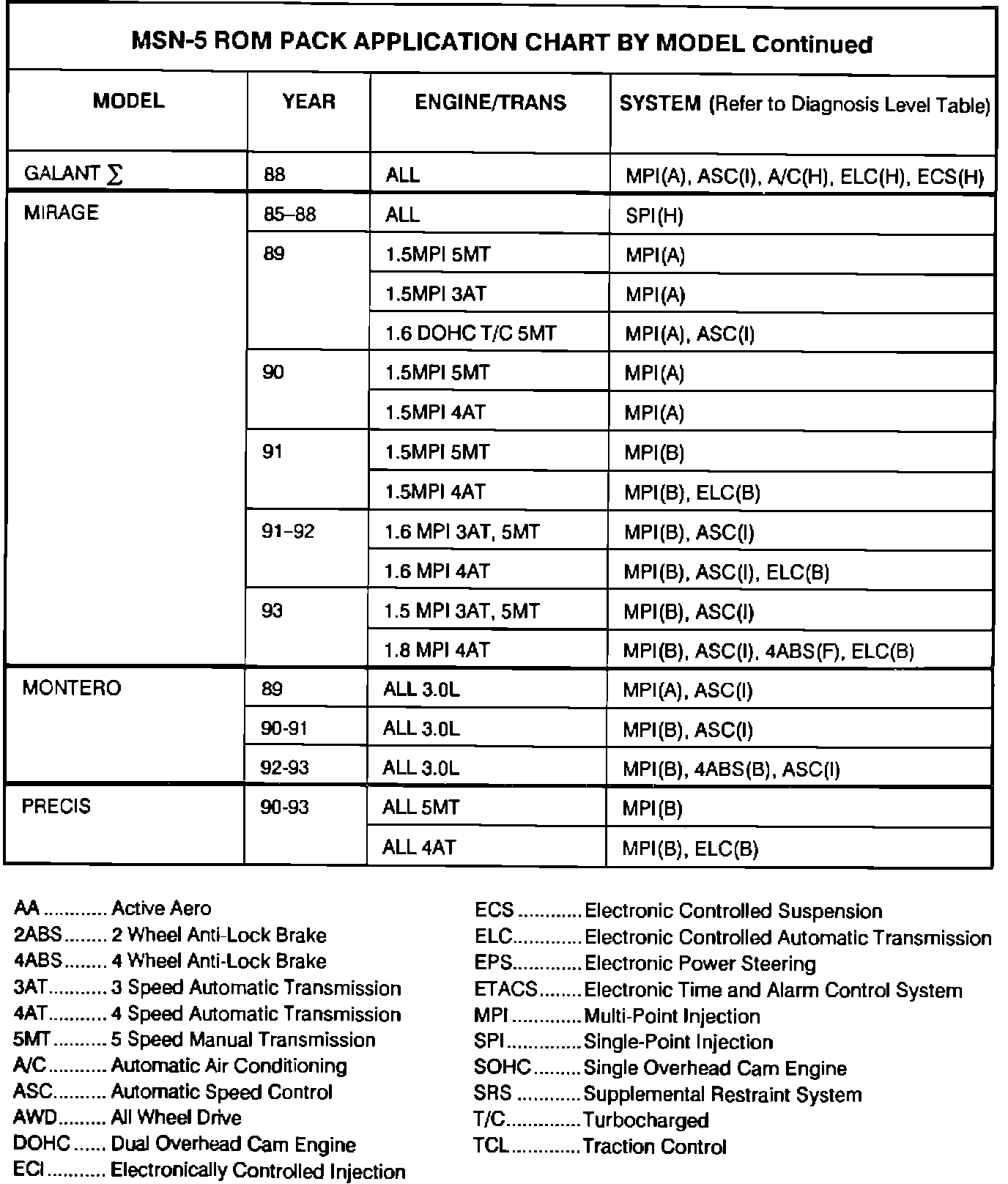

GALANT, MIRAGE, MONTERO AND PRECISE

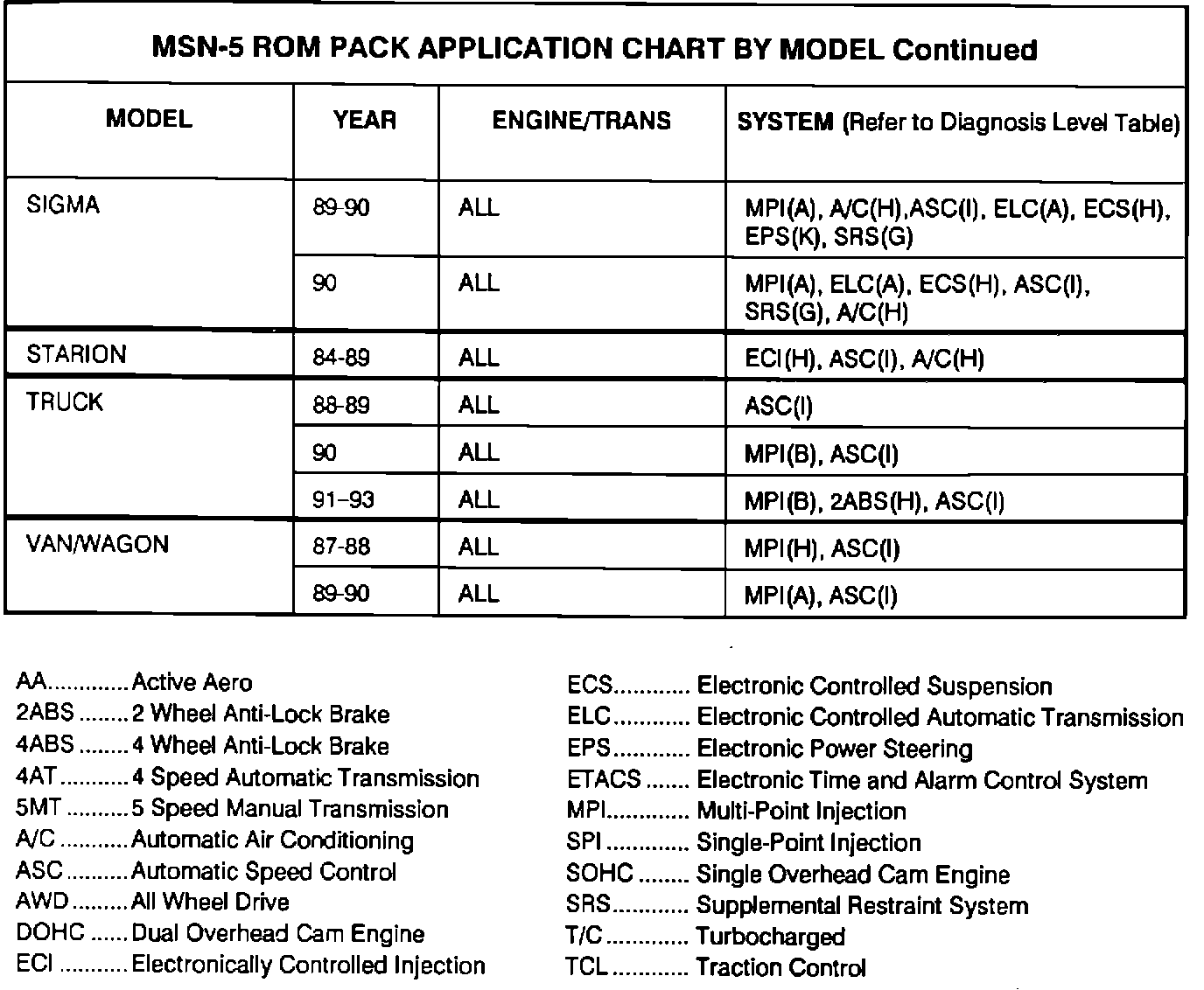

SIGMA, STARION, TRUCK AND VAN WAGON

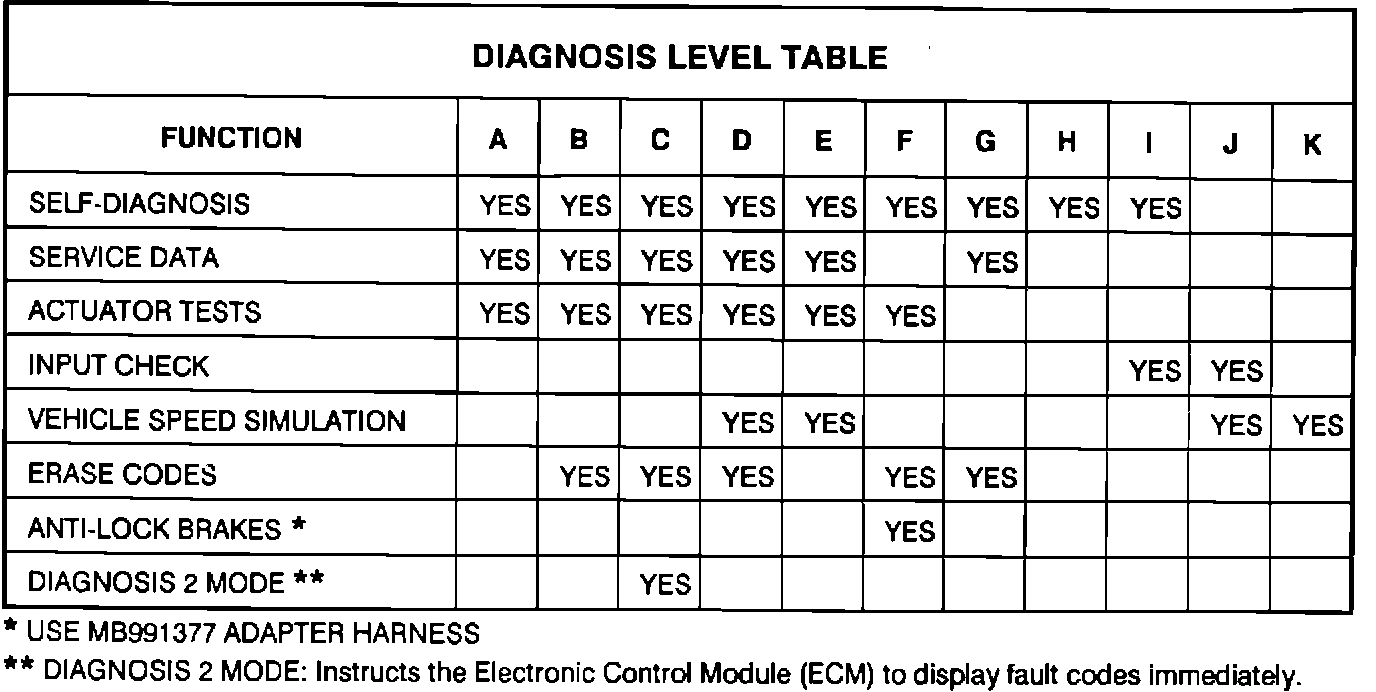

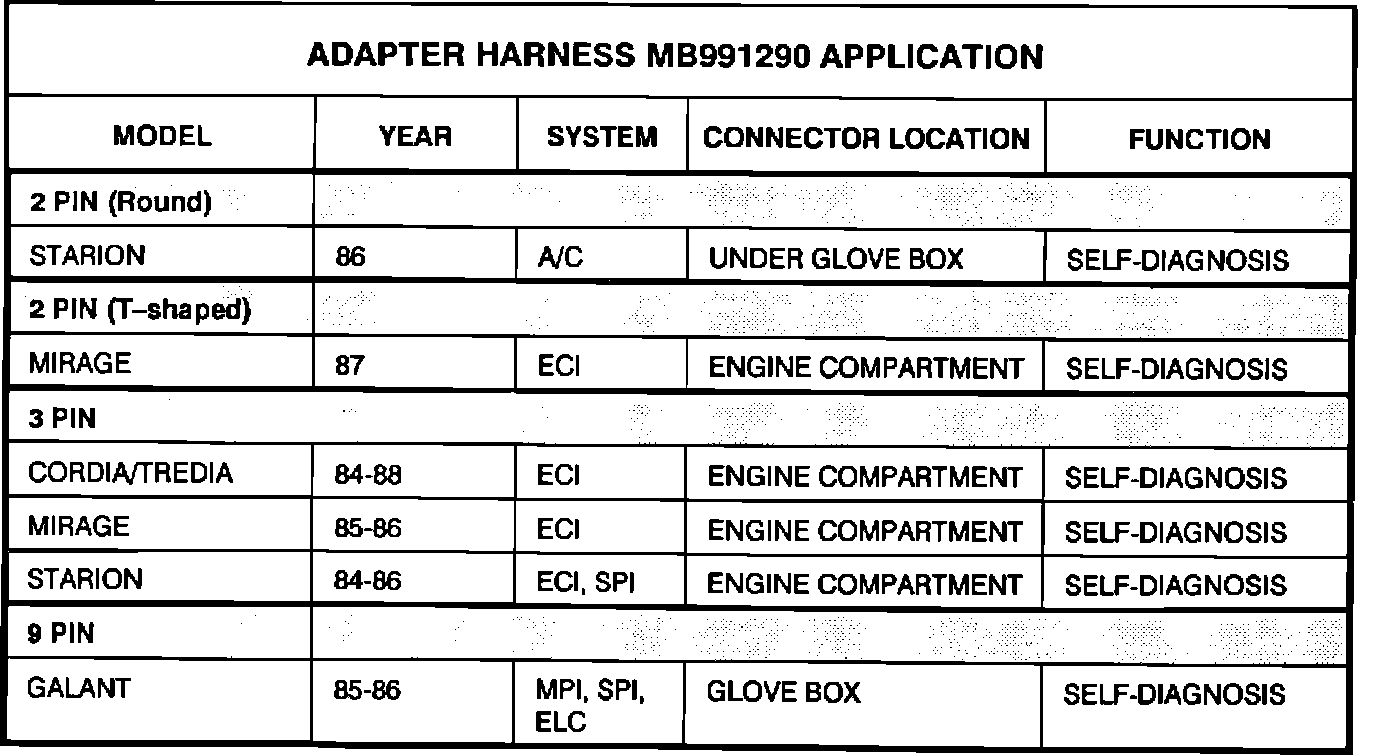

DIAGNOSIS LEVEL TABLE AND ADAPTER HARNESS MB991290 APPLICATION
