Data Link Connector: Description and Operation

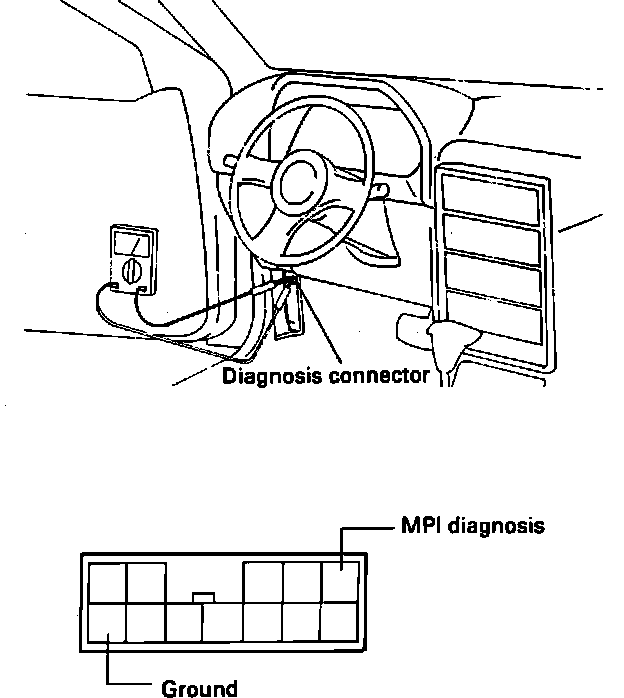

Diagnostic Connector Location:

The diagnostic check connector, located in the left kick panel, is used to extract fault code information. The complete procedures for extracting these codes is contained in DIAGNOSIS AND TESTING PROCEDURES under ON-BOARD DIAGNOSTICS.
