FWD Models

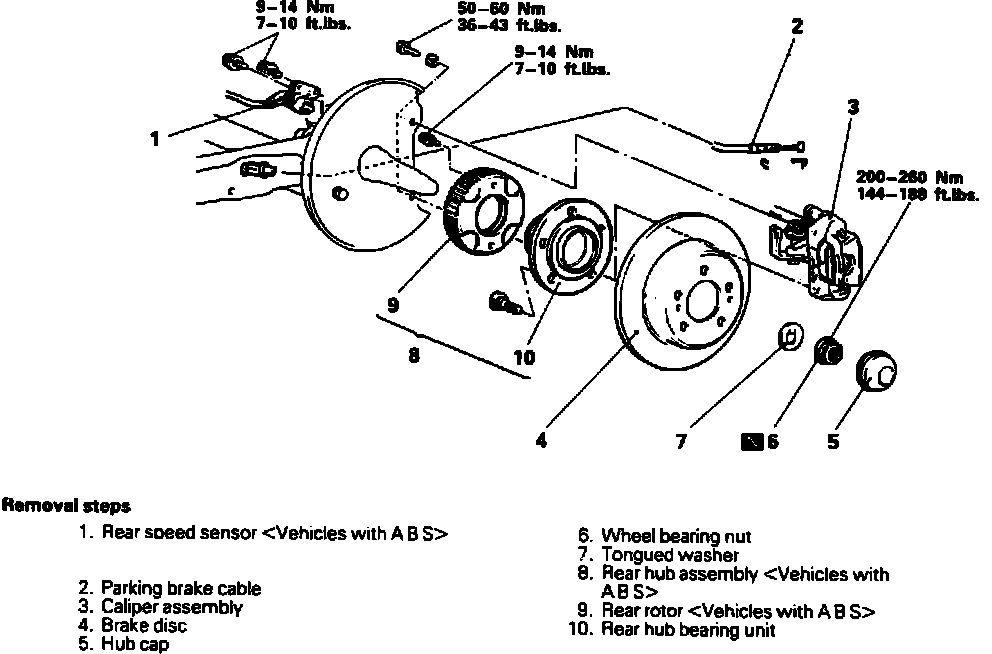

Fig. 31 Replacing Rear Axle Hub:

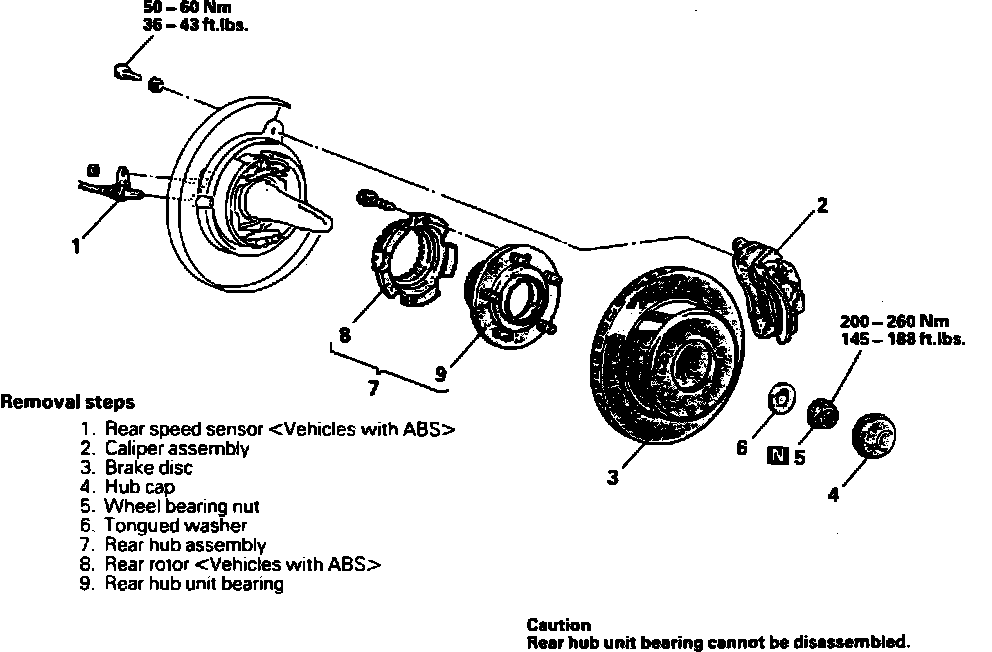

Fig. 32 Replacing Rear Axle Hub:

Replace rear axle hub assembly in numbered sequence shown in Figs. 31 and 32, noting the following:
1. Care must be used when handling the pole piece at tip of ABS speed sensor and toothed edge of rotor so as not to damage them or striking against other components.
2. Remove caliper assembly and support to frame using suitable wire.
3. Care must be taken not to scratch or scar ABS rotor's tooth surface, and not to drop it. If rotor's toothed surface is chipped or is deformed, the ABS brake system might not operate accurately.
