Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Headlight Pop-Up Controls

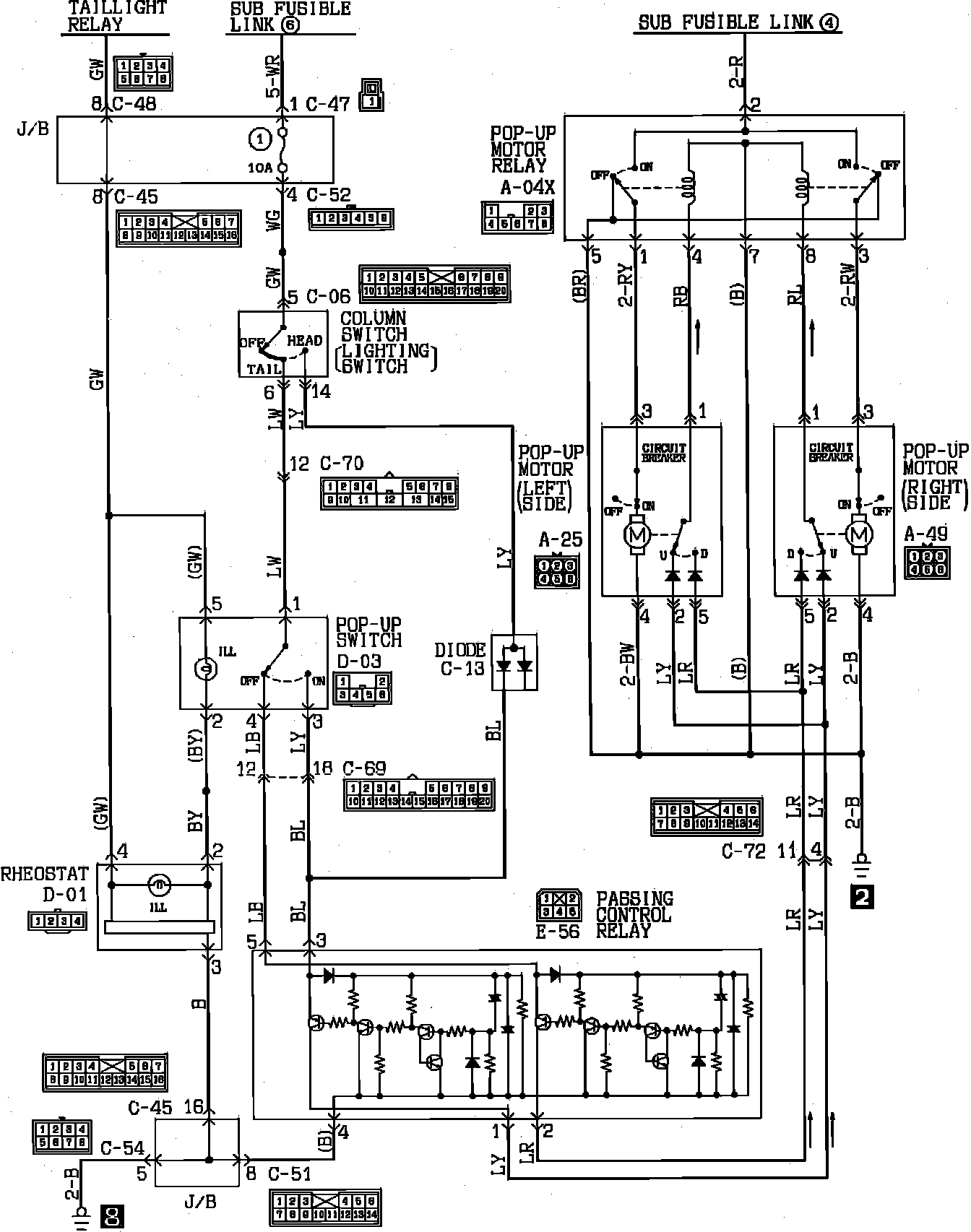

Headlight Pop-Up Controls

Pop-Up Headlamps:
