Water Pump: Service and Repair

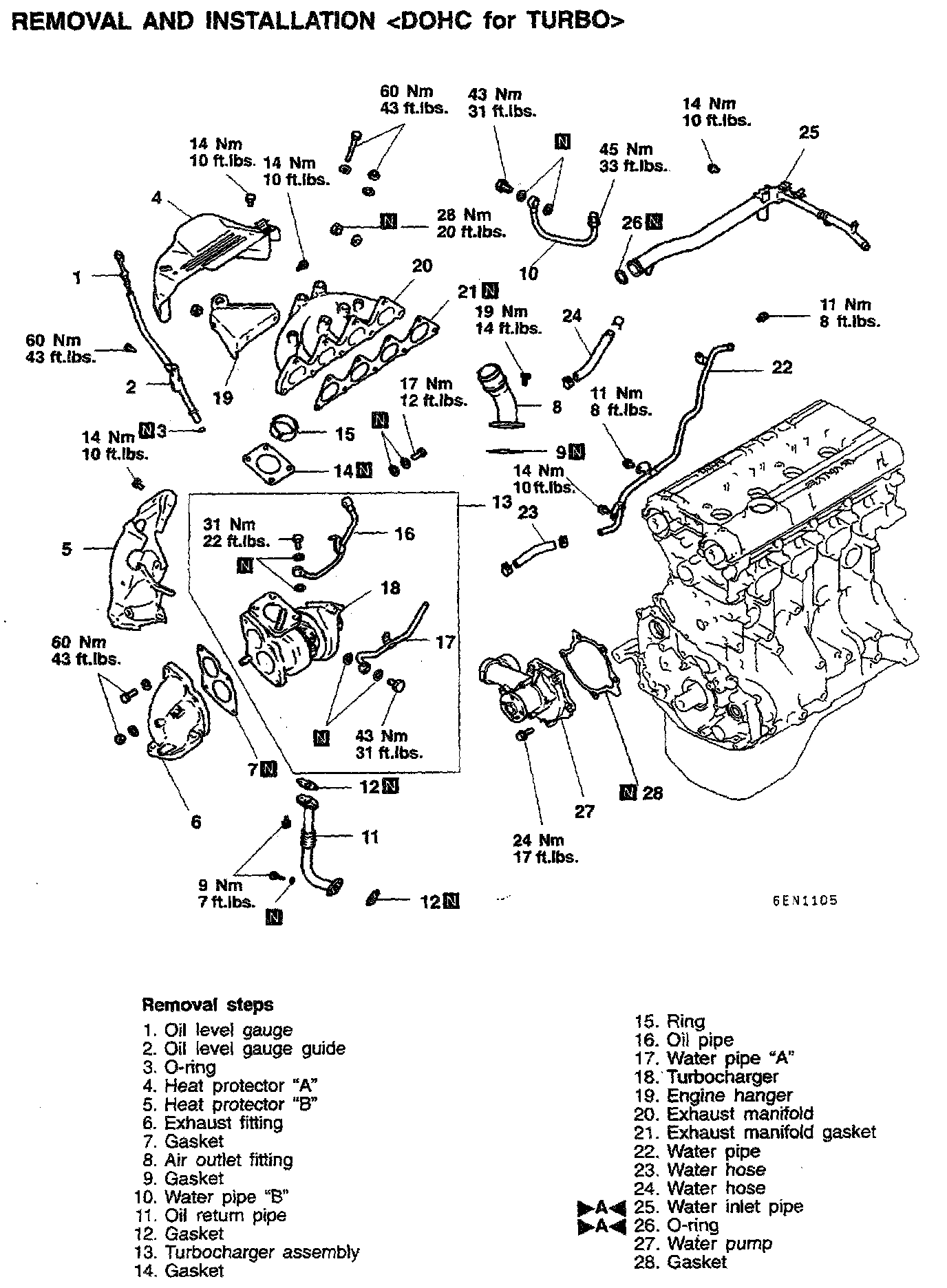

EXHAUST MANIFOLD AND WATER PUMPREMOVAL AND INSTALLATION
Removal Steps 1-28:
INSTALLATION SERVICE POINT

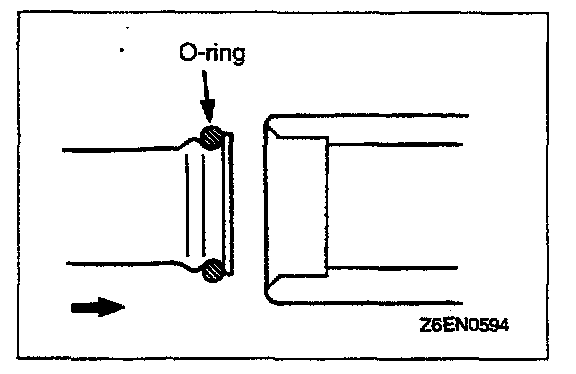

A WATER PIPE/O-RING INSTALLATION
1. Wet the O-ring (with water) to facilitate assembly.
CAUTION: Keep the O-ring free of oil or grease.
