Parts and Warranty Information
Eclipse/Galant 2.0L DOHC Timing belt: MD182291Mirage 1.6L DOHC Timing Belt: MD199418
One belt is required on each claim. The part number claimed is dependent on the vehicle which was repaired. No other parts may appear on this or other recall claim. Any other warranty eligible repairs must be claimed on a separate warranty "W" claim.
Note:
The auto tensioner replacement is not part of this campaign. All replaced tensioners will be requested to be returned to MMSA. Claims for any tensioner found to be in good working condition will be charged back to your dealership (see auto tensioner information).
WARRANTY INFORMATION
Submit as Recall Claim type "C", menu option "E-5" on your Diamond Network System. Do not submit as "W" claims.

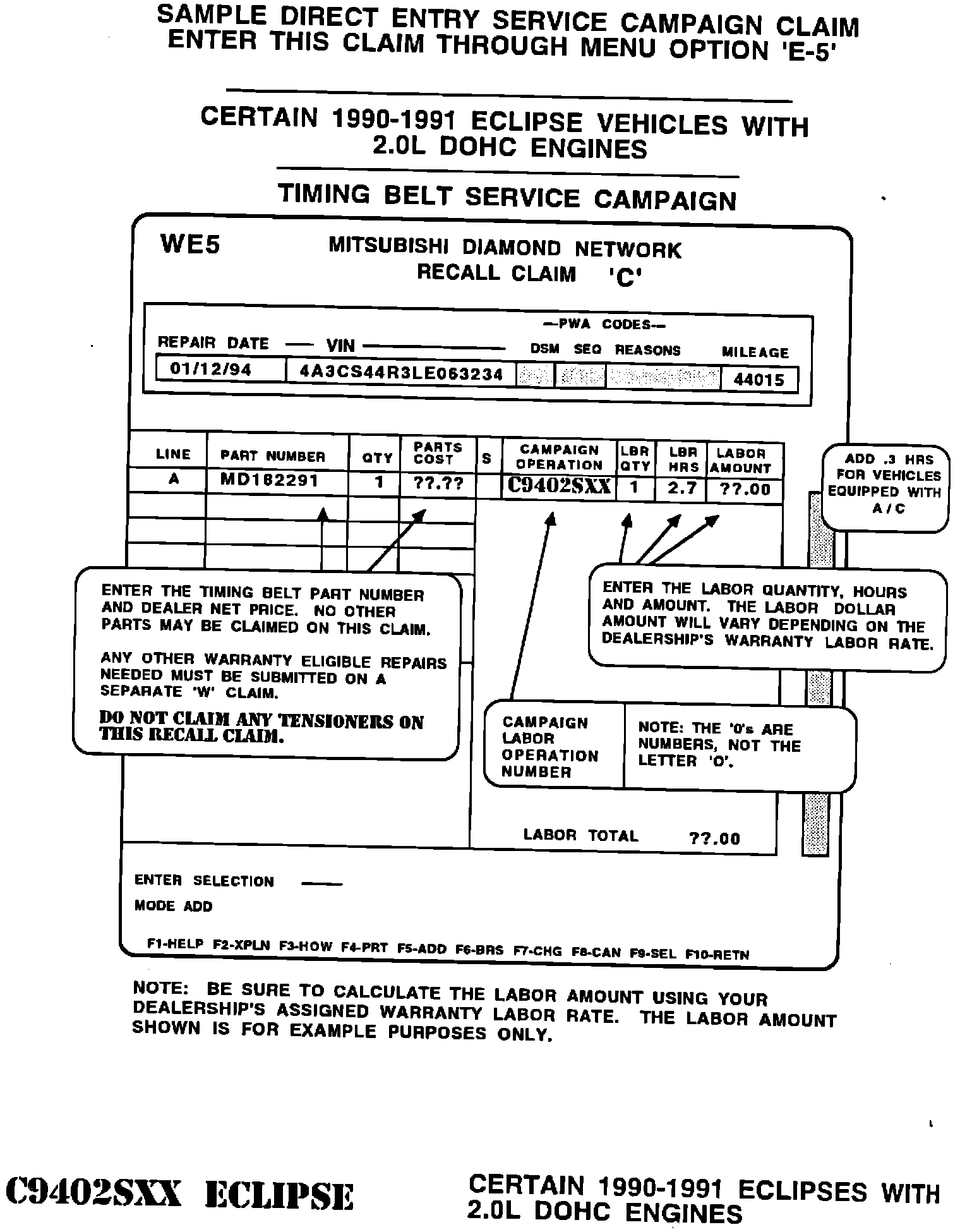

Eclipse (DSM built - VIN id = 4A) Required Operation
Labor Operation Code: C9402SXX
Time Allowance: 2.7 hr.
Add 0.3 hr. if equipped with Air Conditioning.
A sample required work claim is shown.

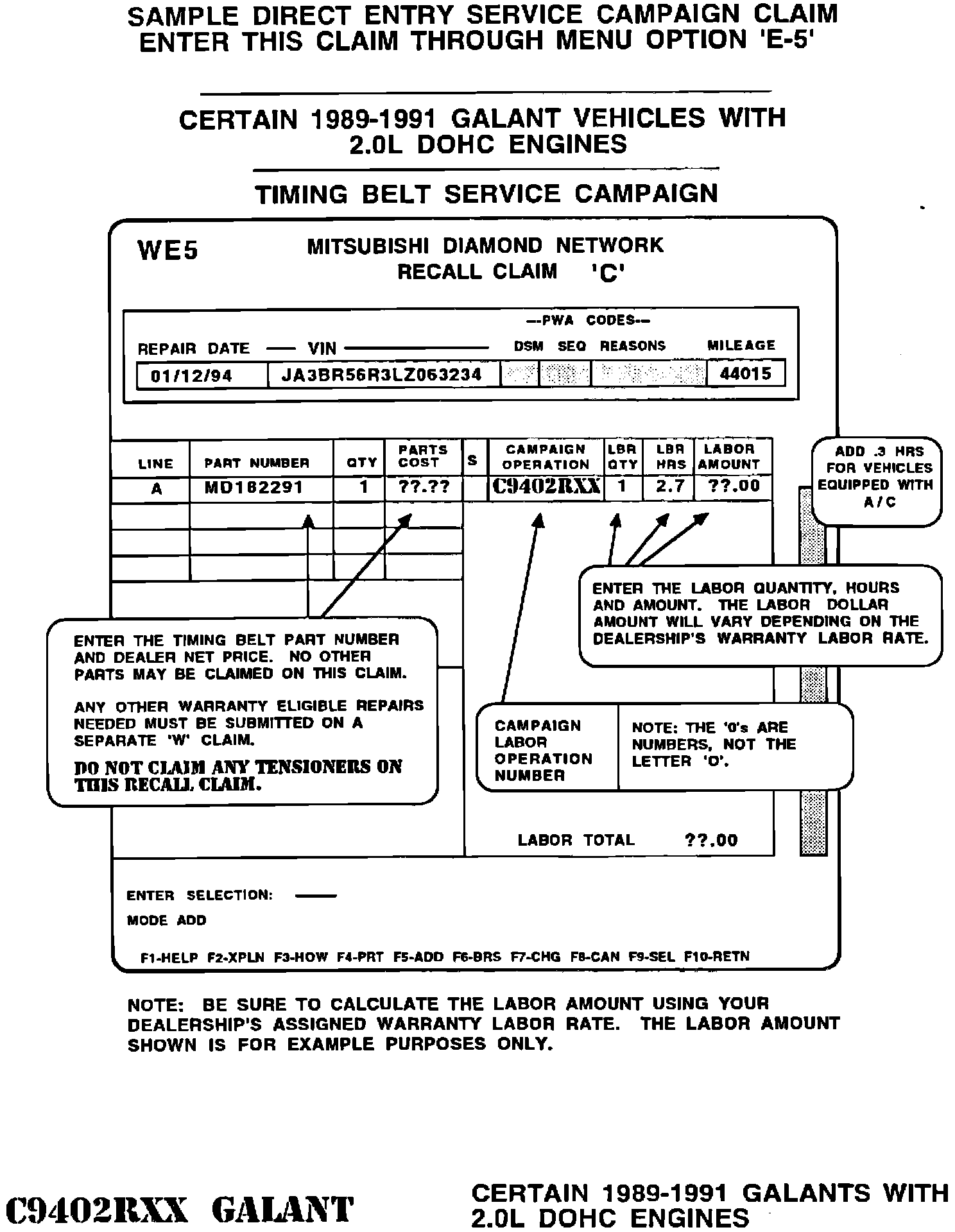

Galant (MMC built - VIN id = JA) Required Operation
Labor Operation Code: C9402RXX
Time Allowance: 2.7 hr.
Add 0.3 hr. if equipped with Air Conditioning.
A sample required work claim is shown.

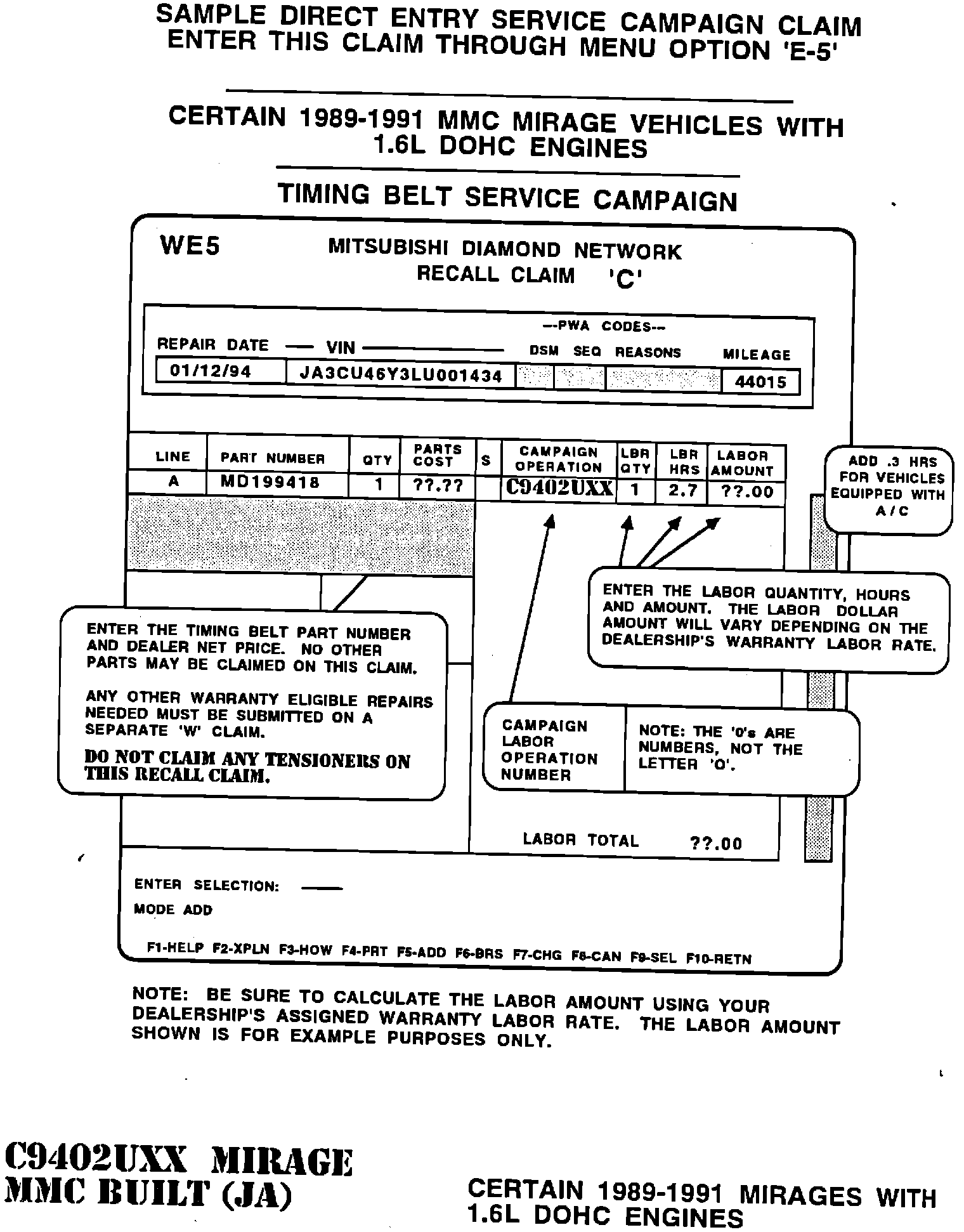

Mirage (MMC built - VIN id = JA) Required Operation
Labor Operation Code: C9402UXX
Time Allowance: 2.7 hr.
Add 0.3 hr if equipped with Air Conditioning.
A sample required work claim is shown.

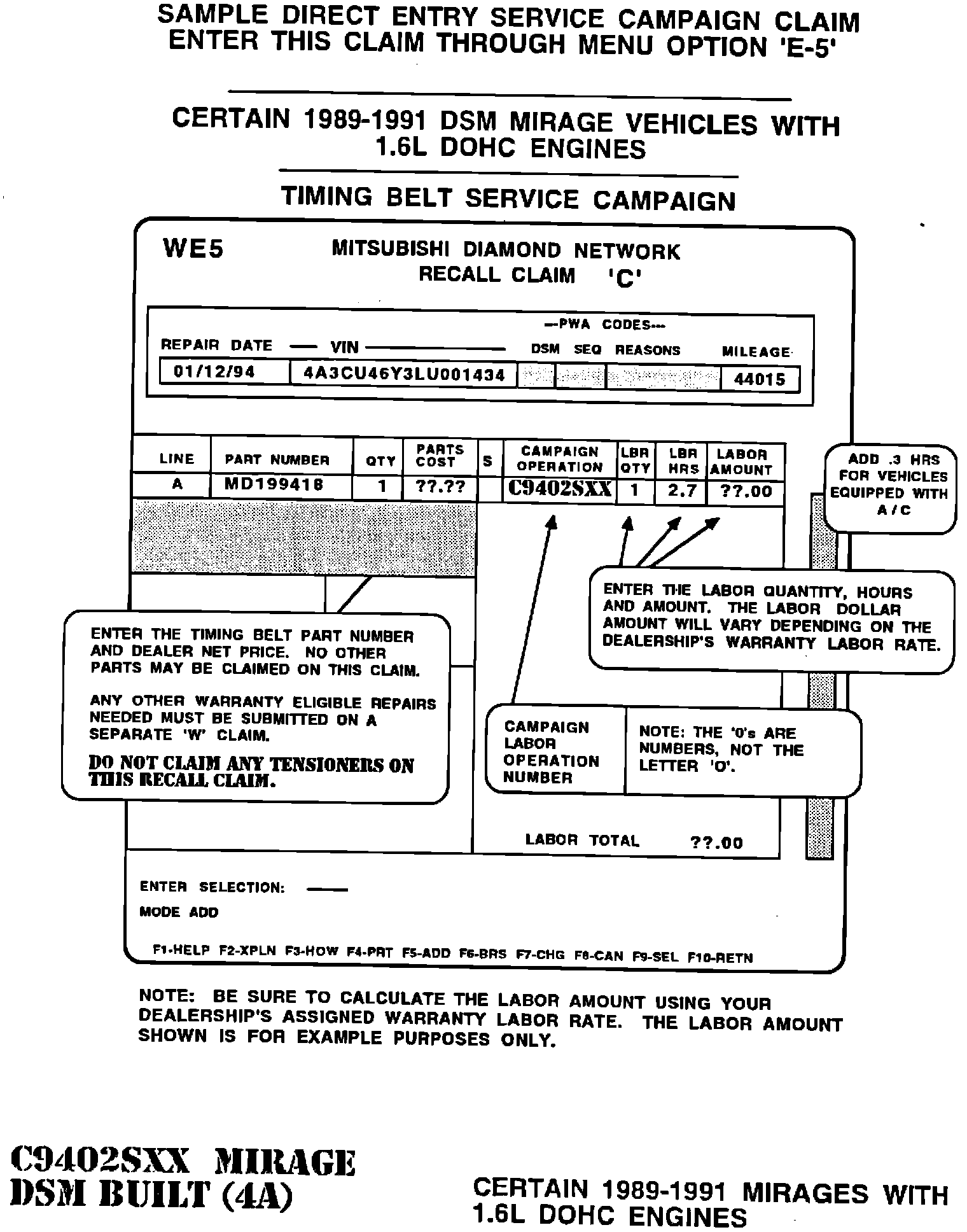

Mirage (DSM built - VIN id = 4A) Required Operation
Labor Operation Code: C9402SXX
Time Allowance: 2.7 hr.
Add 0.3 hr if equipped with Air Conditioning.
A sample required work claim is shown.
Note:
The "O" in the above labor codes is the number ZERO.
