Removal and Replacement

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

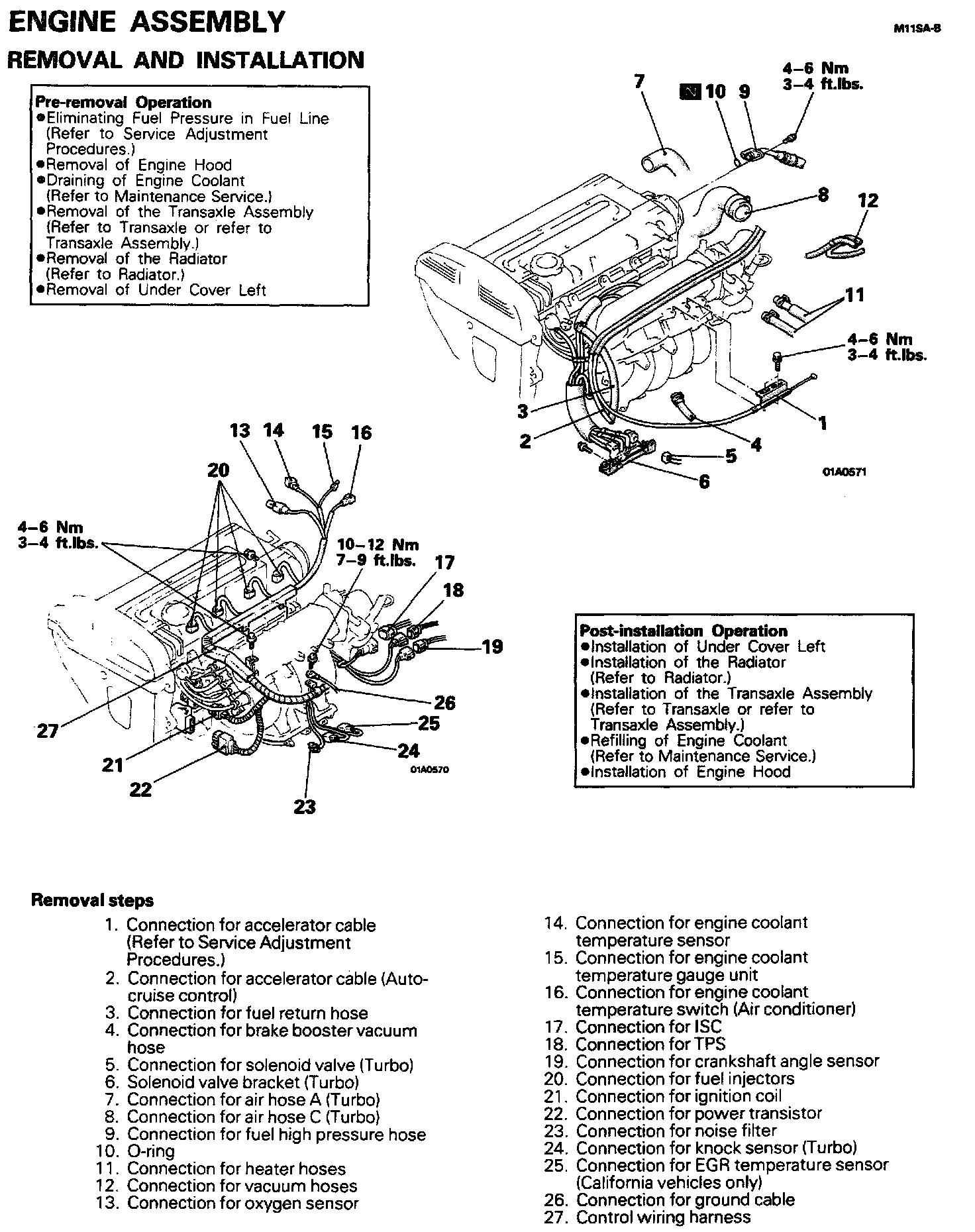

Removal Steps 1-27:

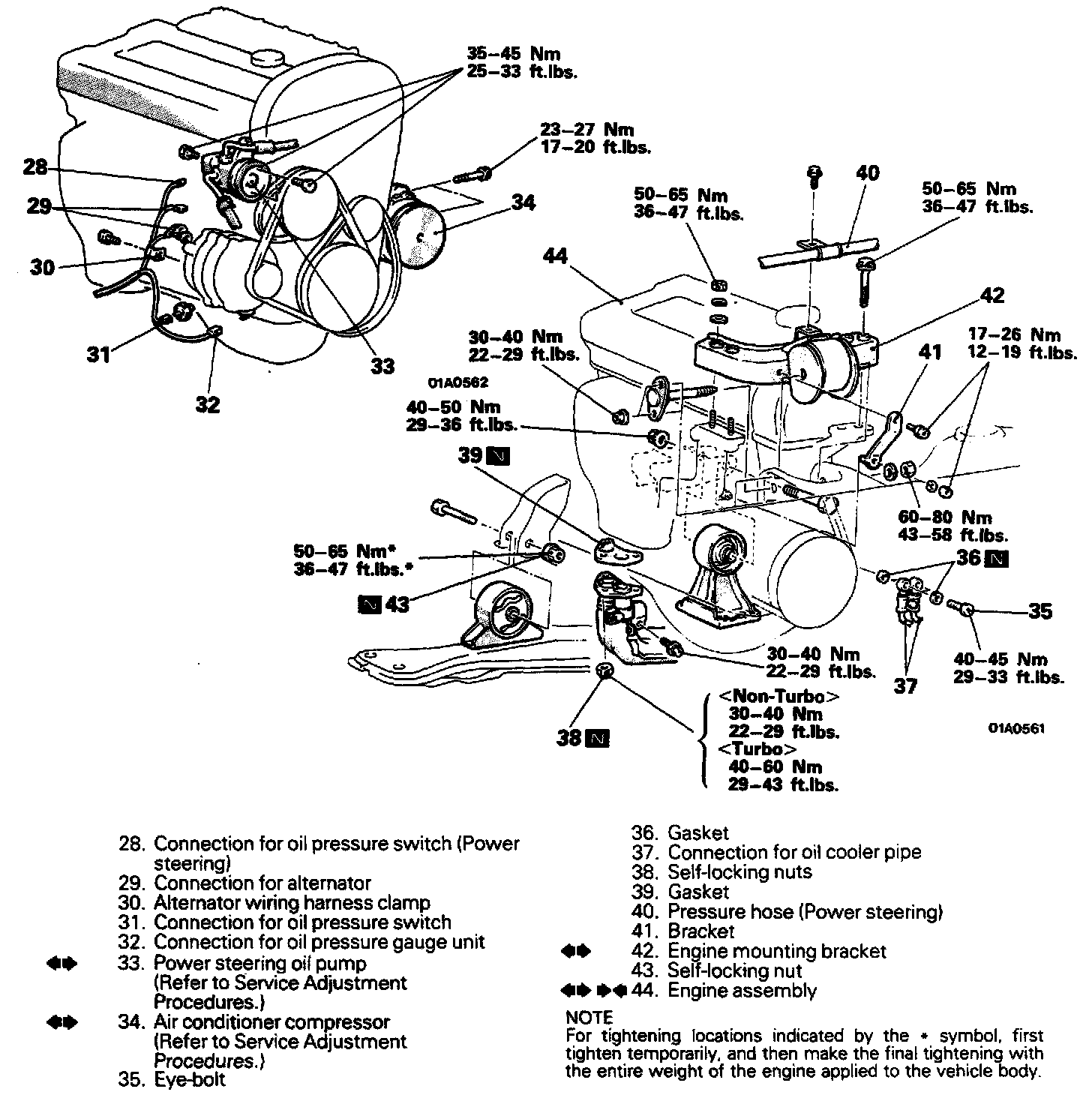

Removal Steps 28-44:

SERVICE POINTS OF REMOVAL

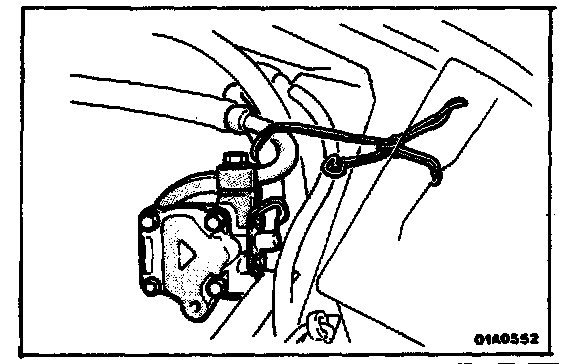

33. DISCONNECTION OF POWER STEERING OIL PUMP
Disconnect the oil pump with hoses from the bracket.

NOTE: The removed power steering oil pump should be fastened (by using rope, etc.) in a position that will not interfere with the removal/installation of the engine assembly.

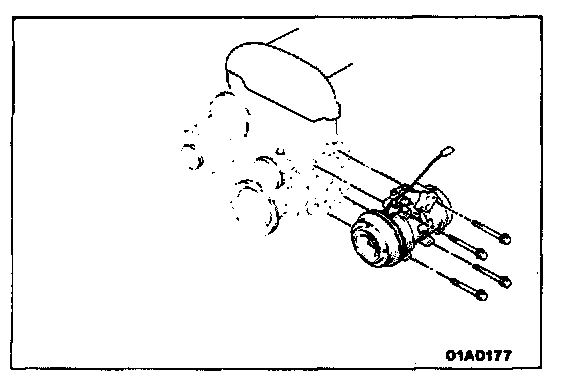

34. DISCONNECTION OF AIR CONDITIONER COMPRESSOR
Disconnect air conditioner compressor connector and remove it with hoses from the compressor bracket.

NOTE: The removed air conditioner compressor should be fastened (by using rope, etc.) in a position that will not interfere with the removal/installation of the engine assembly.




42. DISCONNECTION OF ENGINE MOUNT BRACKET

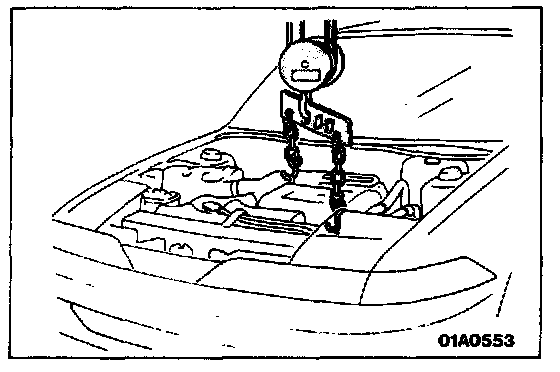

Before removing the engine mount bracket installation bolt, use a chain block or similar arrangement to suspend the engine assembly (to the extent that there is no looseness of the chain).

44. DISCONNECTION OF ENGINE ASSEMBLY
After checking that the cables, hoses, harness connectors, etc. are all removed, slowly raise the chain block to lift the engine assembly upward out of the engine compartment.

SERVICE POINTS OF INSTALLATION

44. INSTALLATION OF ENGINE ASSEMBLY
When mounting the engine, check to be sure that the cables, hoses, harness connectors, etc. are all in the correct position.
