Exhaust Manifold and Water Pump

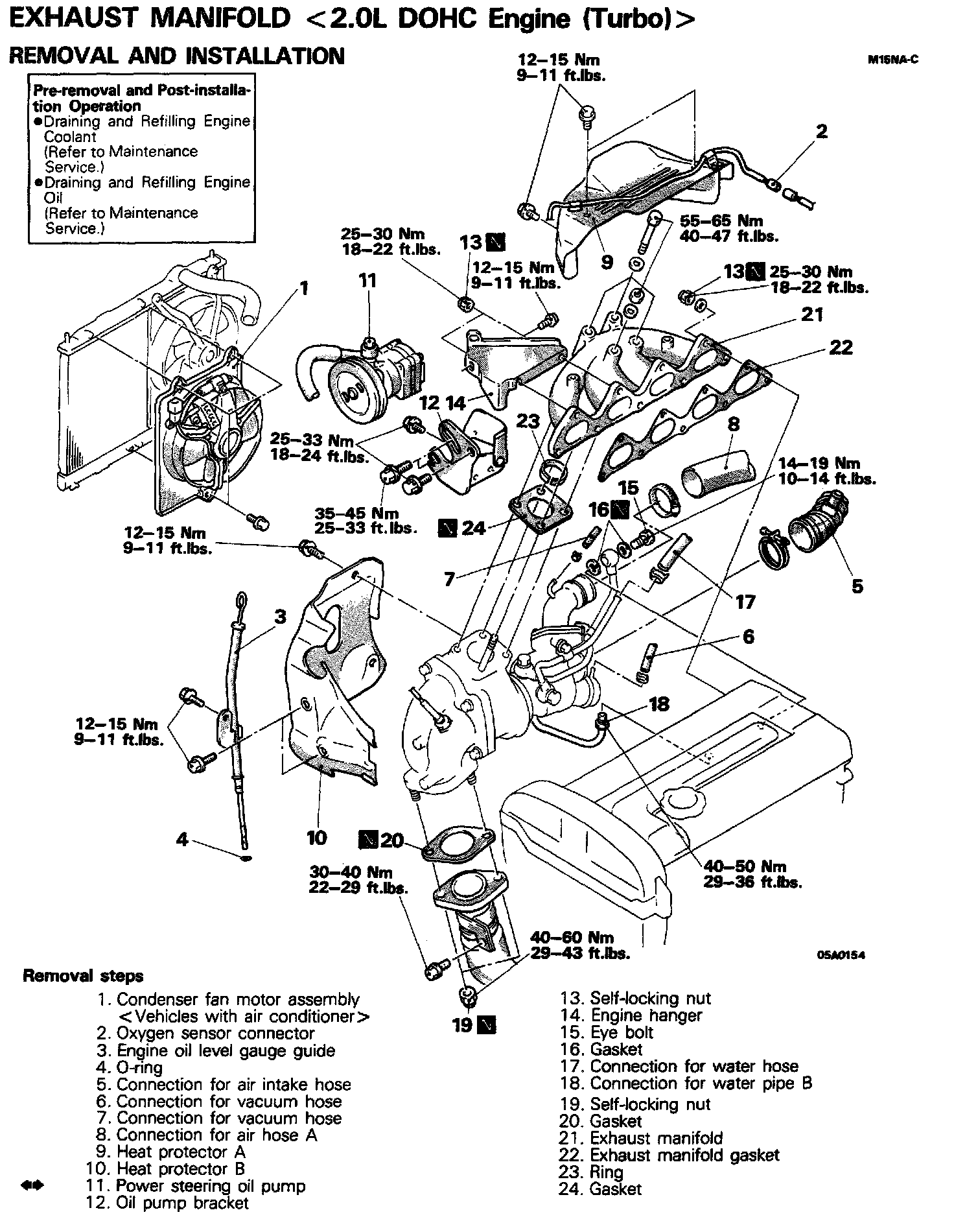

EXHAUST MANIFOLD - 2.0L DOHC Engine (Turbo)

REMOVAL AND INSTALLATION

Removal Steps 1-24:

SERVICE POINTS OF REMOVAL

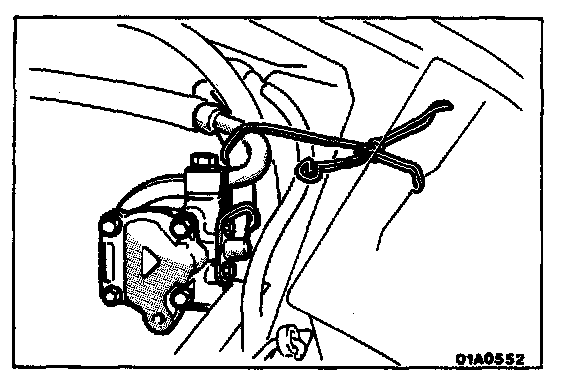

11. DISCONNECTION OF POWER STEERING OIL PUMP
Disconnect the oil pump with hoses from the bracket.

NOTE: The removed power steering oil pump should be fastened (by using rope, etc.) in a position that will not interfere with the removal/installation of the exhaust manifold.

INSPECTION
Check the following points; replace the part if a problem is found.

EXHAUST MANIFOLD
Check for damage or cracking of any part.

EXHAUST MANIFOLD GASKET
Check for flaking or damage of the gasket.
