Intake Manifold: Service and Repair
INTAKE MANIFOLDREMOVAL AND INSTALLATION

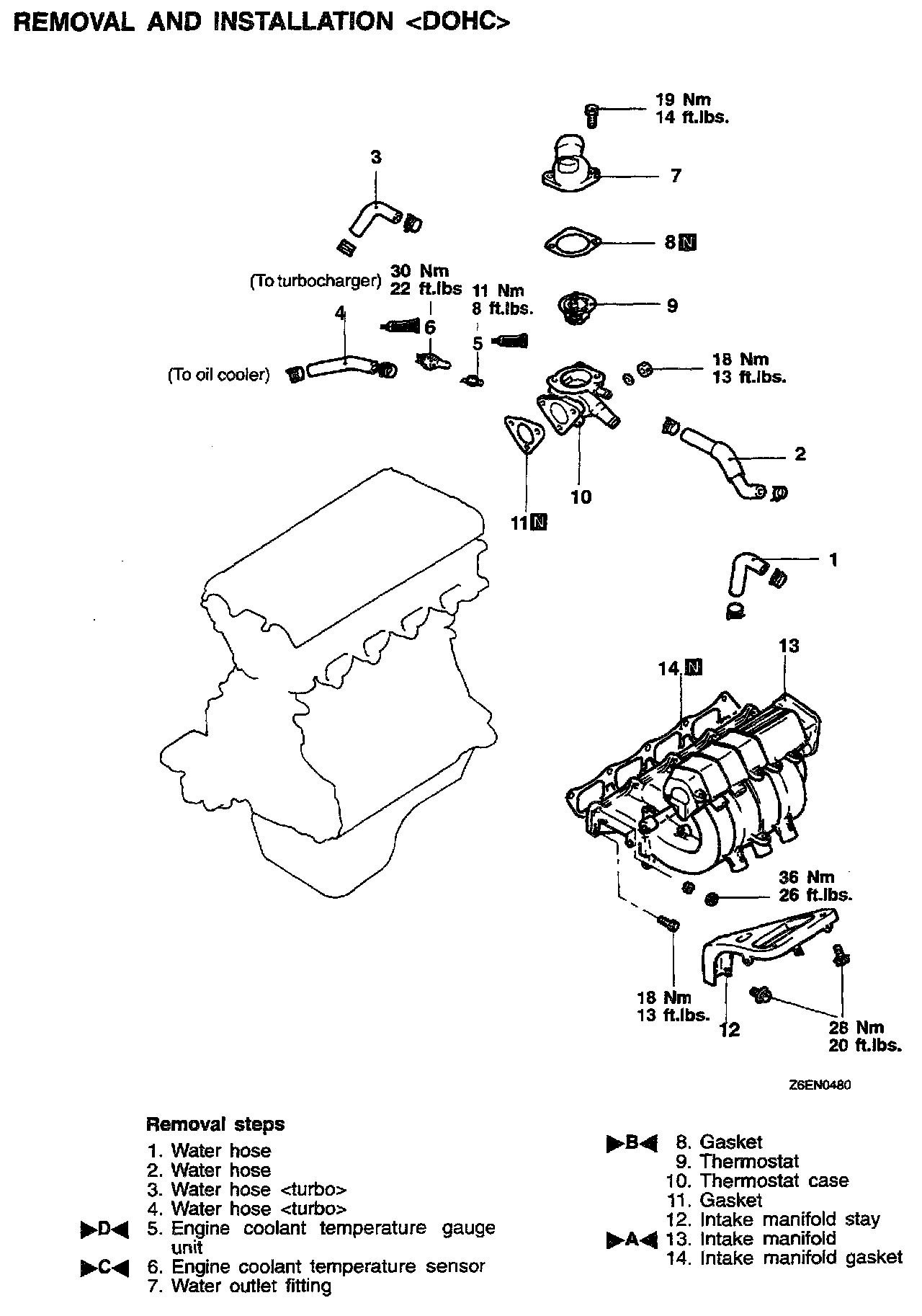

Removal Steps 1-14:
INSTALLATION SERVICE POINTS
A INTAKE MANIFOLD INSTALLATION (DOHC)

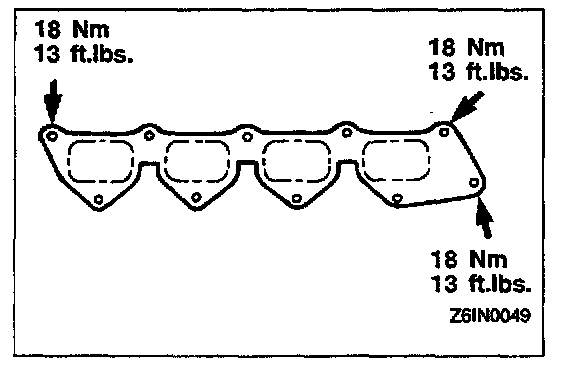

1. Tighten the intake manifold bolts. Note that the bolts installed at the locations indicated in the illustration are tightened to a different torque.
B WATER OUTLET FITTING GASKET INSTALLATION (FOR RUBBER COATED METAL GASKET ONLY)
1. Install the water outlet fitting gasket with its "UP" mark facing up (toward the water outlet fitting side).

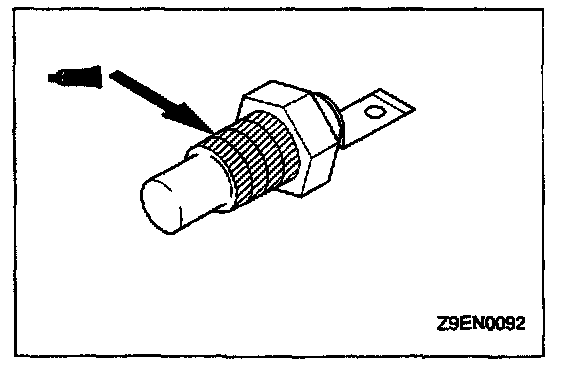

C SEALANT APPLICATION TO ENGINE COOLANT TEMPERATURE SENSOR
Specified sealant: 3M Nut Locking Part No.4171 or equivalent

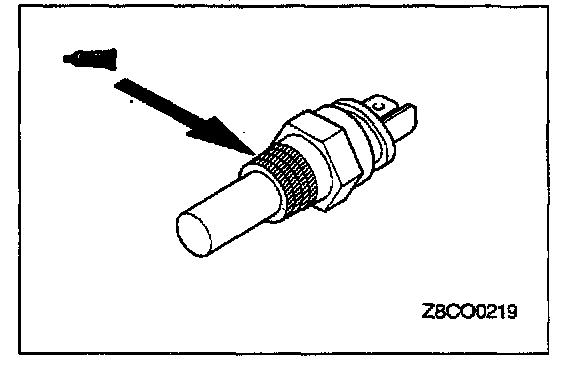

D SEALANT APPLICATION TO ENGINE COOLANT TEMPERATURE GAUGE UNIT
Specified sealant: 3M ATD Part No.8660 or equivalent
