Oil Pan: Service and Repair

OIL PAN AND OIL SCREEN

REMOVAL AND INSTALLATION

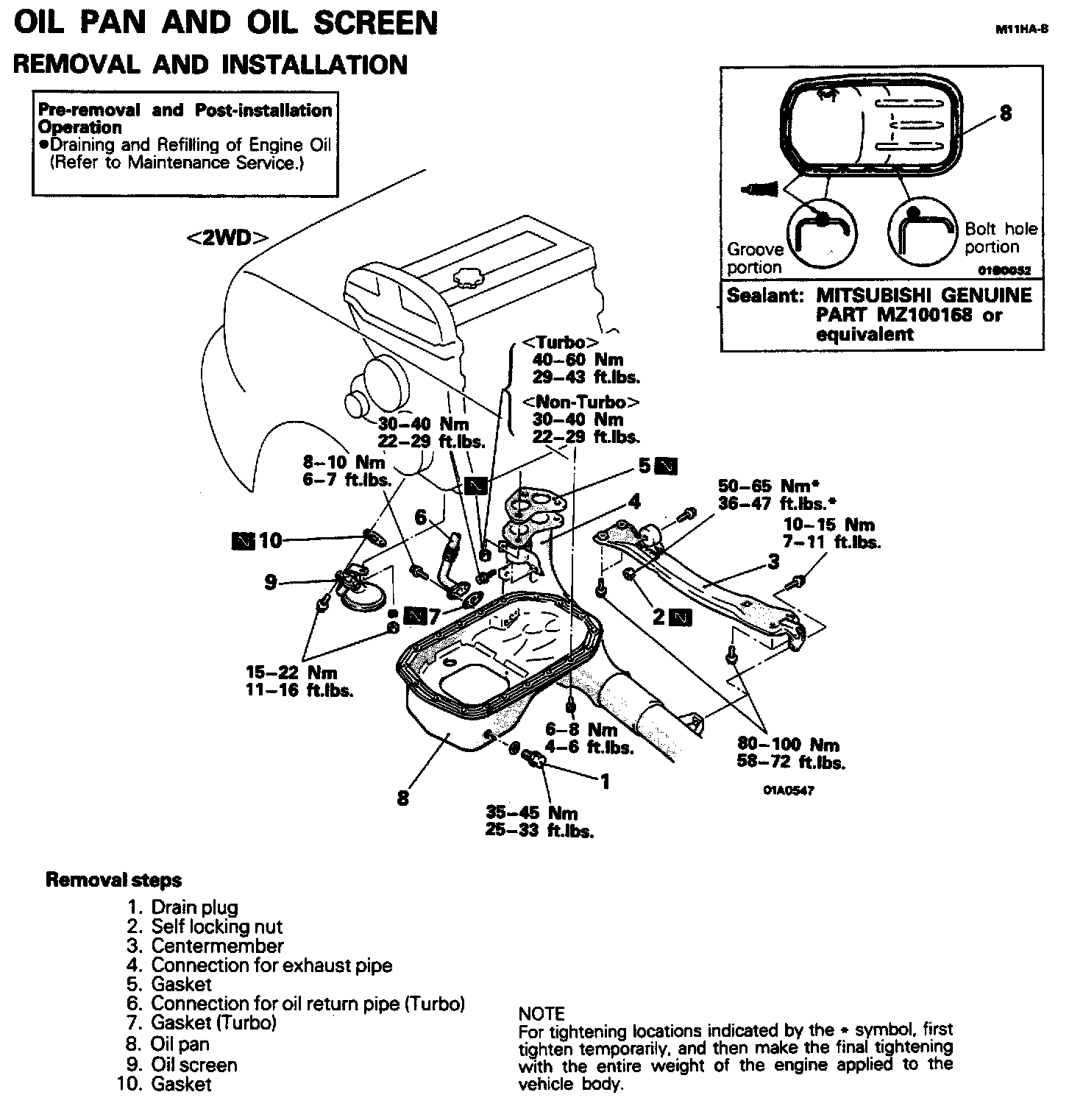

(2WD) Removal Steps 1-10:

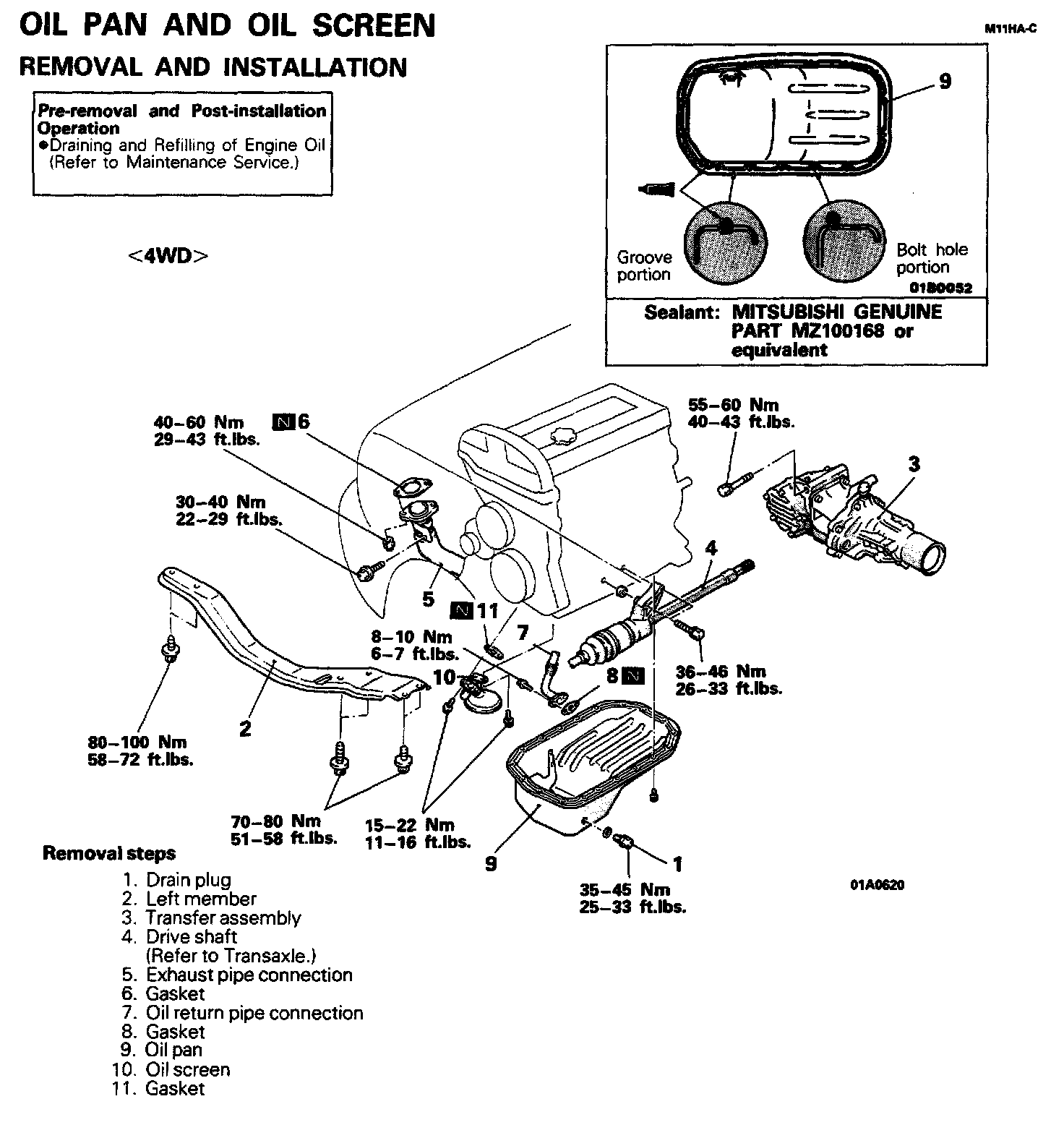

(4WD) Removal Steps 1-11:

INSPECTION
- Check the oil pan for damage and cracks. Replace if faulty.
- Check the oil screen for clogging; damage and cracks.
Replace if faulty.
