Oil Cooler: Service and Repair

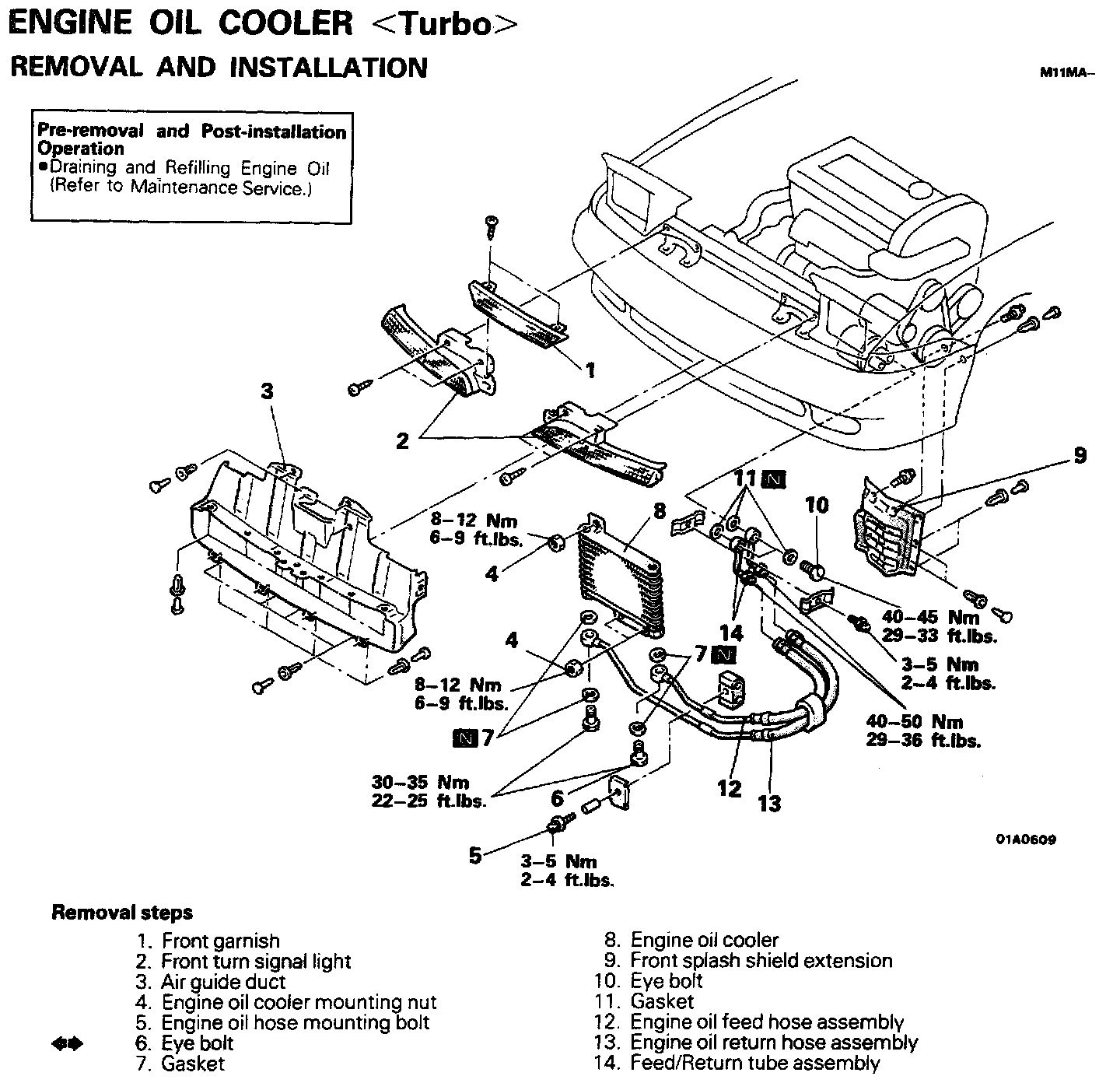

ENGINE OIL COOLER

REMOVAL AND INSTALLATION

Removal Steps 1-14:

SERVICE POINTS OF REMOVAL

6. EYE BOLT

CAUTION: Be sure to hold the weld nut of the oil cooler while loosening the eye bolt.

INSPECTION
- Check the engine oil cooler fins for bends, breaks or plugs.
- Check the engine oil cooler hoses for cracks, damage, clogging or deterioration.
- Check the gaskets for damage or deformation.
