Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> With Alarm >> Automatic Transaxle

Automatic Transaxle

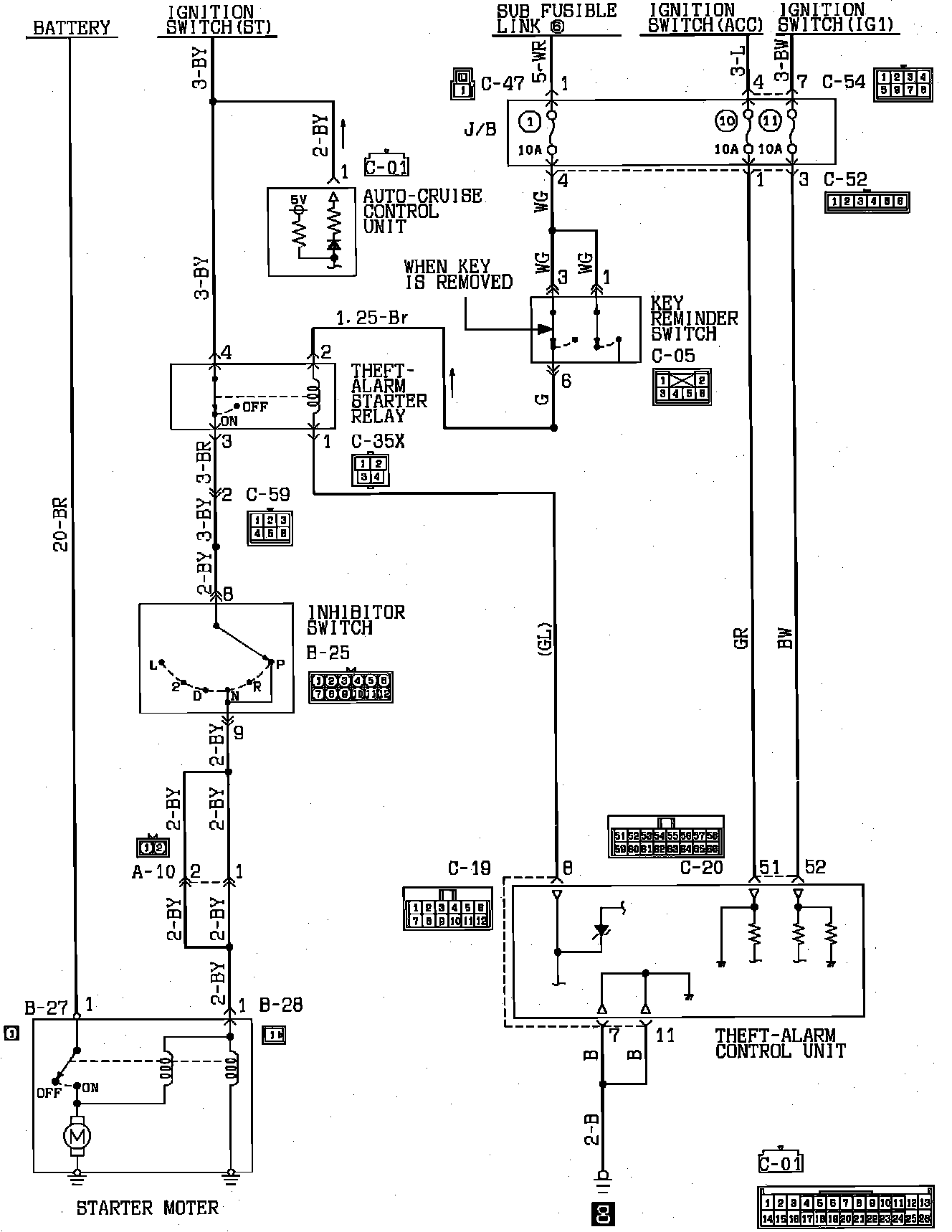

Starting System, With Alarm (A/T):
