System Diagram

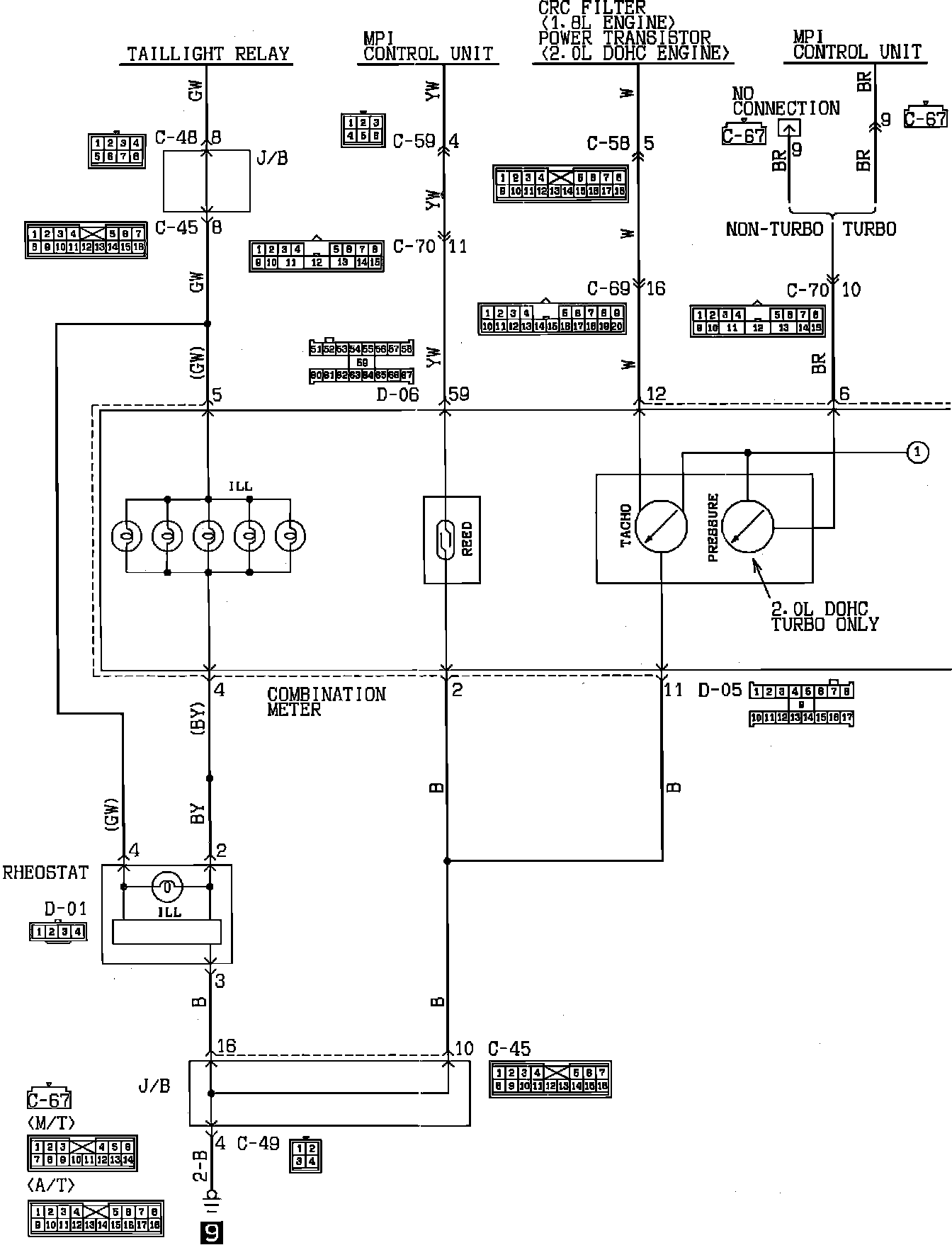

Instrument Panel (Gauges):

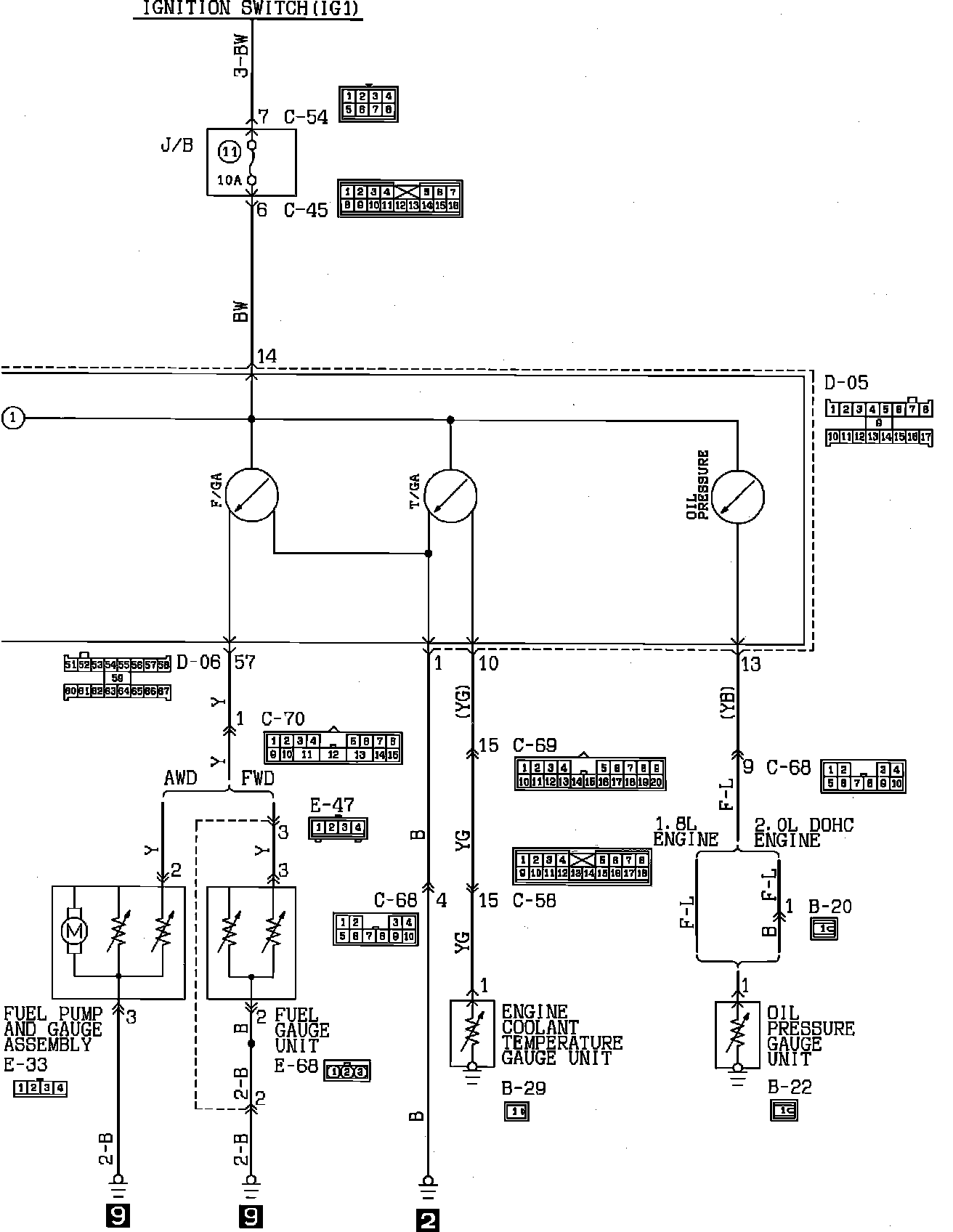

Instrument Panel (Gauges):

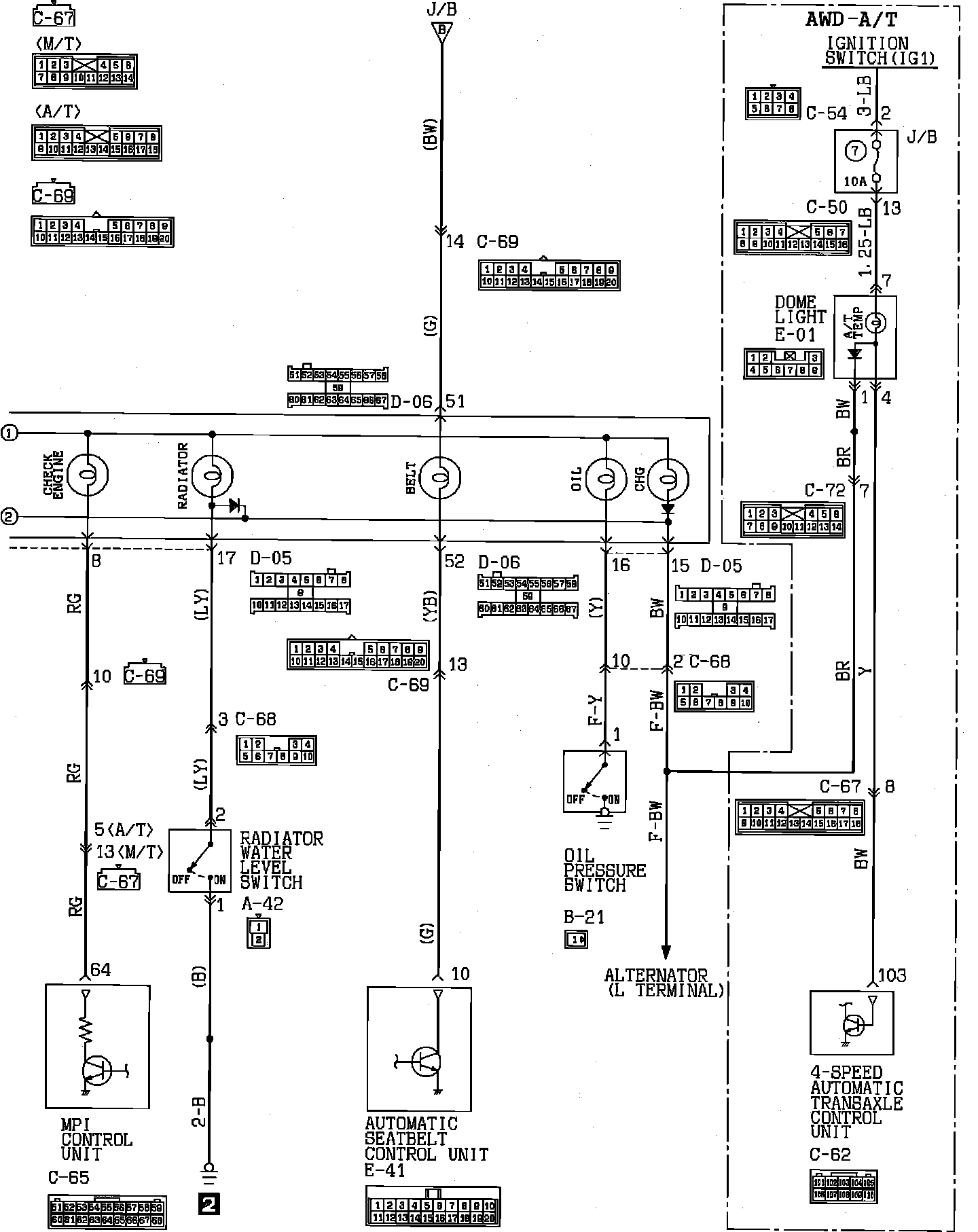

Instrument Panel Warning Indicators:

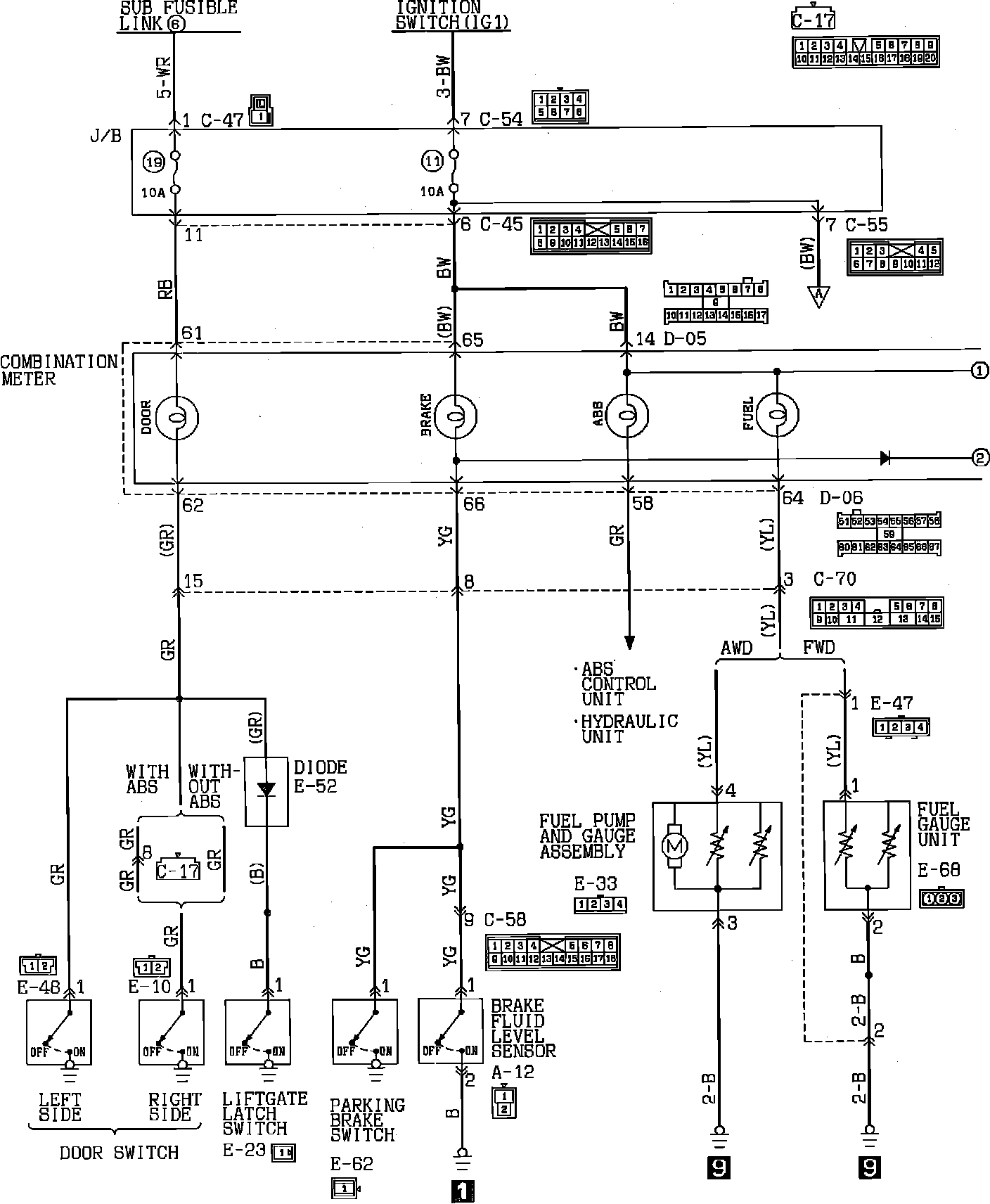

Instrument Panel Warning Indicators:



Instrument Panel Warning Indicators:



Instrument Panel Warning Indicators:
