Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Automatic Transaxle
Automatic Transaxle

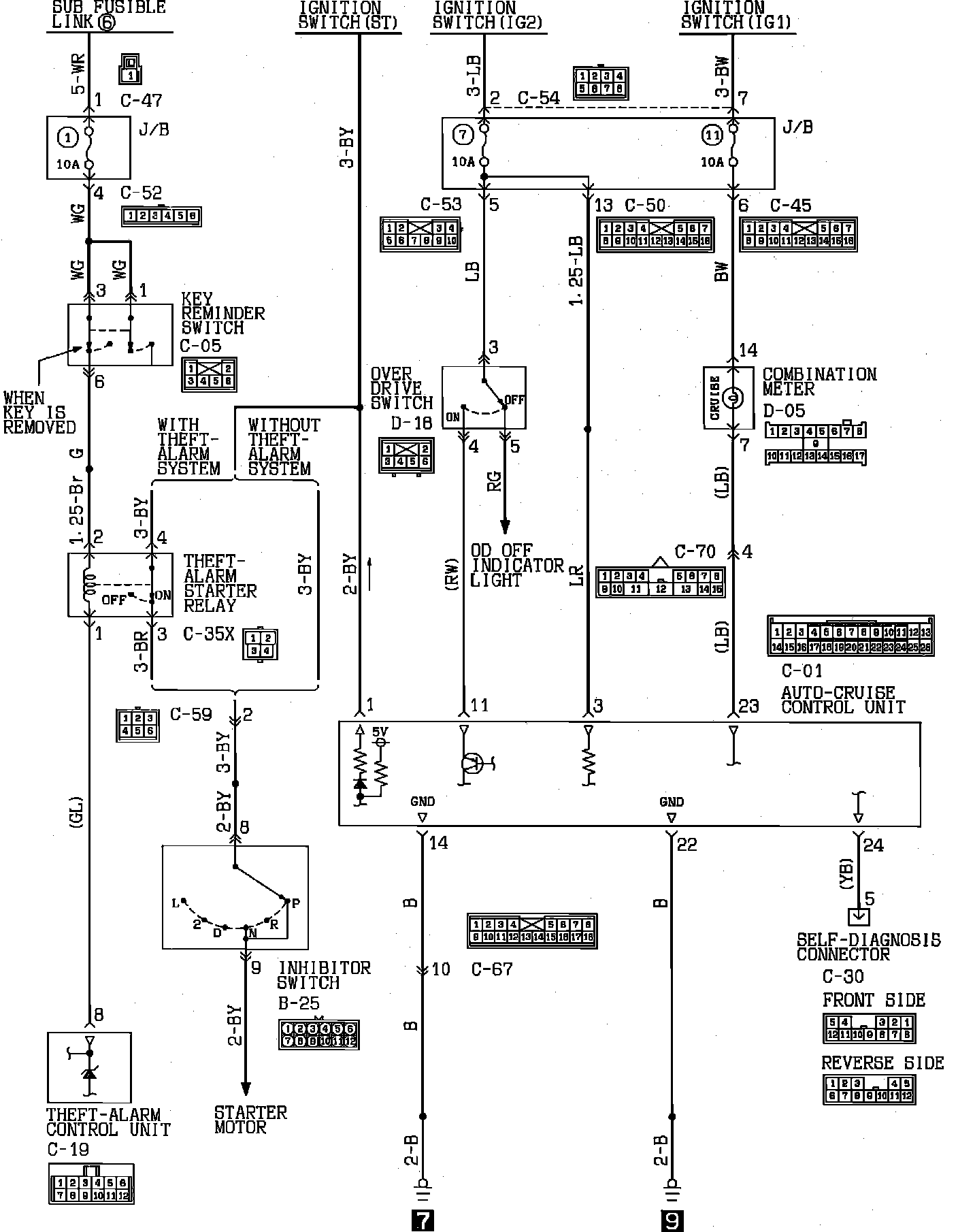

Auto-Cruise Control (A/T):

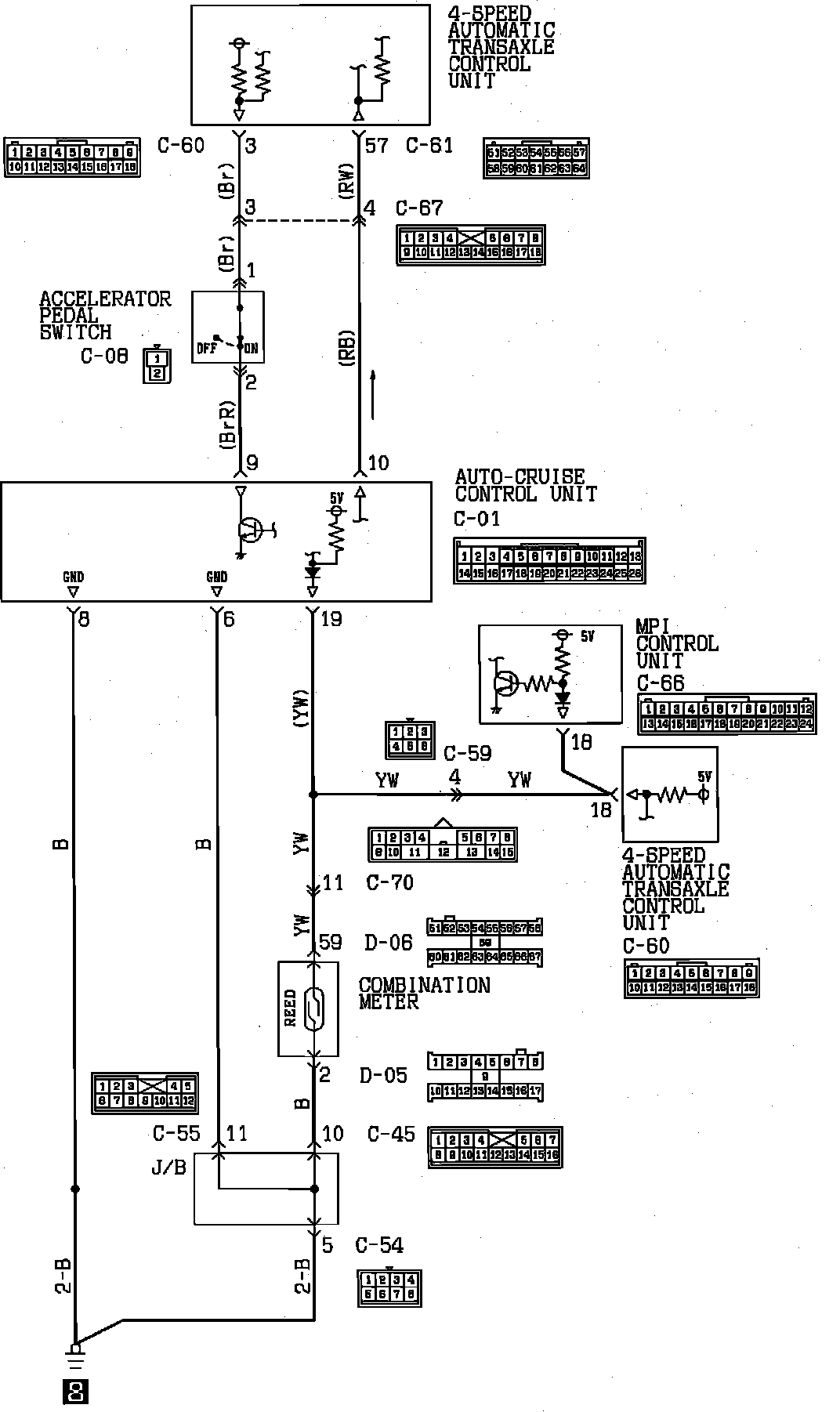

Auto-Cruise Control (A/T):
Auto-Cruise Control (A/T):
Auto-Cruise Control (A/T):
