Manual Transaxle

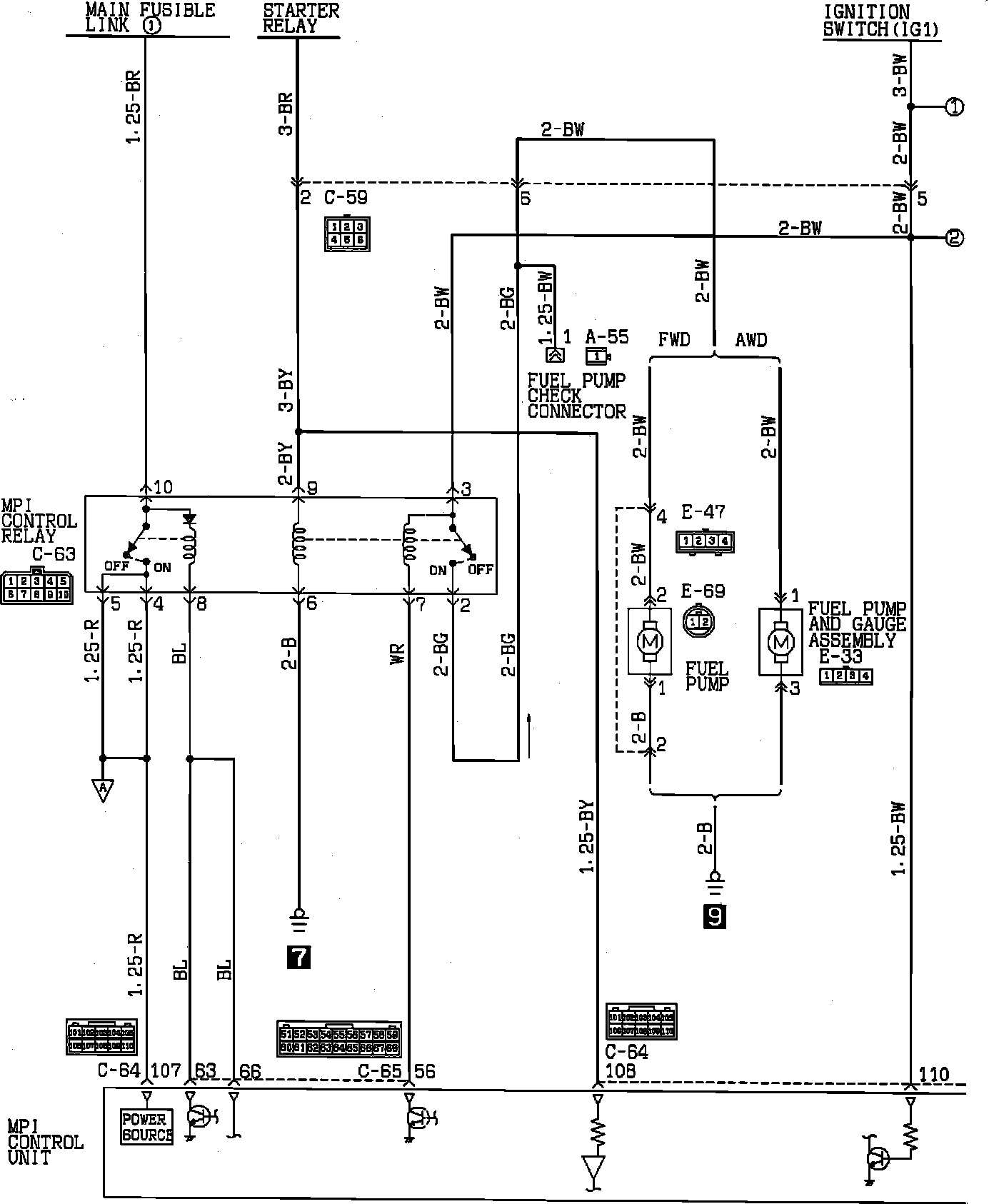

MPI Circuit Diagram 1 Of 5:




PART 1 OF 5

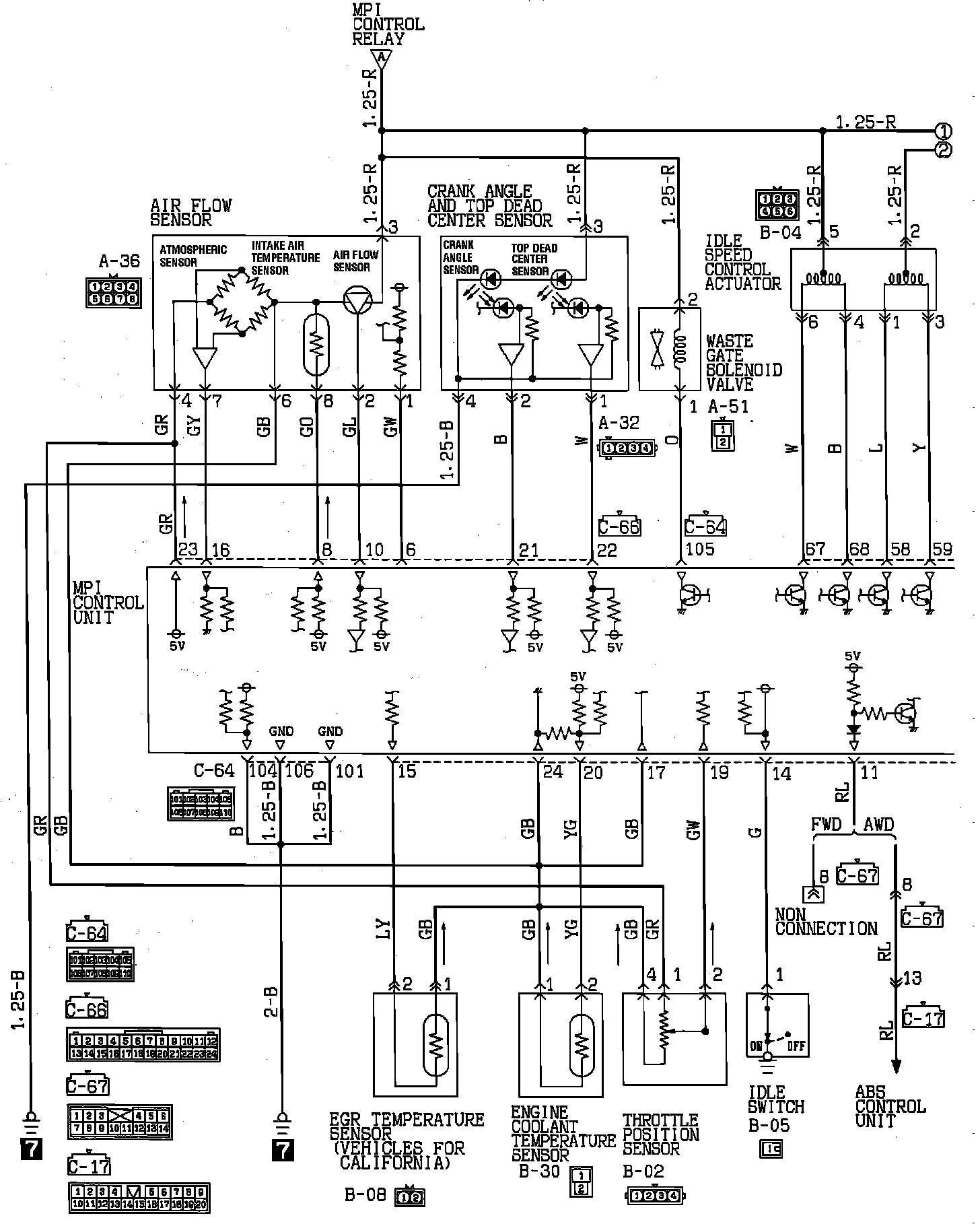

MPI Circuit Diagram 2 Of 5:




PART 2 OF 5

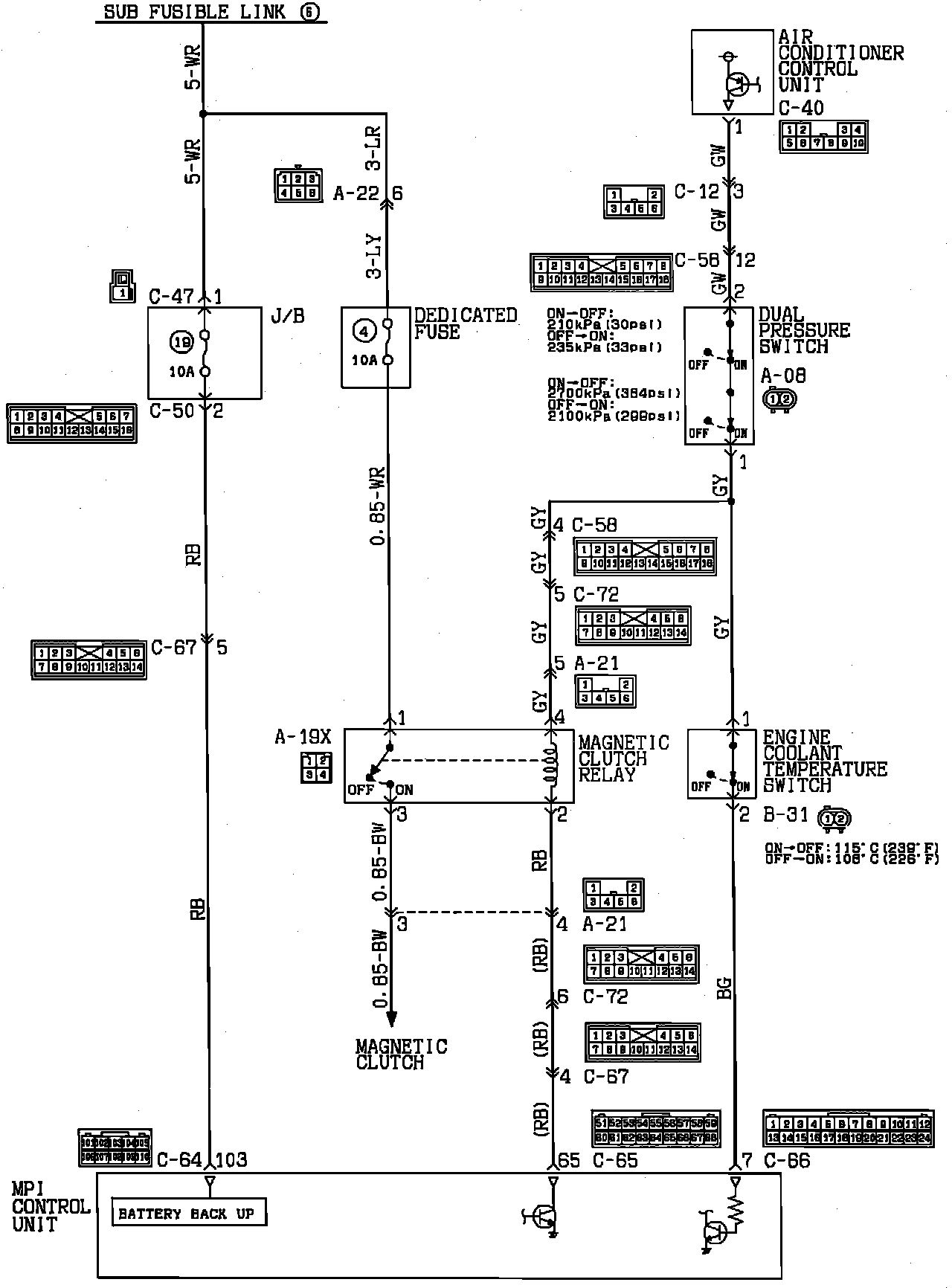

MPI Circuit Diagram 3 Of 5:




PART 3 OF 5

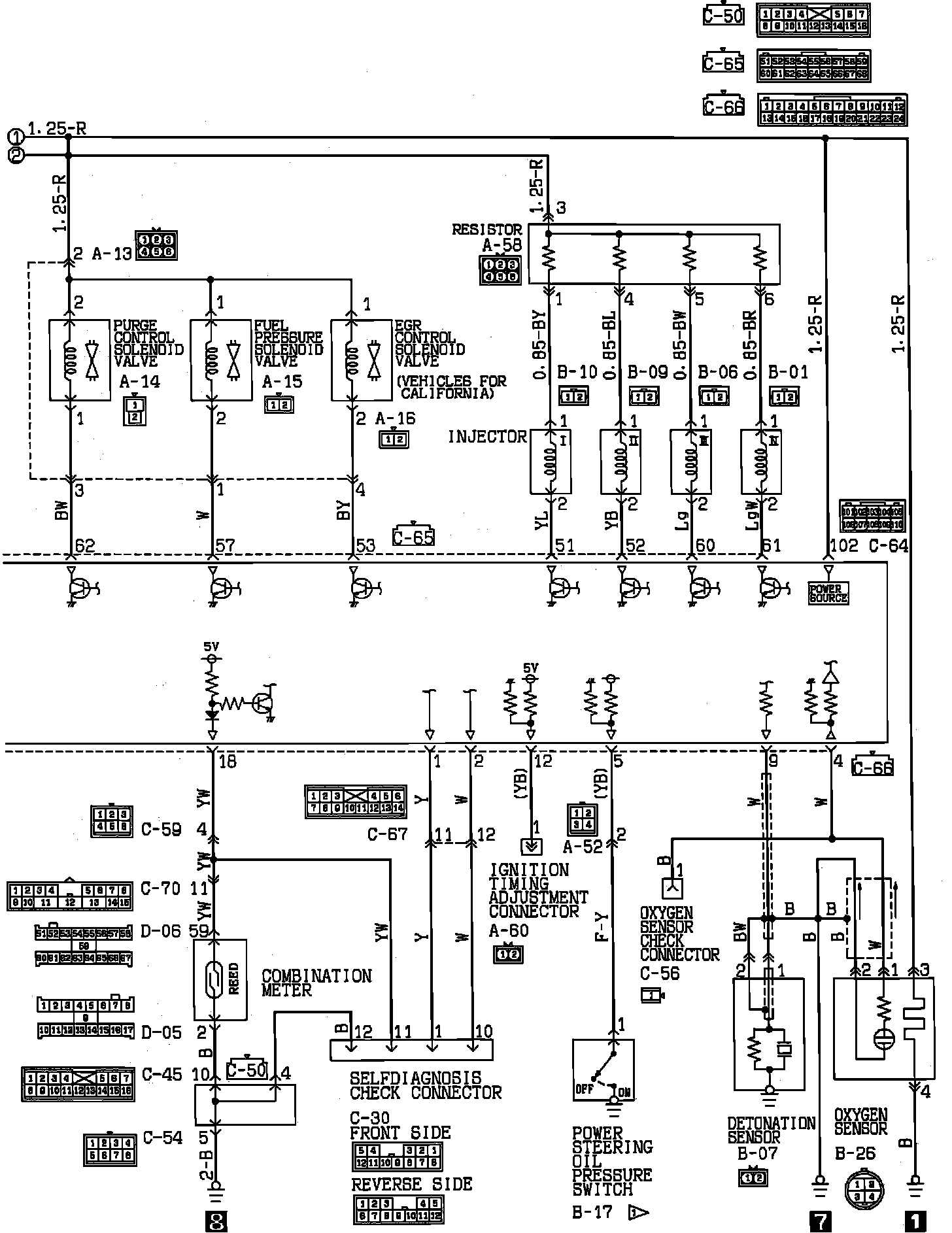

MPI Circuit Diagram 4 Of 5:




PART 4 OF 5

MPI Circuit Diagram 5 Of 5:




PART 5 OF 5

For further information, refer to CHASSIS ELECTRICAL DIAGRAMS.
