Automatic Transaxle

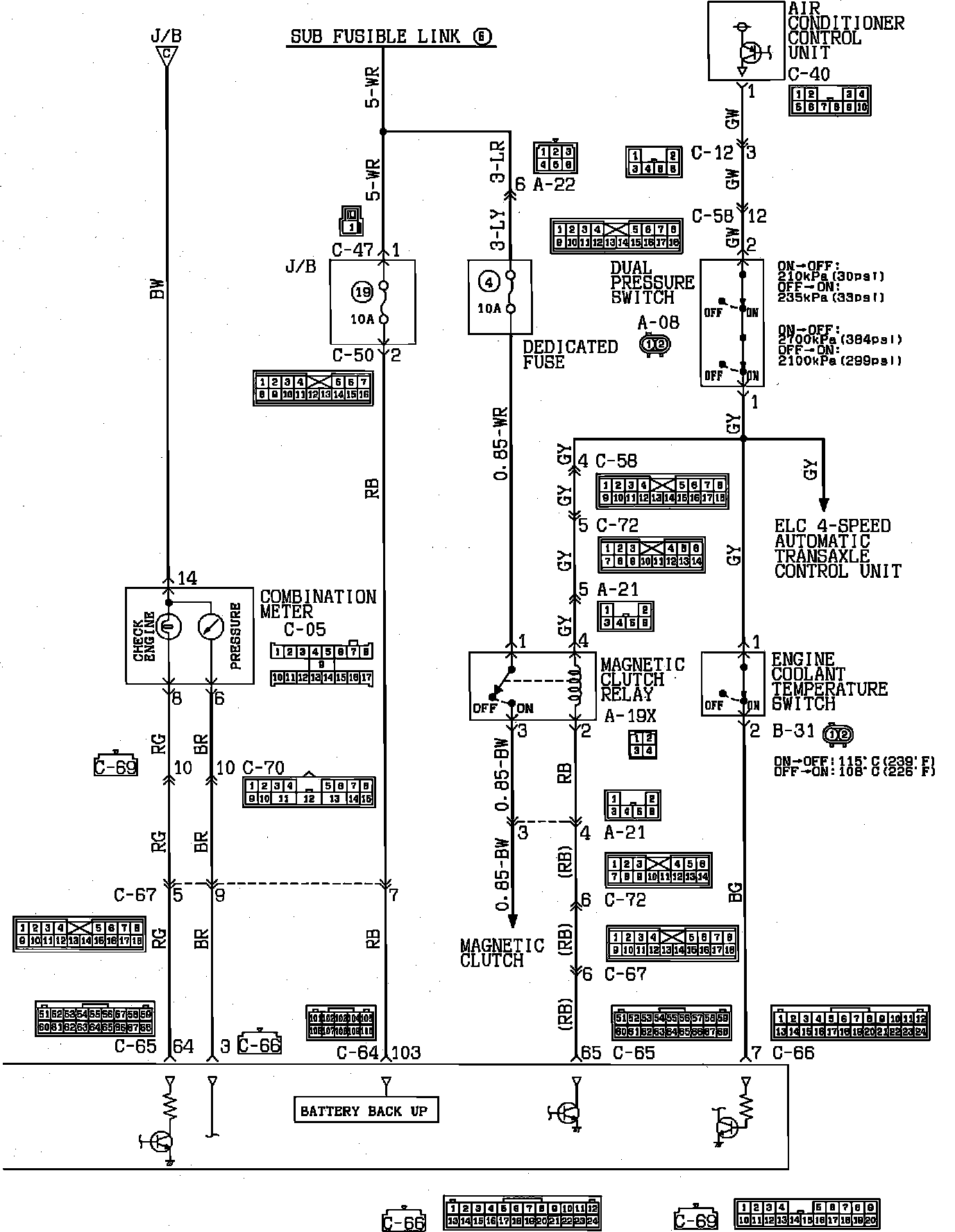

Engine Management (Turbo):

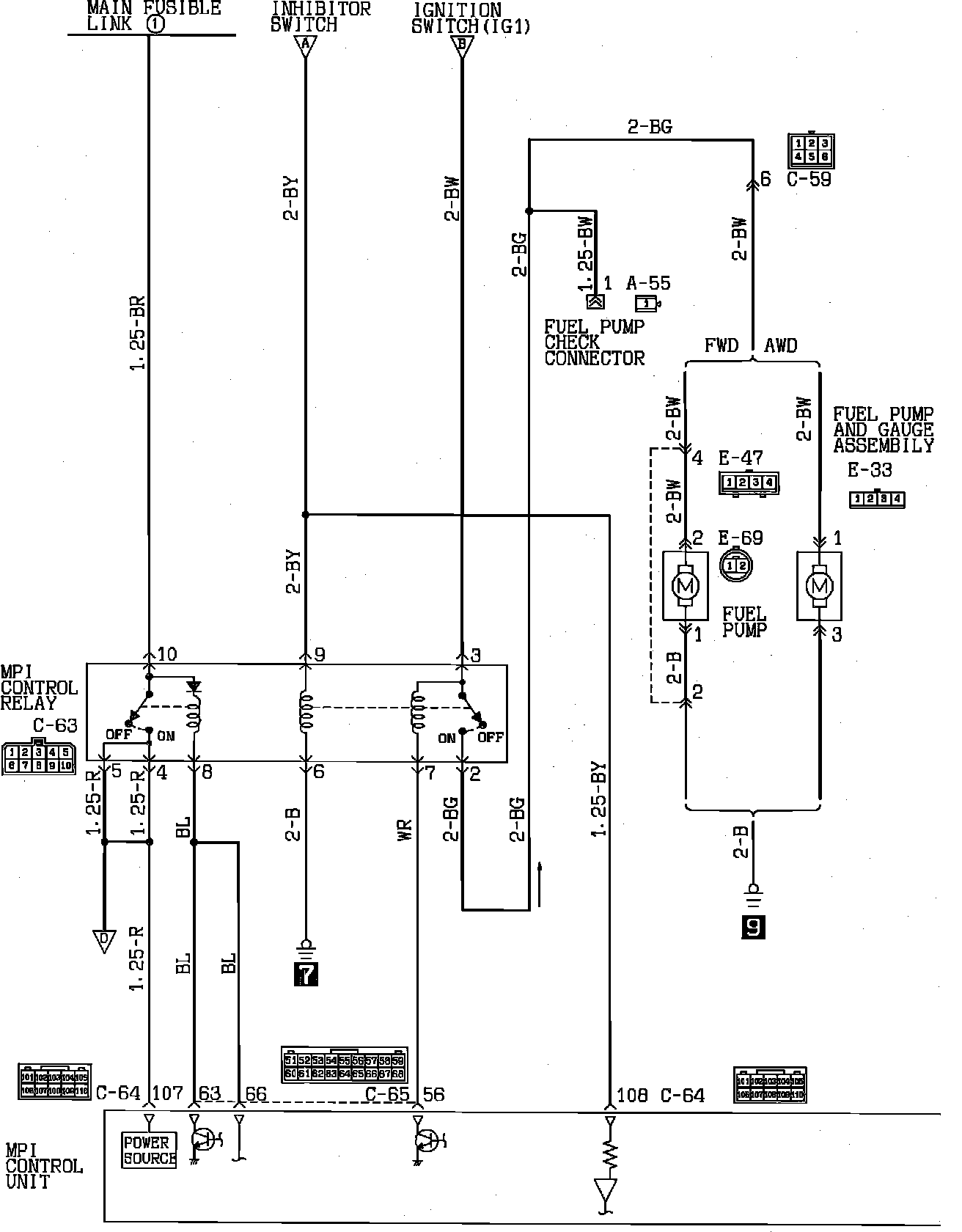

Engine Management (Turbo):

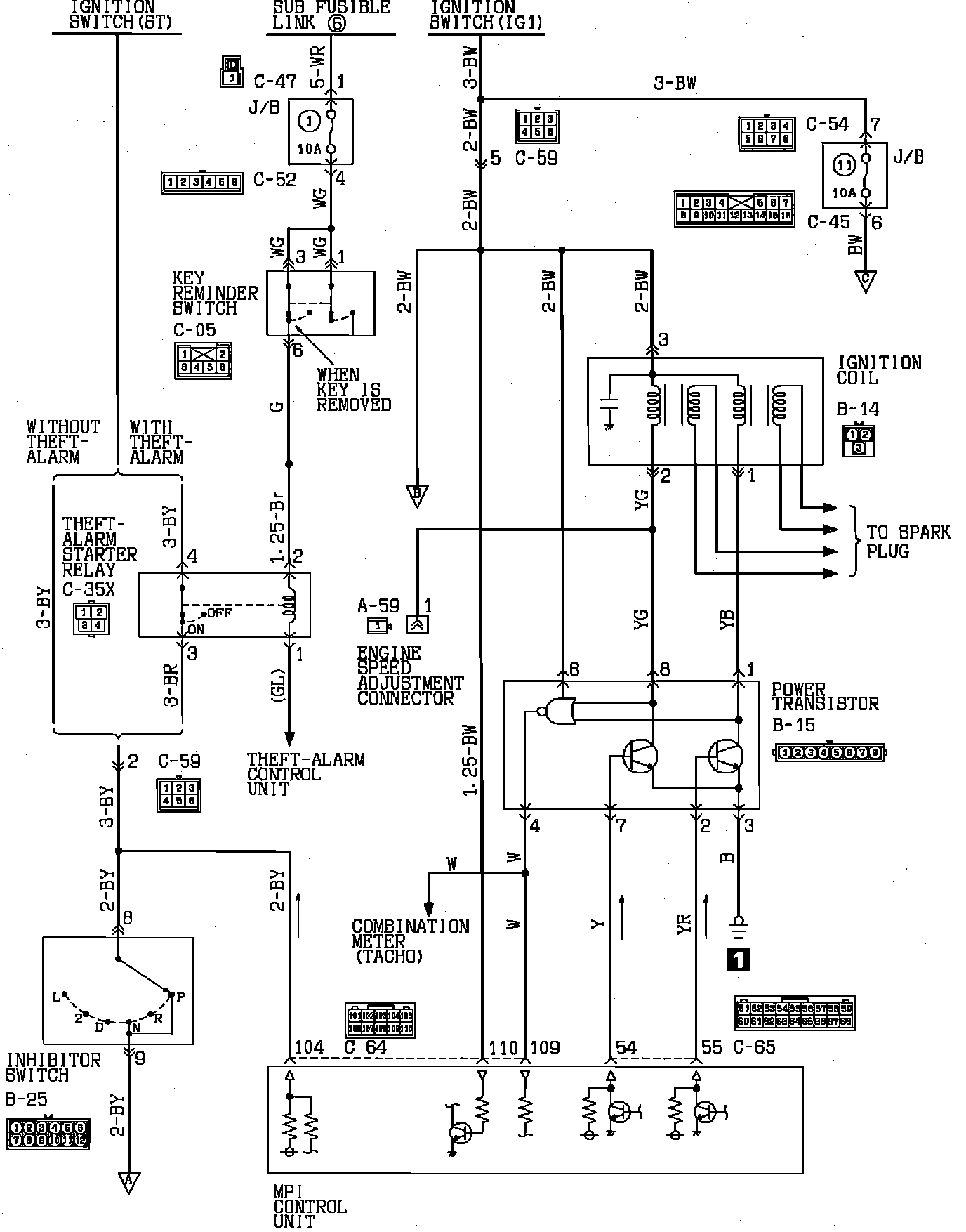

Engine Management (Turbo):

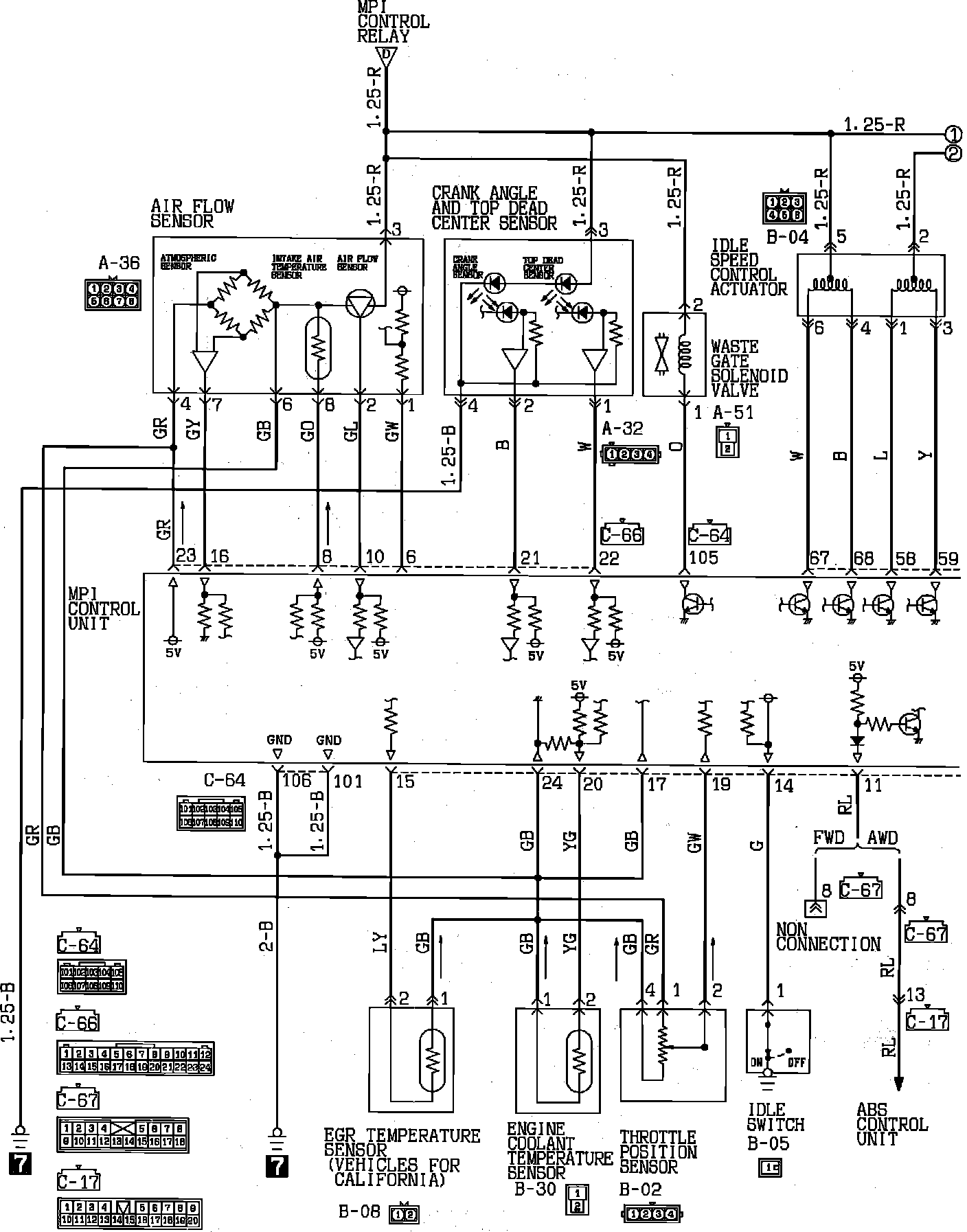

Engine Management (Turbo):

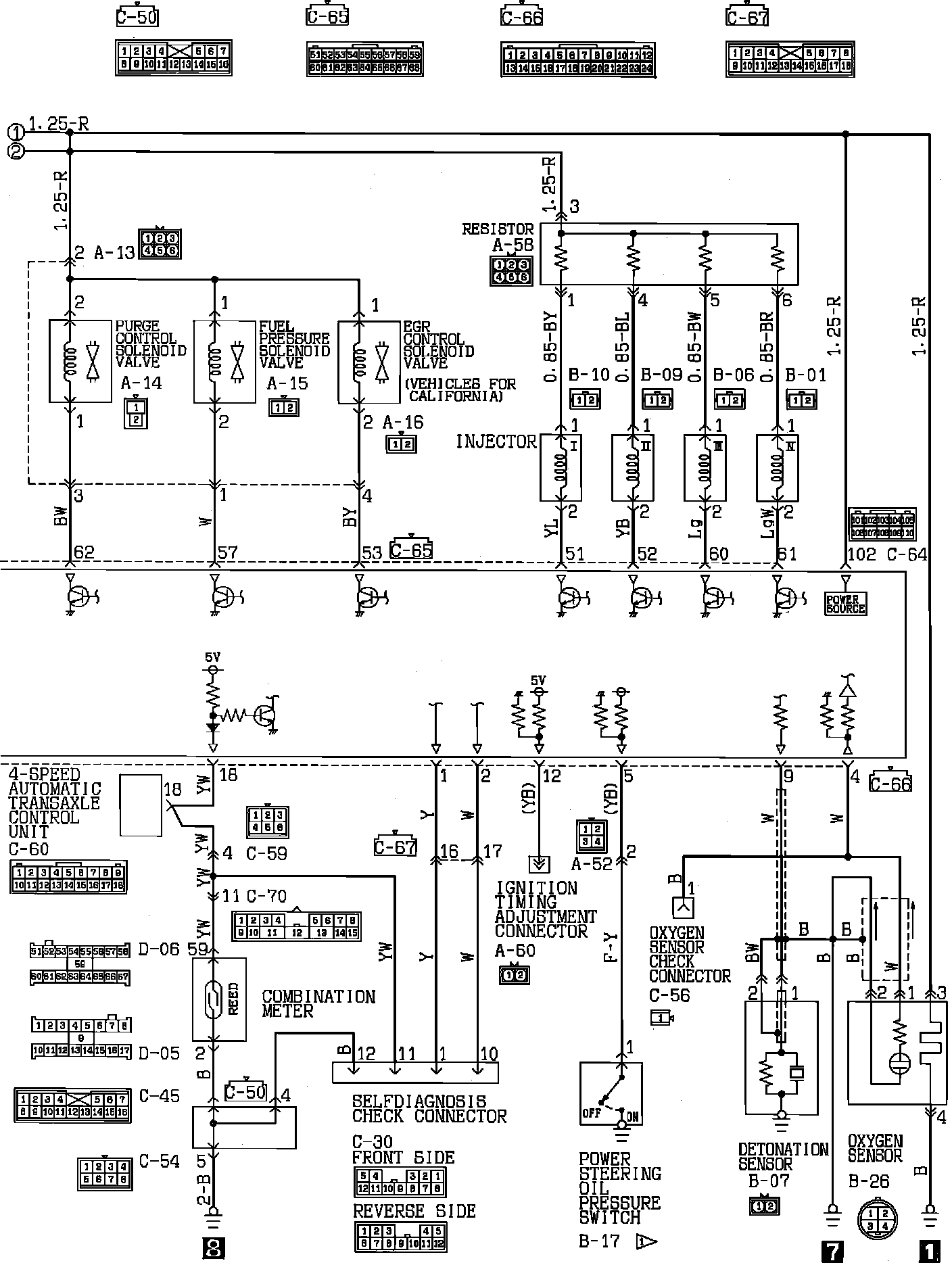

Engine Management (Turbo):
