Antilock Brakes / Traction Control Systems

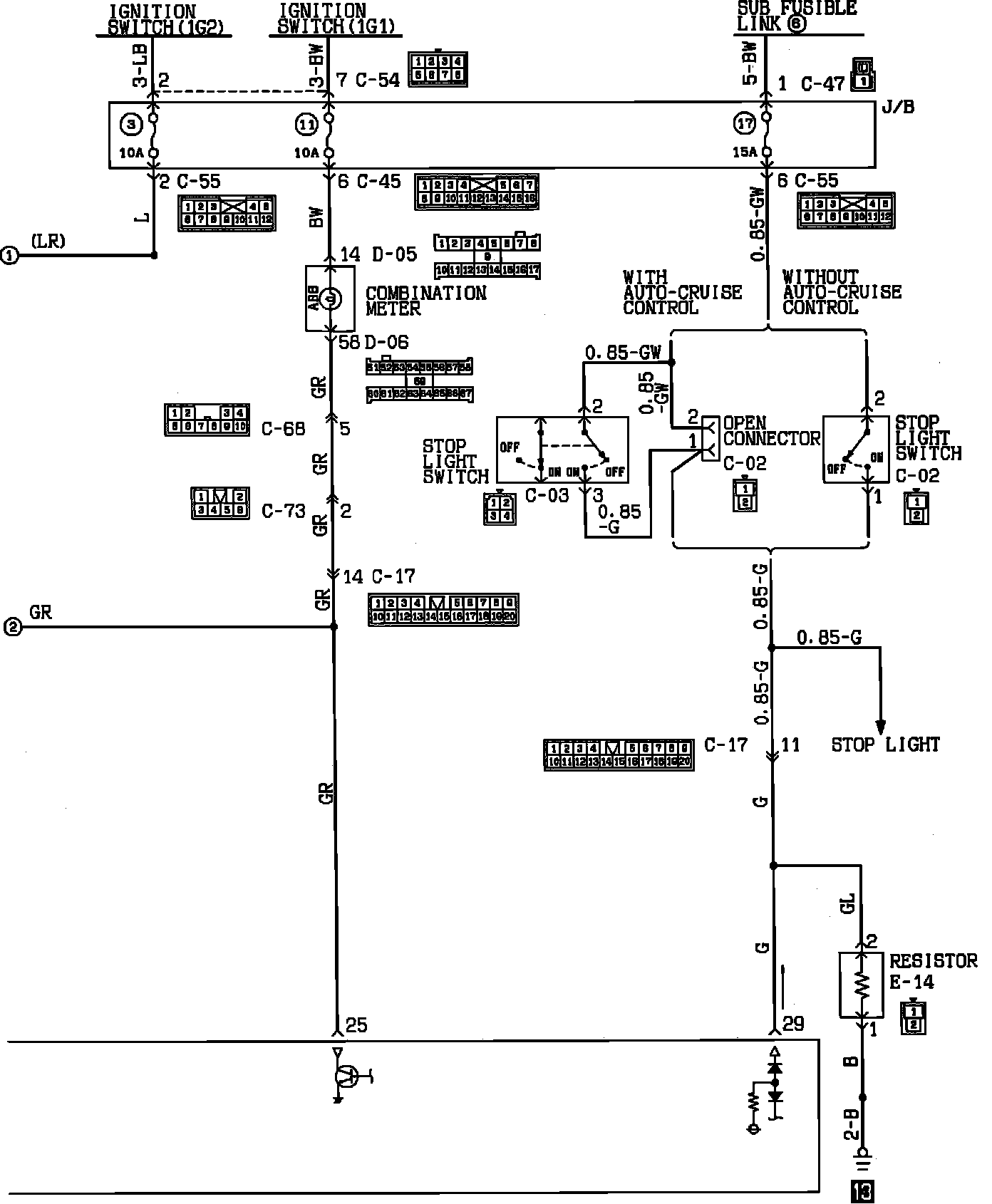

Fig. 6 Anti-lock Brake System Wiring Diagram (Part 1 Of 3). Eclipse AWD:

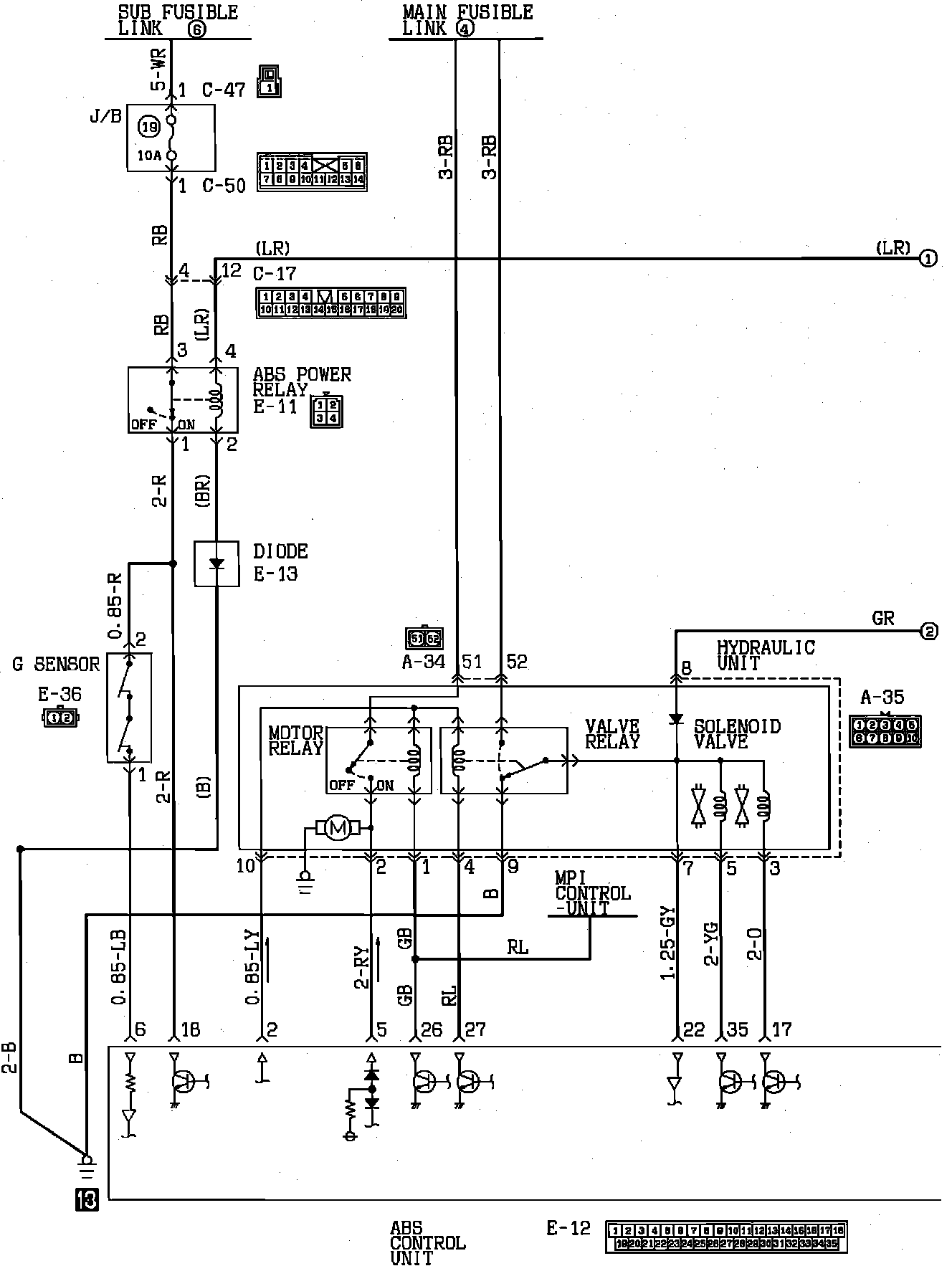

Fig. 6 Anti-lock Brake System Wiring Diagram (Part 2 Of 3). Eclipse AWD:

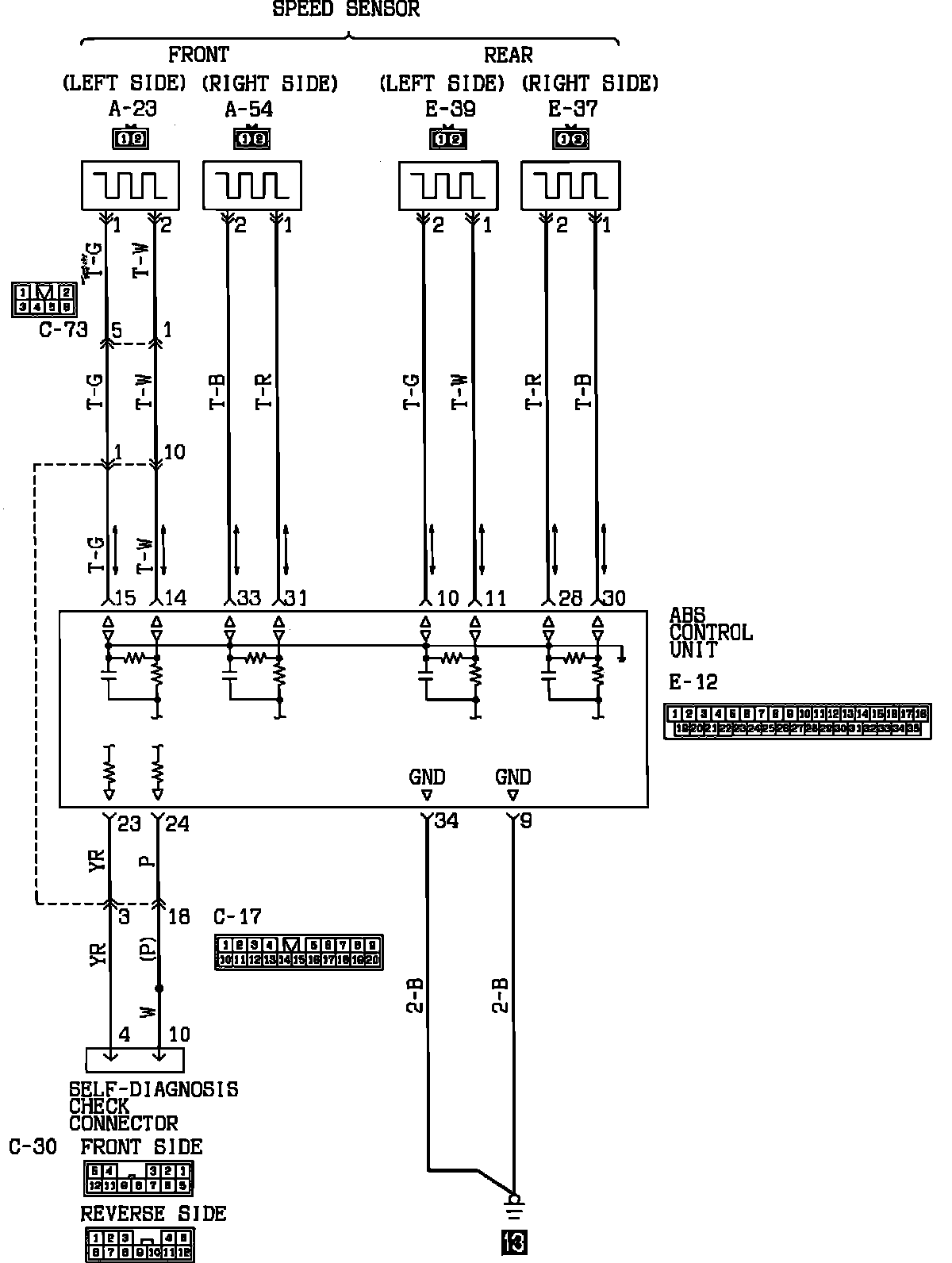

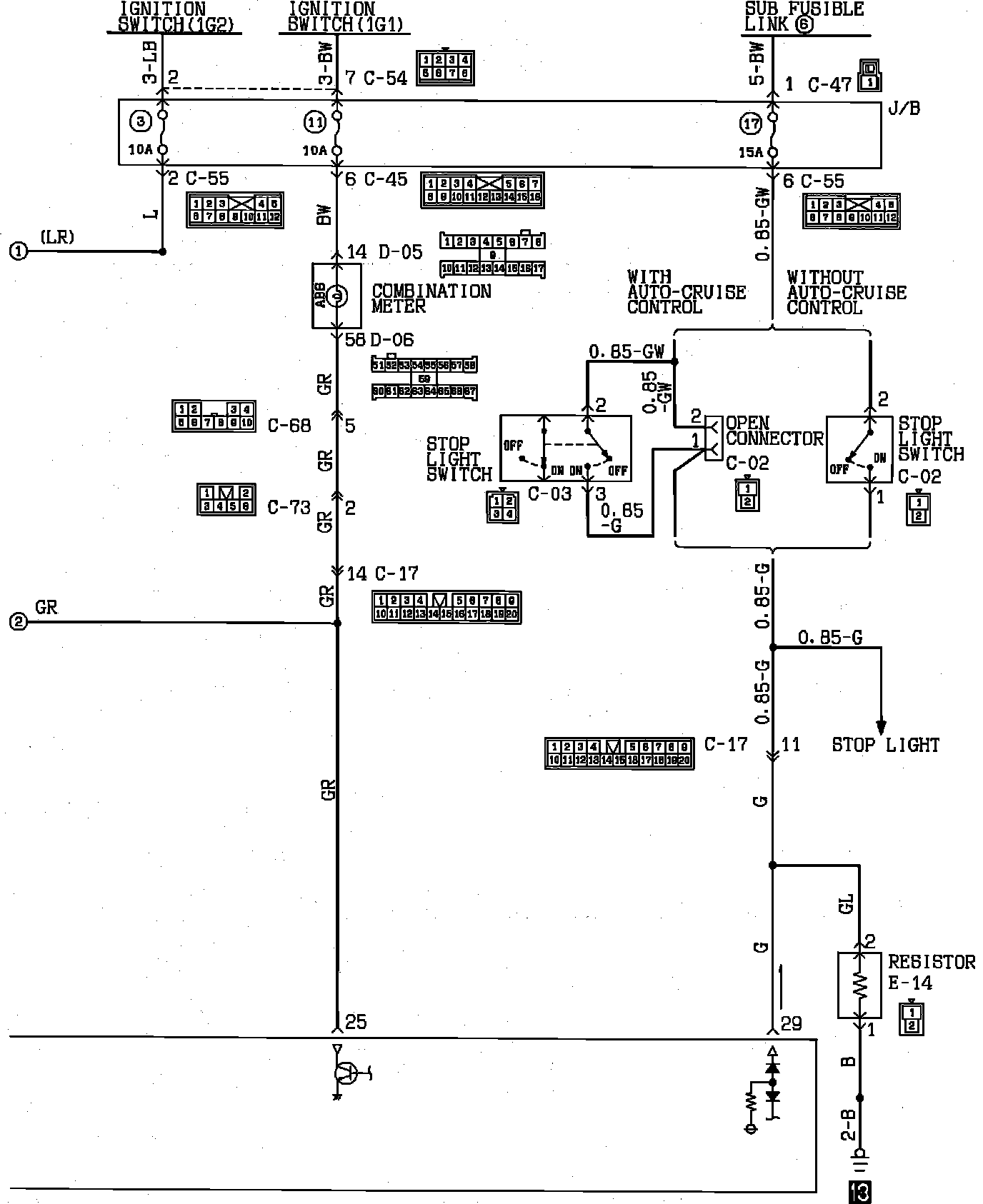

Fig. 6 Anti-lock Brake System Wiring Diagram (Part 3 Of 3). Eclipse AWD:

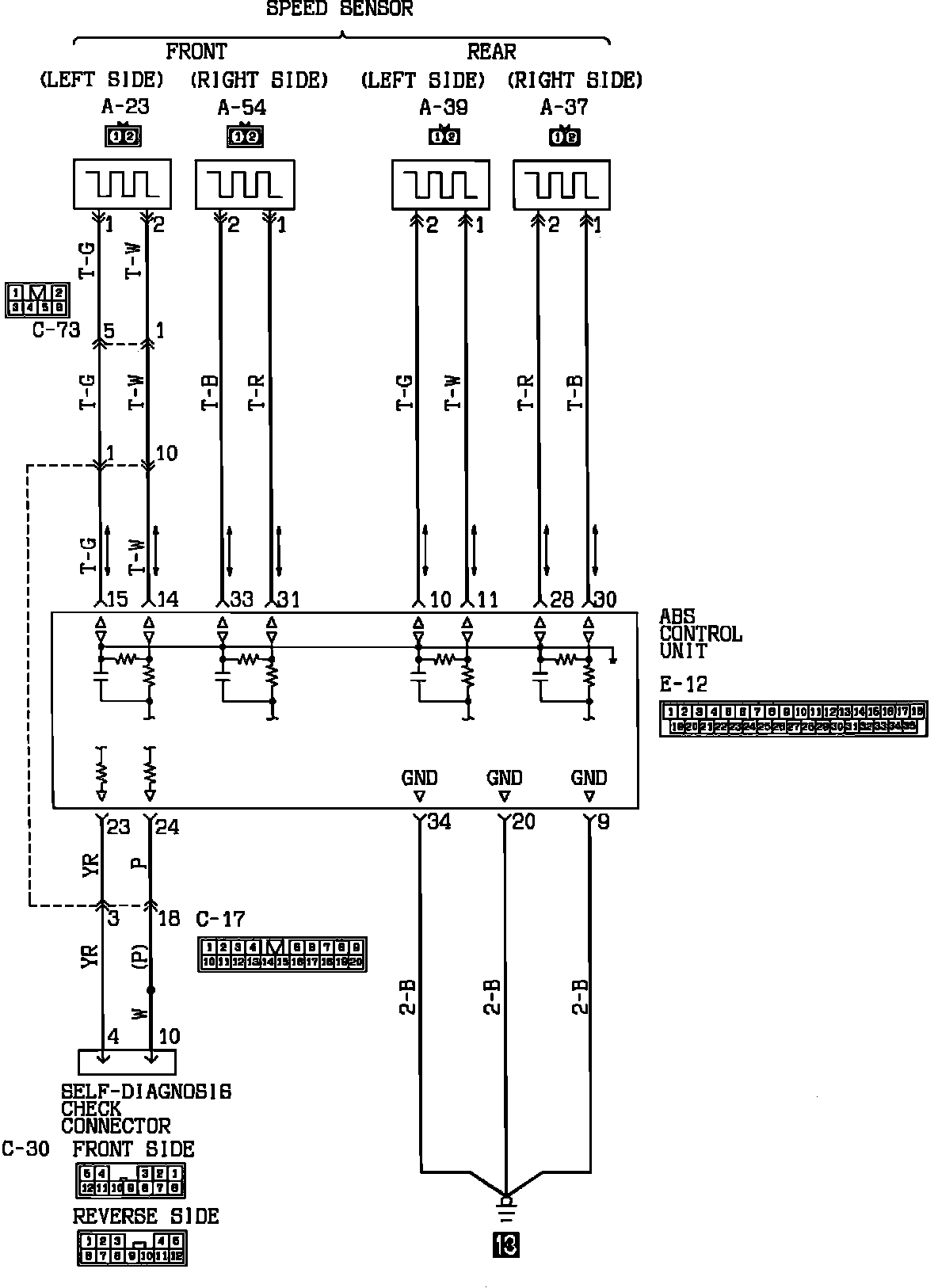

Fig. 7 Anti-lock Brake System Wiring Diagram (Part 1 Of 3). Eclipse FWD:

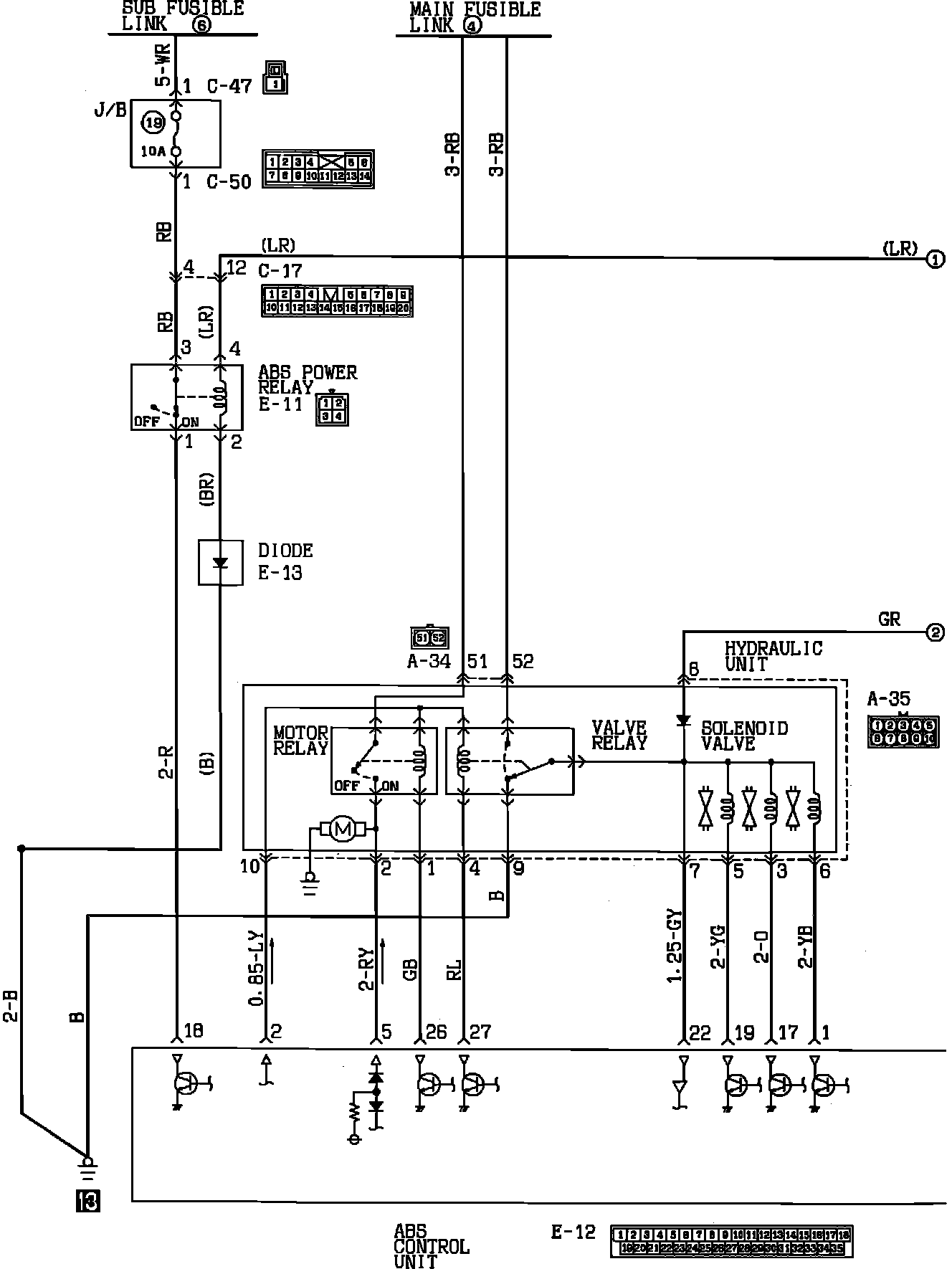

Fig. 7 Anti-lock Brake System Wiring Diagram (Part 2 Of 3). Eclipse FWD:

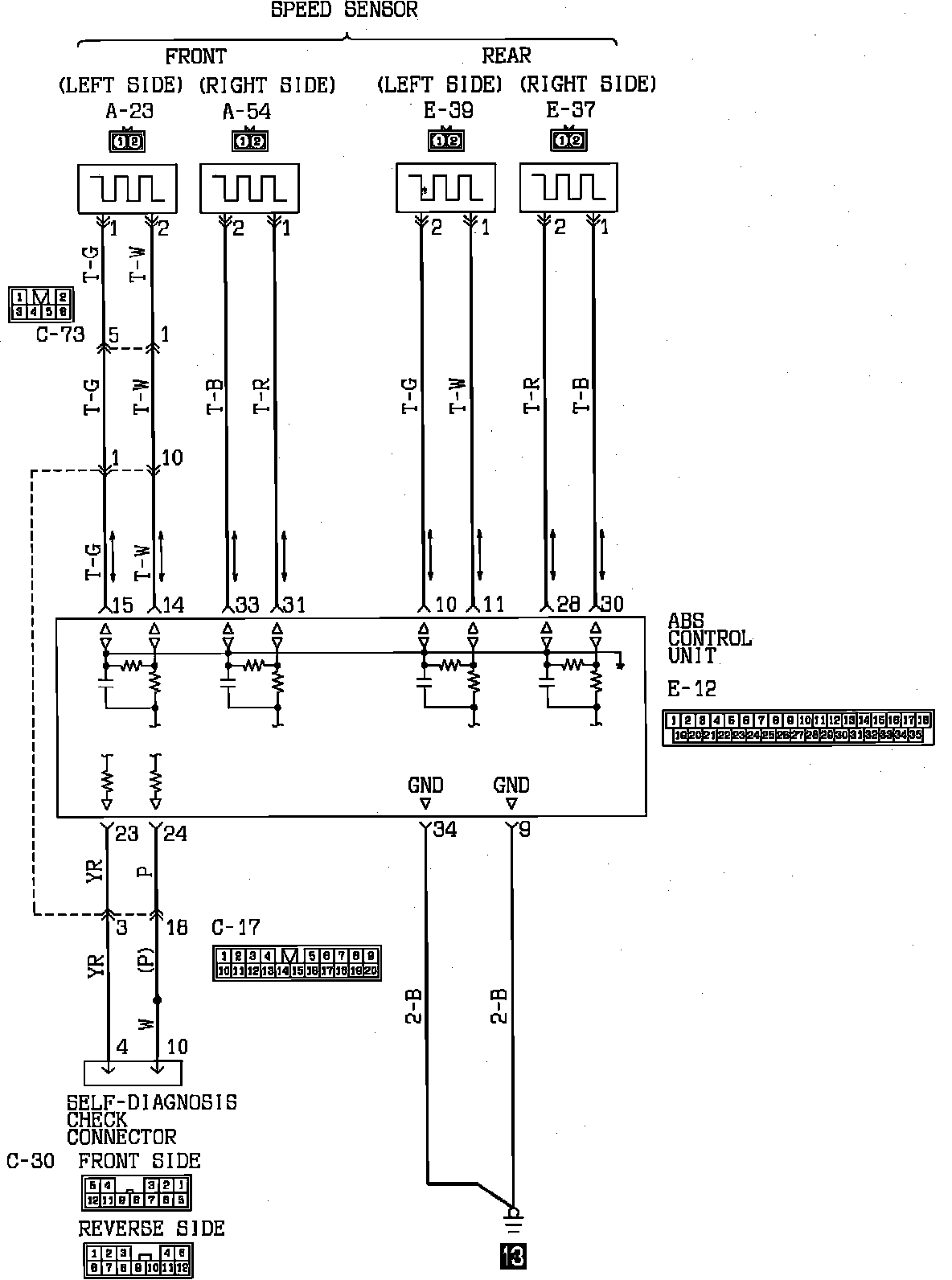

Fig. 7 Anti-lock Brake System Wiring Diagram (Part 3 Of 3). Eclipse FWD:

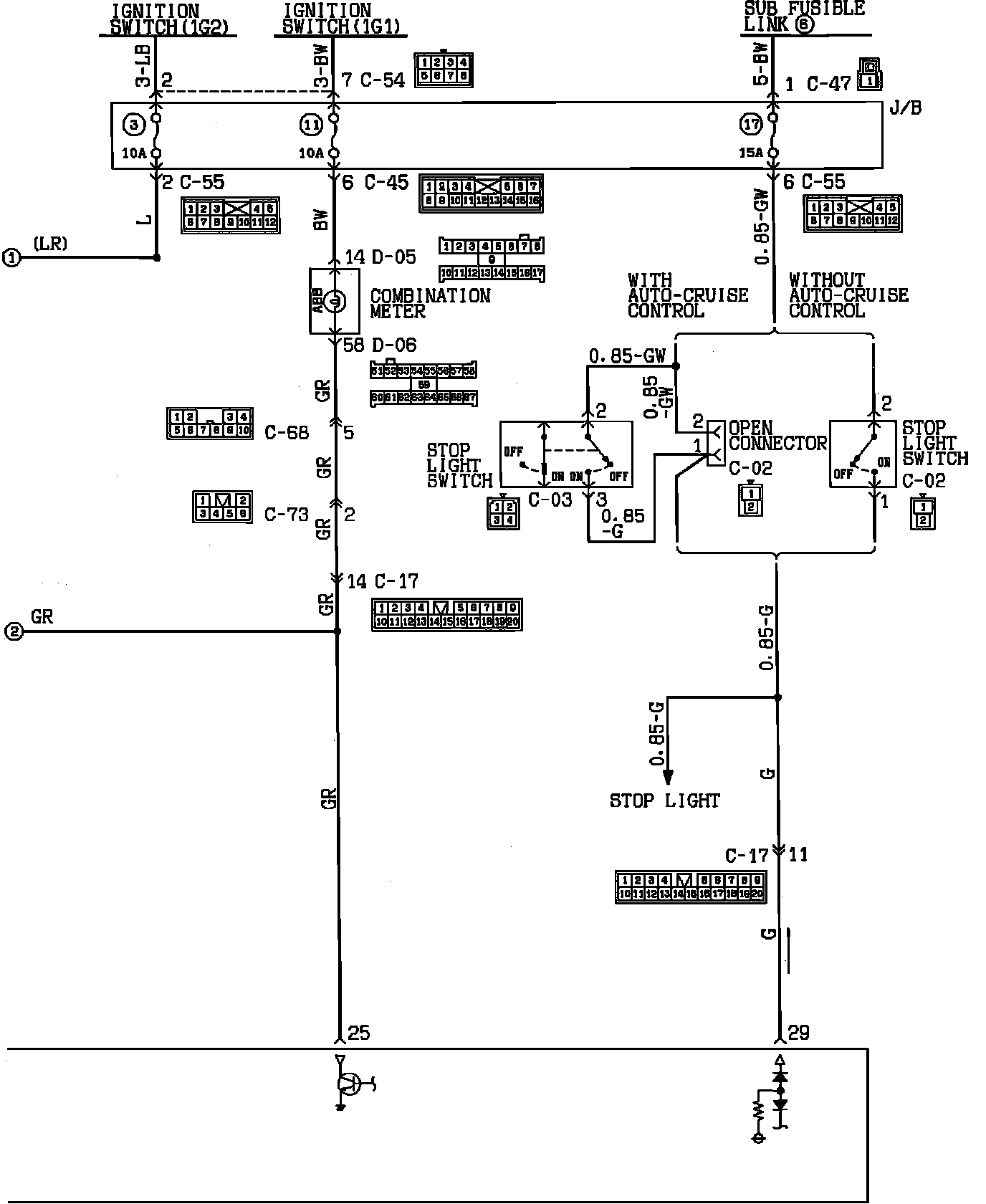

Anti-Lock Brakes (AWD):

Anti-Lock Brakes (AWD):

Anti-Lock Brakes (AWD):
