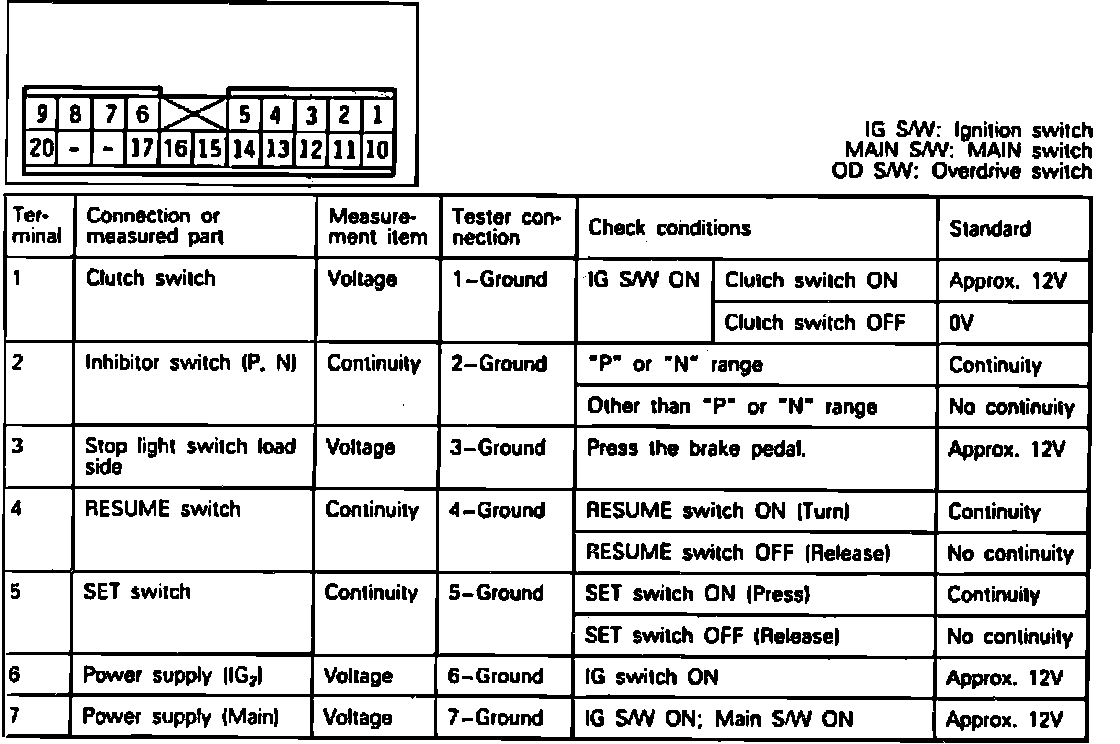

Fig. 30 Auto-cruise Control Signal Circuit Check:

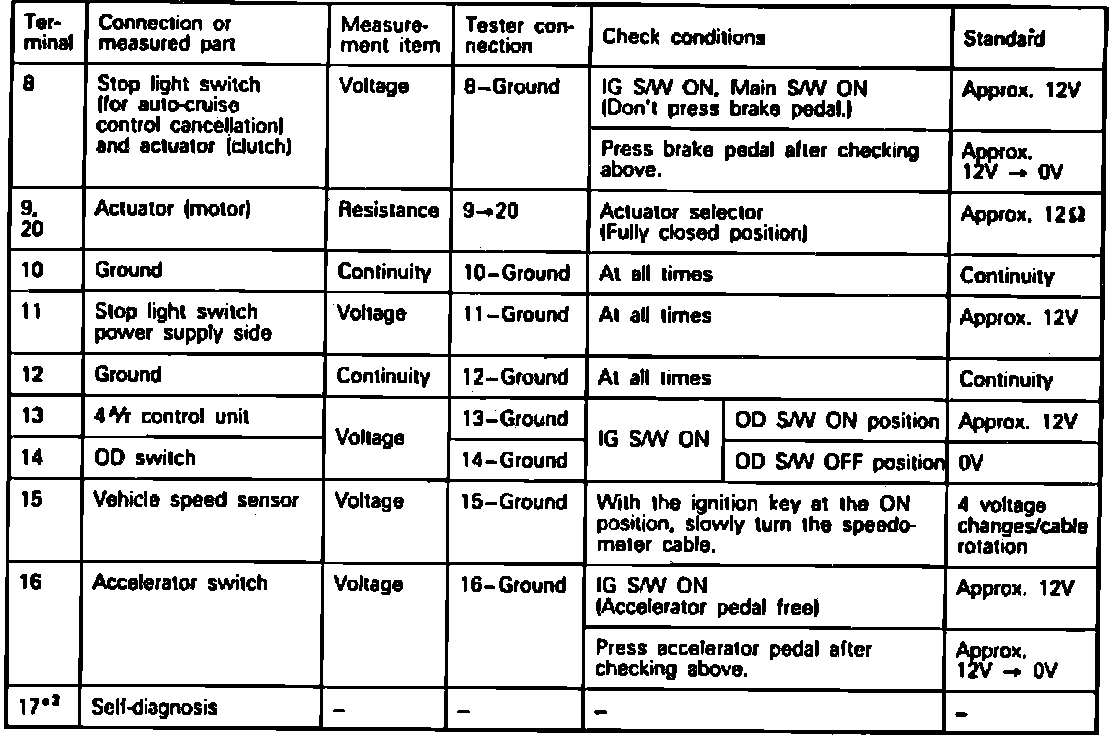

Fig. 30 Auto-cruise Control Signal Circuit Check (Part 2 Of 2):
