Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Service and Repair

Cruise Control: Service and Repair

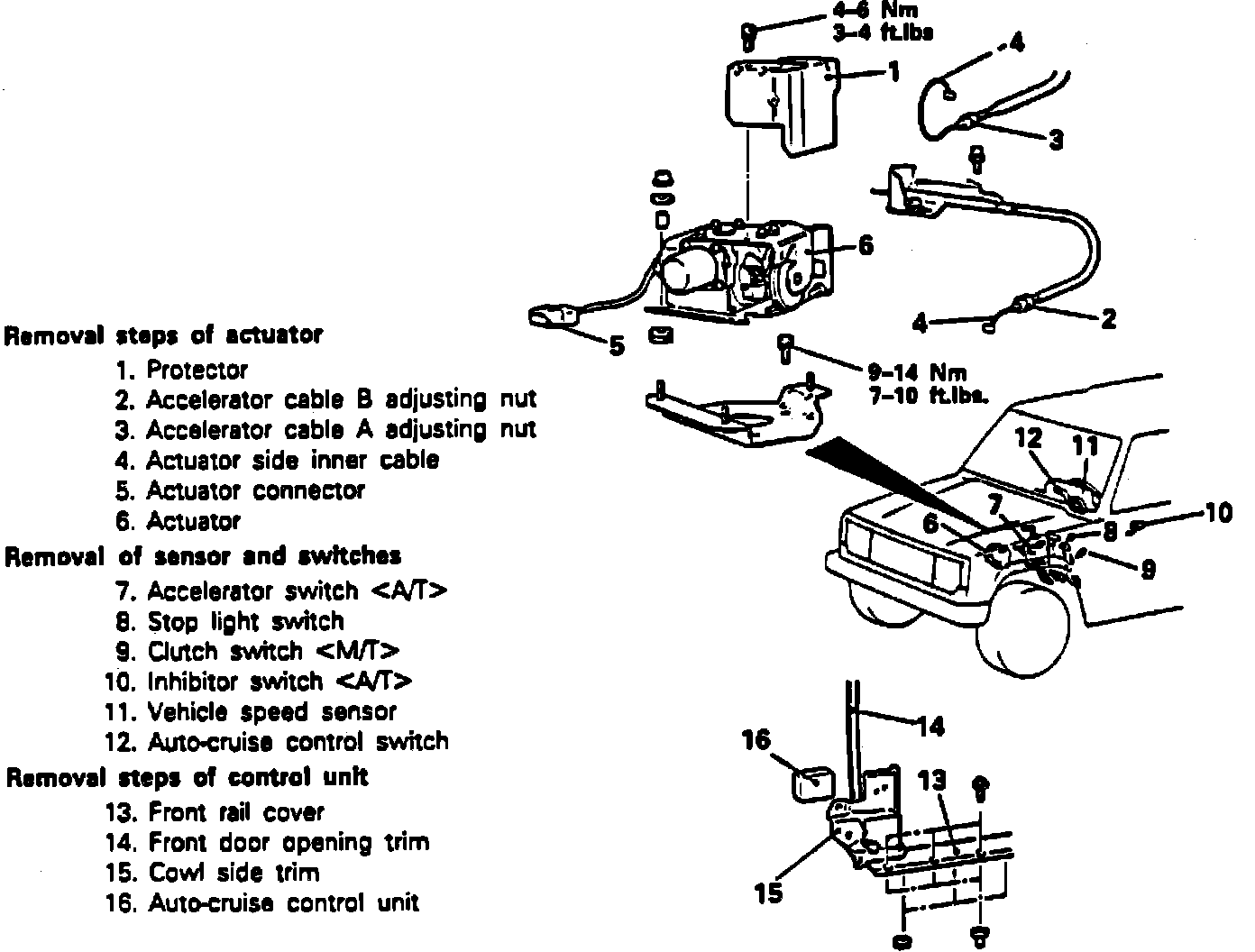

Fig. 32 Replacing Speed Control Components:

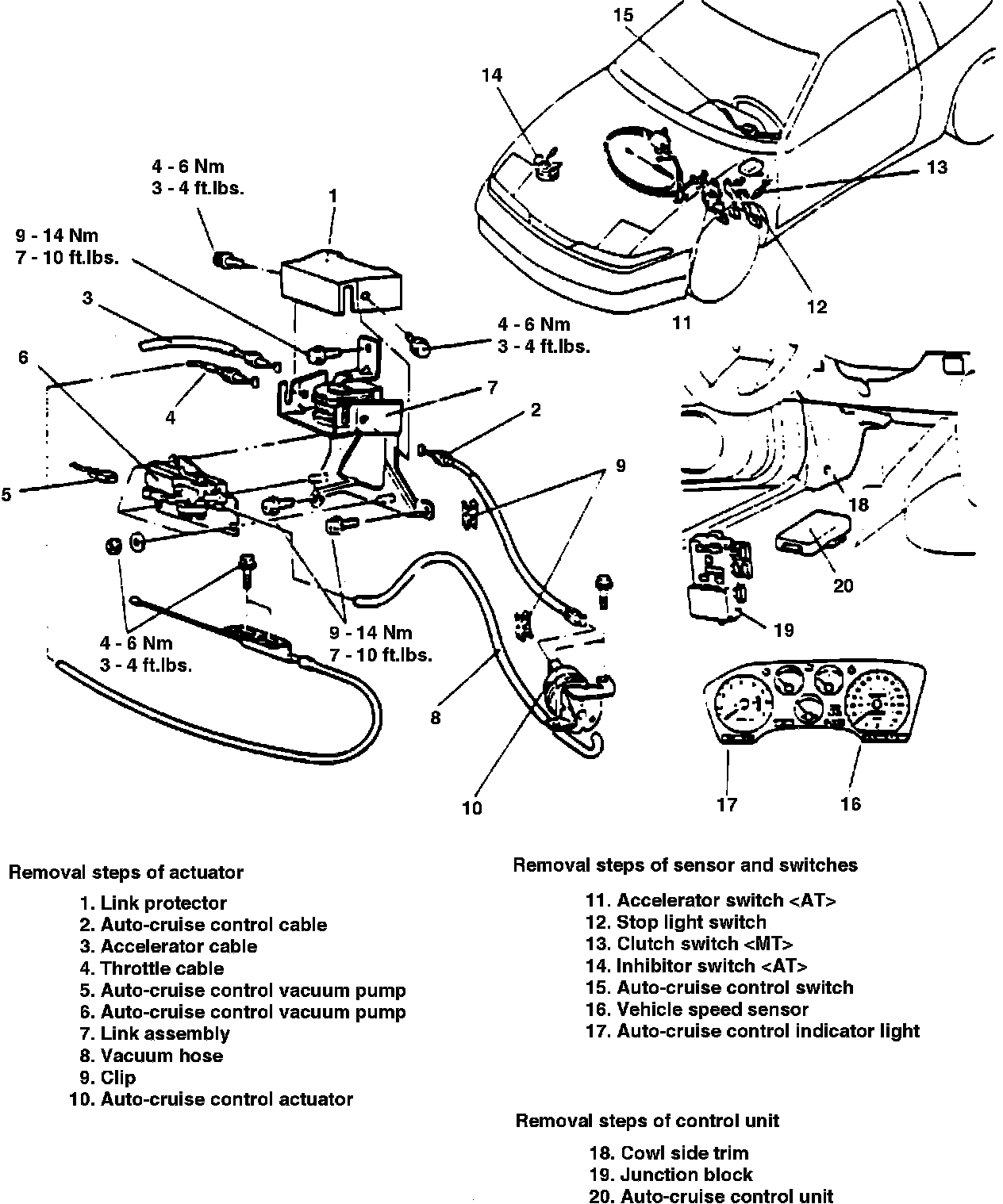

Fig. 37 Replacing Speed Control Components:
