Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Manual Transaxle

Manual Transaxle

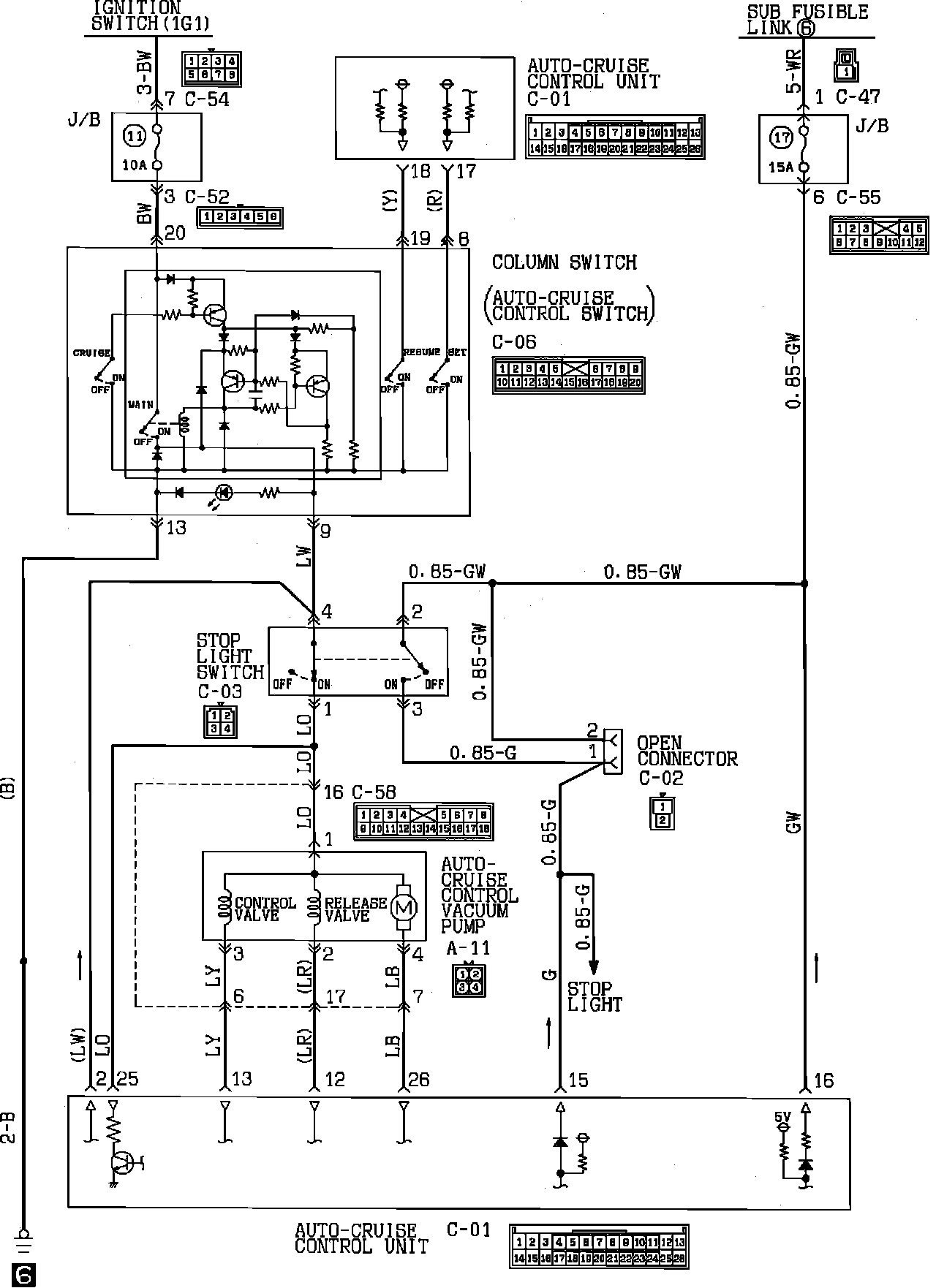

Auto-Cruise Control (M/T):



Auto-Cruise Control (M/T):



Auto-Cruise Control (M/T):
