Brake Proportioning/Combination Valve: Testing and Inspection

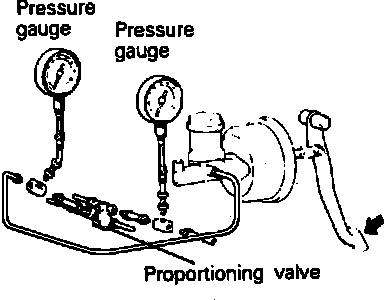

Fig. 13 Proportioning Valve Pressure Gauge Test Connection:

1. Connect two pressure gauges to proportioning valve, one to the output side and one to the input side, Fig. 13.
2. Bleed system after connecting gauges.
3. Depress brake pedal, check that measured values are within specifications as shown in SPECIFICATIONS/PRESSURES, VACUUM, AND TEMPERATURE SPECIFICATIONS/PROPORTIONING VALVE SPECIFICATIONS.
