B - ABS Light Remains on After the Engine Is Started
B - ABS Light Remains on After the Engine Is Started

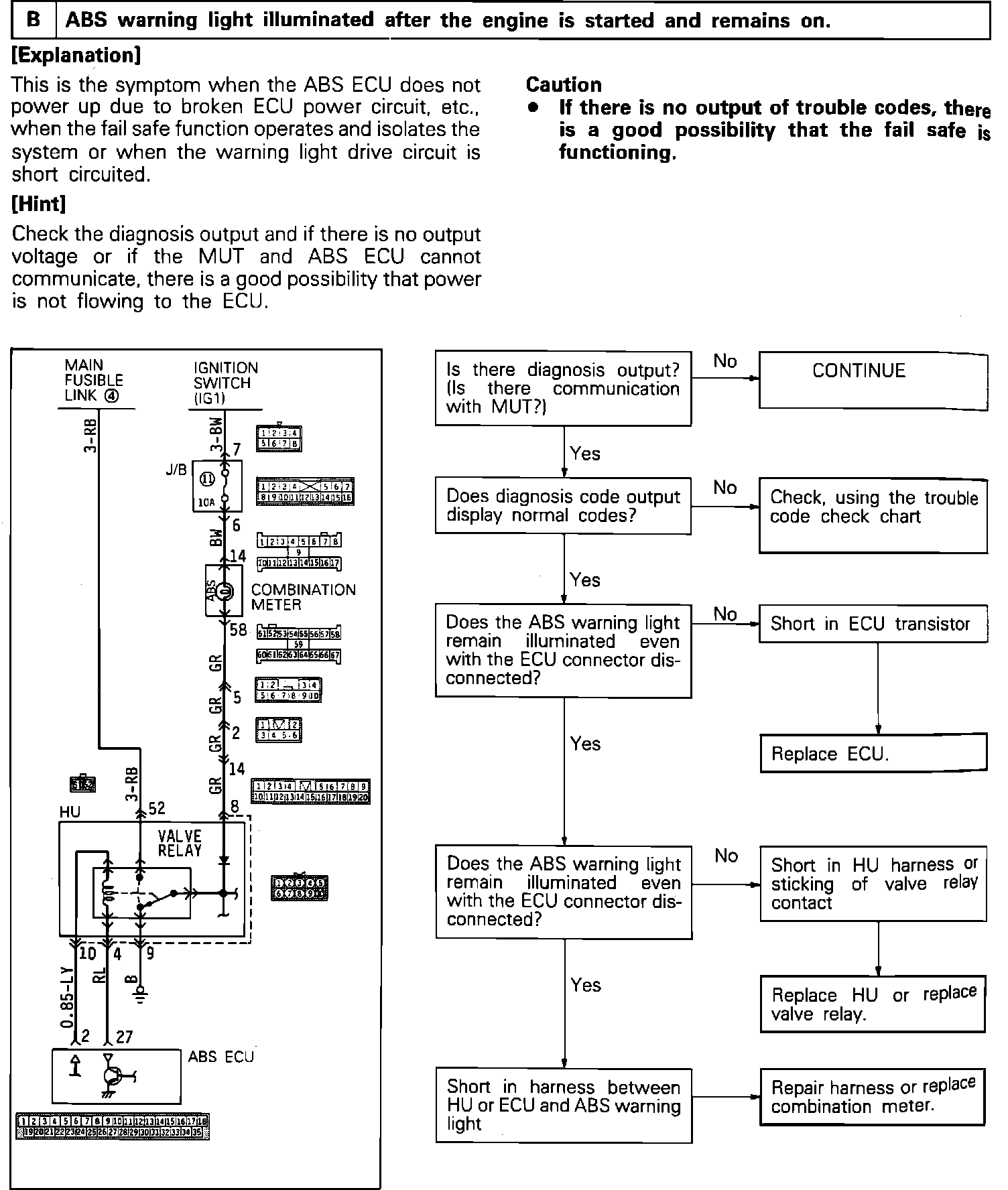

Fig. 25 Diagnostic Chart B (Part 1 Of 2):
Fig. 25 Diagnostic Chart B (Part 2 Of 2):
