A - ABS Warning Light Does Not Light at All
A - ABS Warning Light Does Not Light at All
Fig. 24 Diagnostic Chart A (Part 1 Of 3):

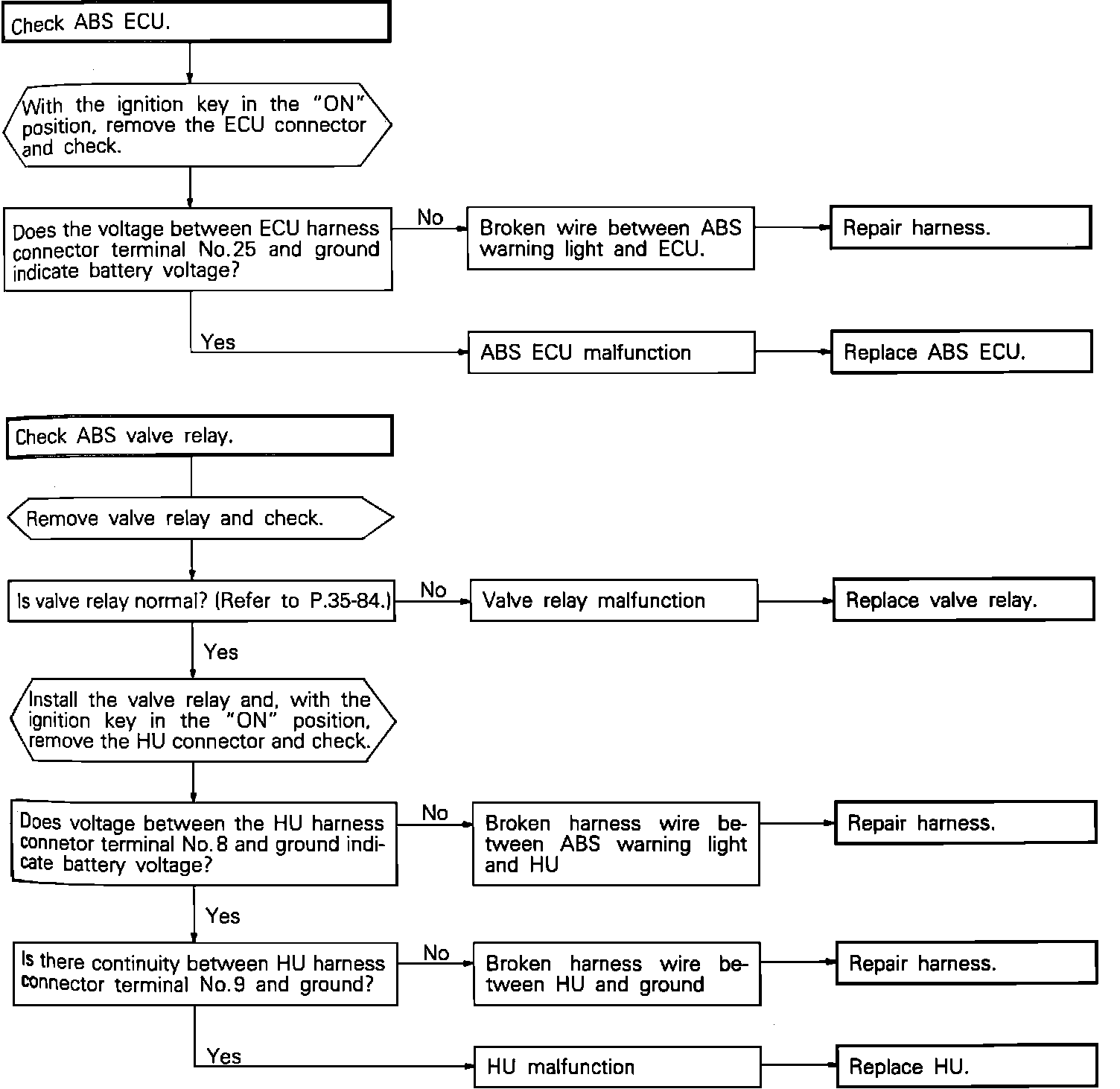

Fig. 24 Diagnostic Chart A (Part 2 Of 3):

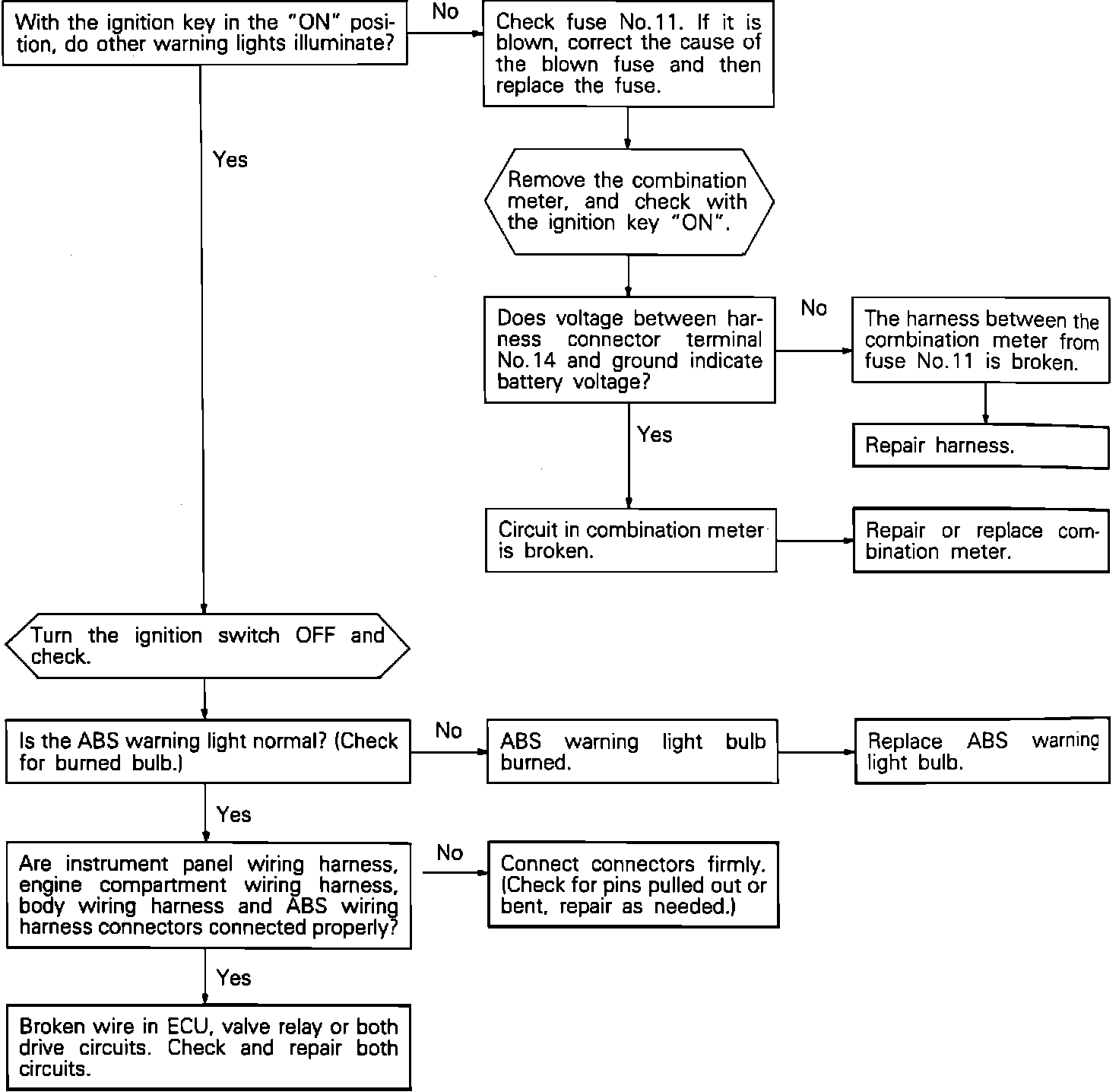

Fig. 24 Diagnostic Chart A (Part 3 Of 3):
