Diagnostic Procedure Charts

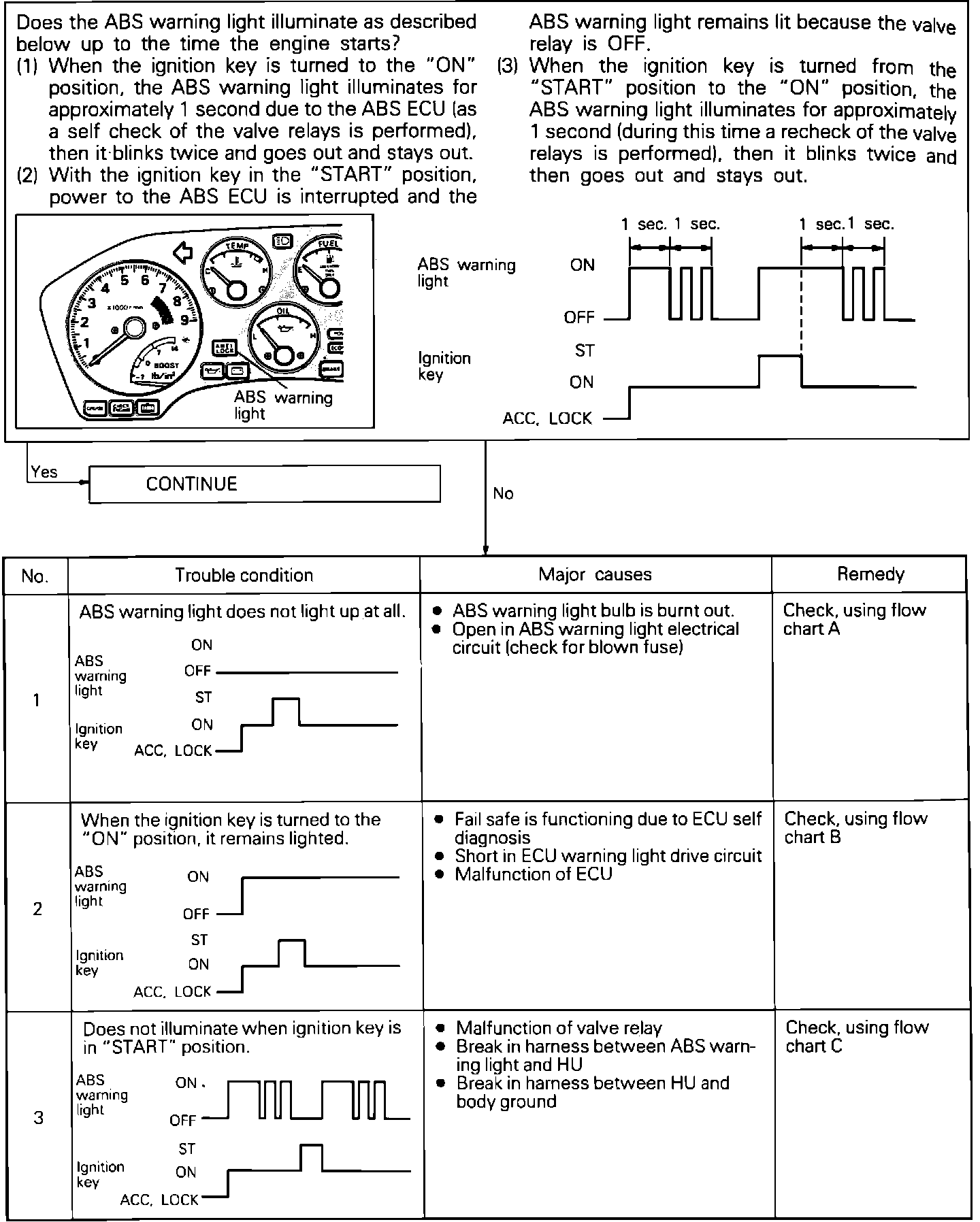

Fig. 23 Diagnostic Procedure Charts (Part 1 Of 3):

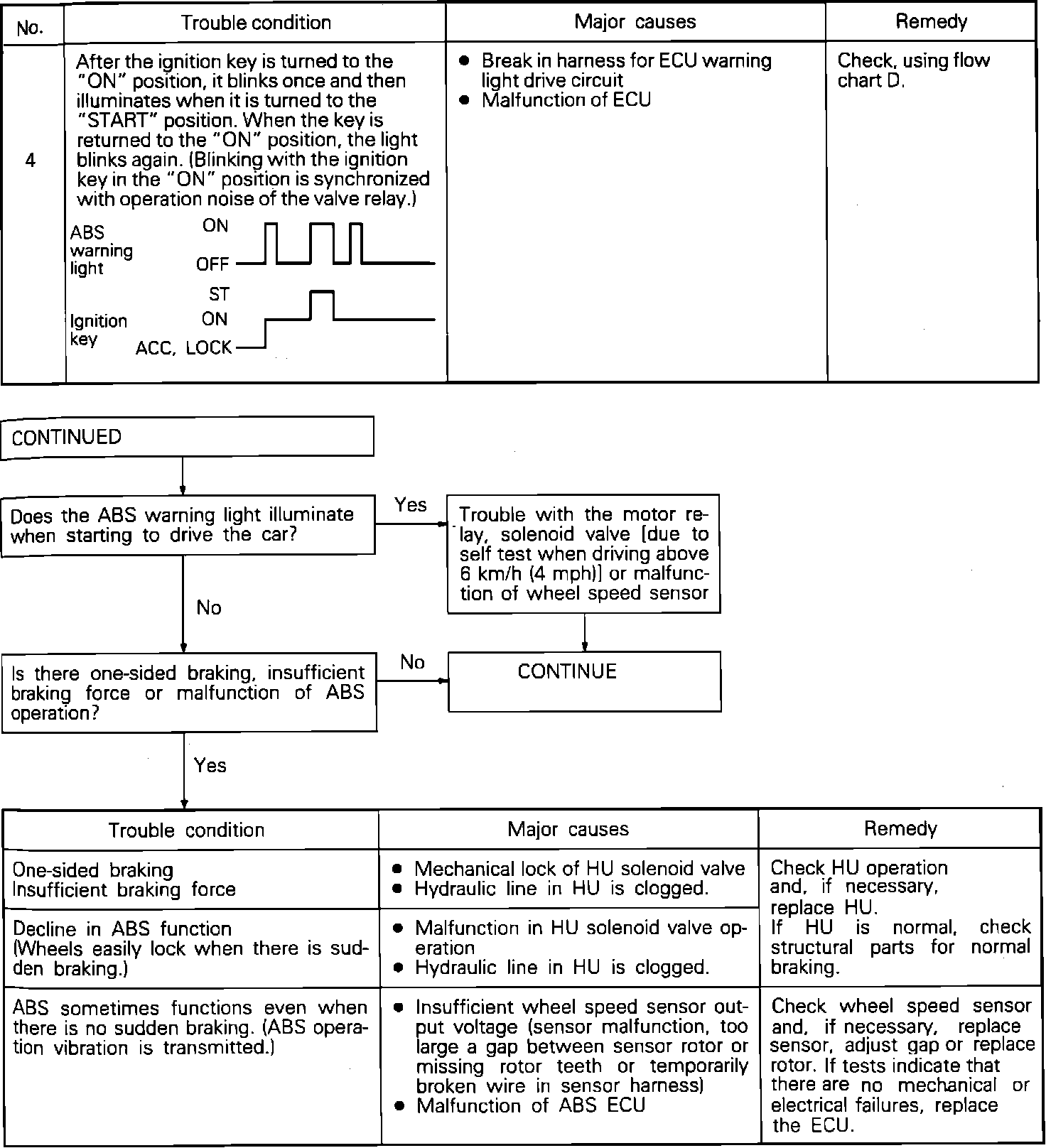

Fig. 23 Diagnostic Procedure Charts (Part 2 Of 3):

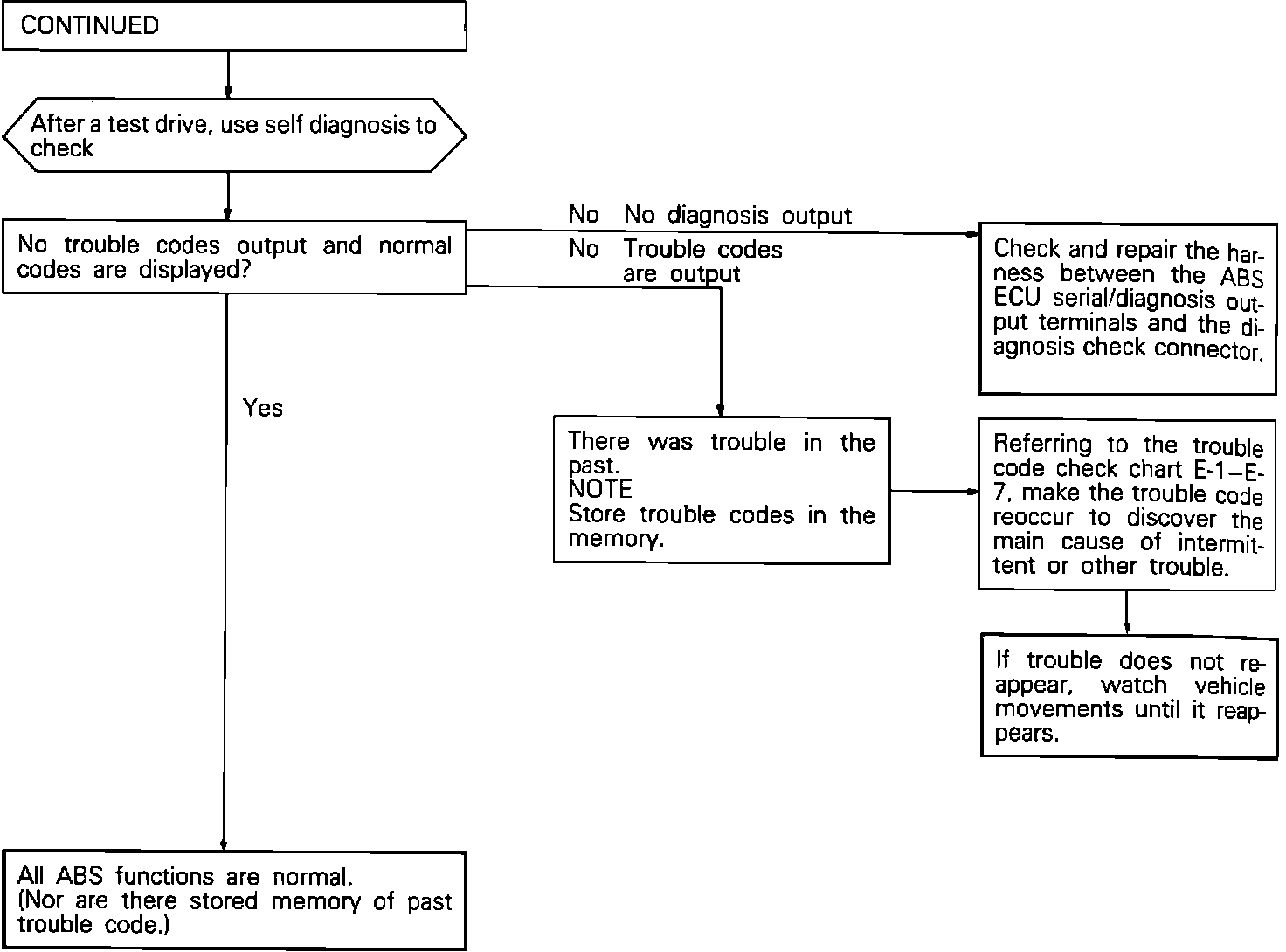

Fig. 23 Diagnostic Procedure Charts (Part 3 Of 3):
