Mitsubishi
>>
1991
>>
Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Door Locks
>>
Diagrams
>>
Electrical Diagrams
>>
With Alarm
With Alarm

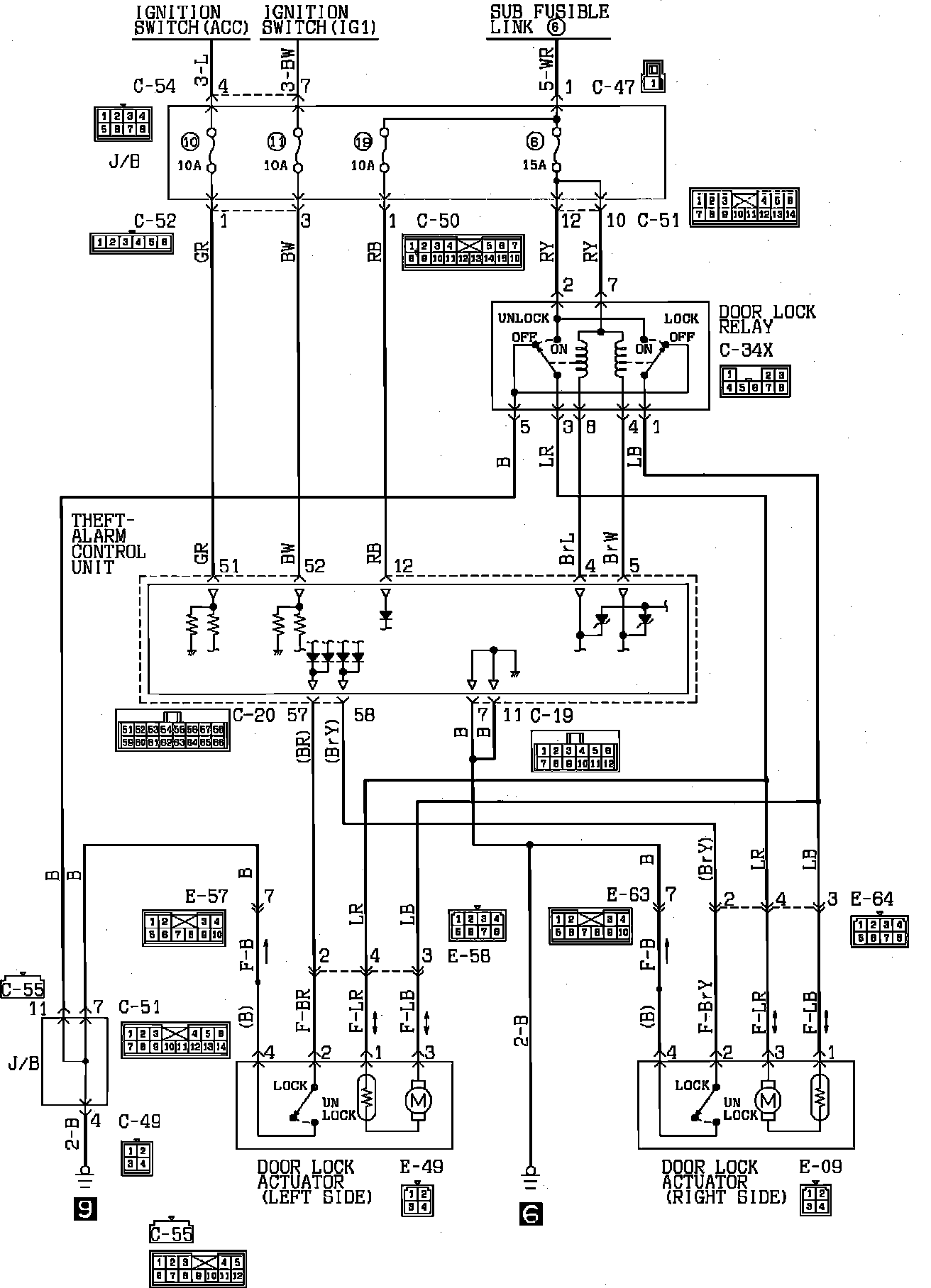

Power Door Locks (With Alarm):
