Status Monitor Connections

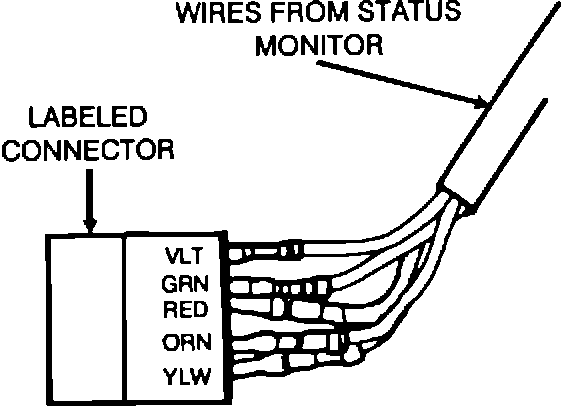

Figure 9:
Using the labeled blank connector from the parts kit, insert the correct colored wire into the connector (Figure 9).
Violet --> VLT
Green --> GRN
Red --> RED
Orange --> ORN
Yellow --> YLW
Using the labeled blank connector from the parts kit, insert the correct colored wire into the connector (Figure 9).
Violet --> VLT
Green --> GRN
Red --> RED
Orange --> ORN
Yellow --> YLW
