Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Traction Control System >> E6

E6

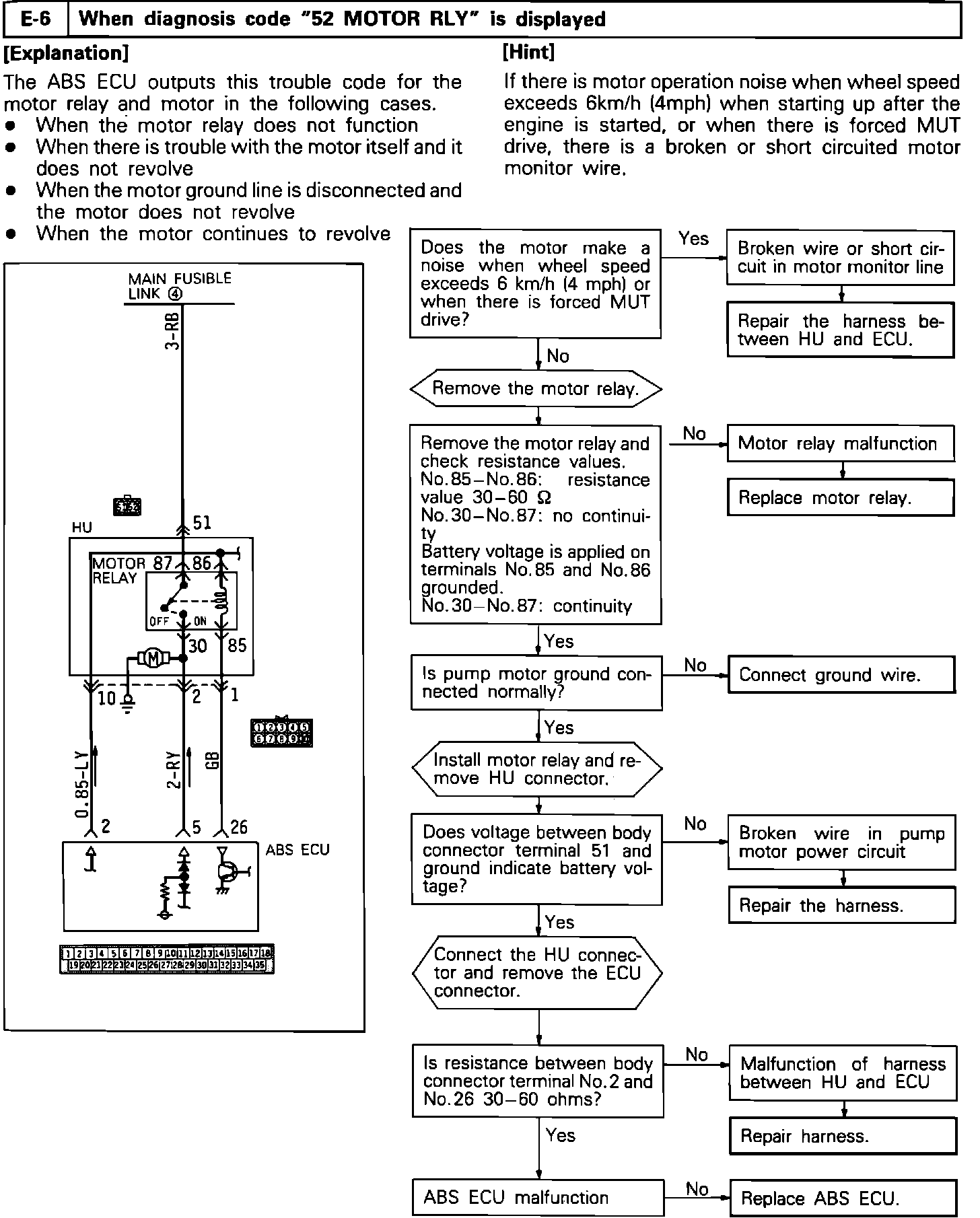

Fig. 33 Diagnostic Code Charts E6. Eclipse FWD & Expo:



Fig. 39 Diagnostic Code Chart E6. Eclipse AWD & Expo:
