Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Traction Control System >> E5

E5

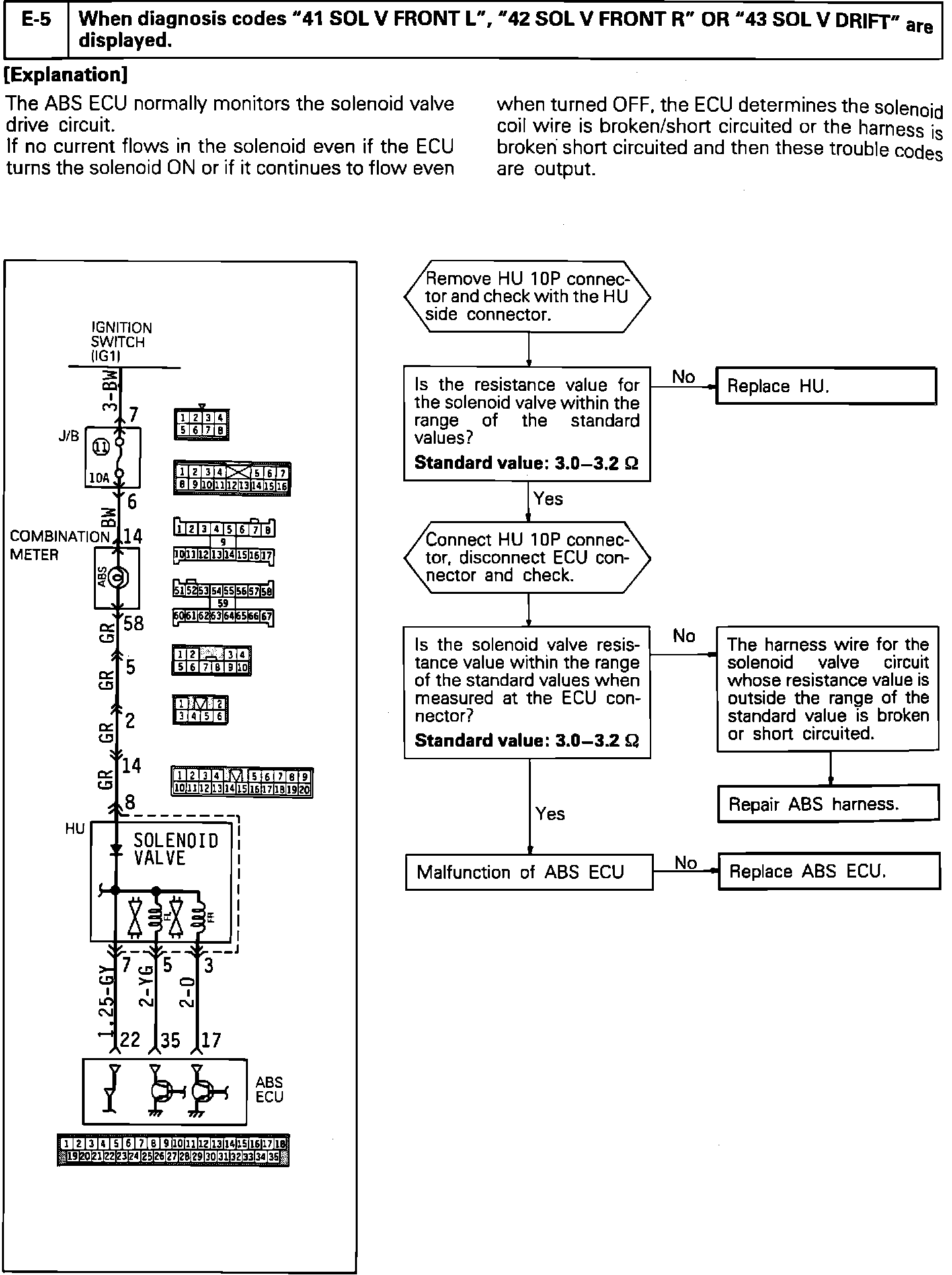

Fig. 32 Diagnostic Code Charts E5. Eclipse FWD & Expo:

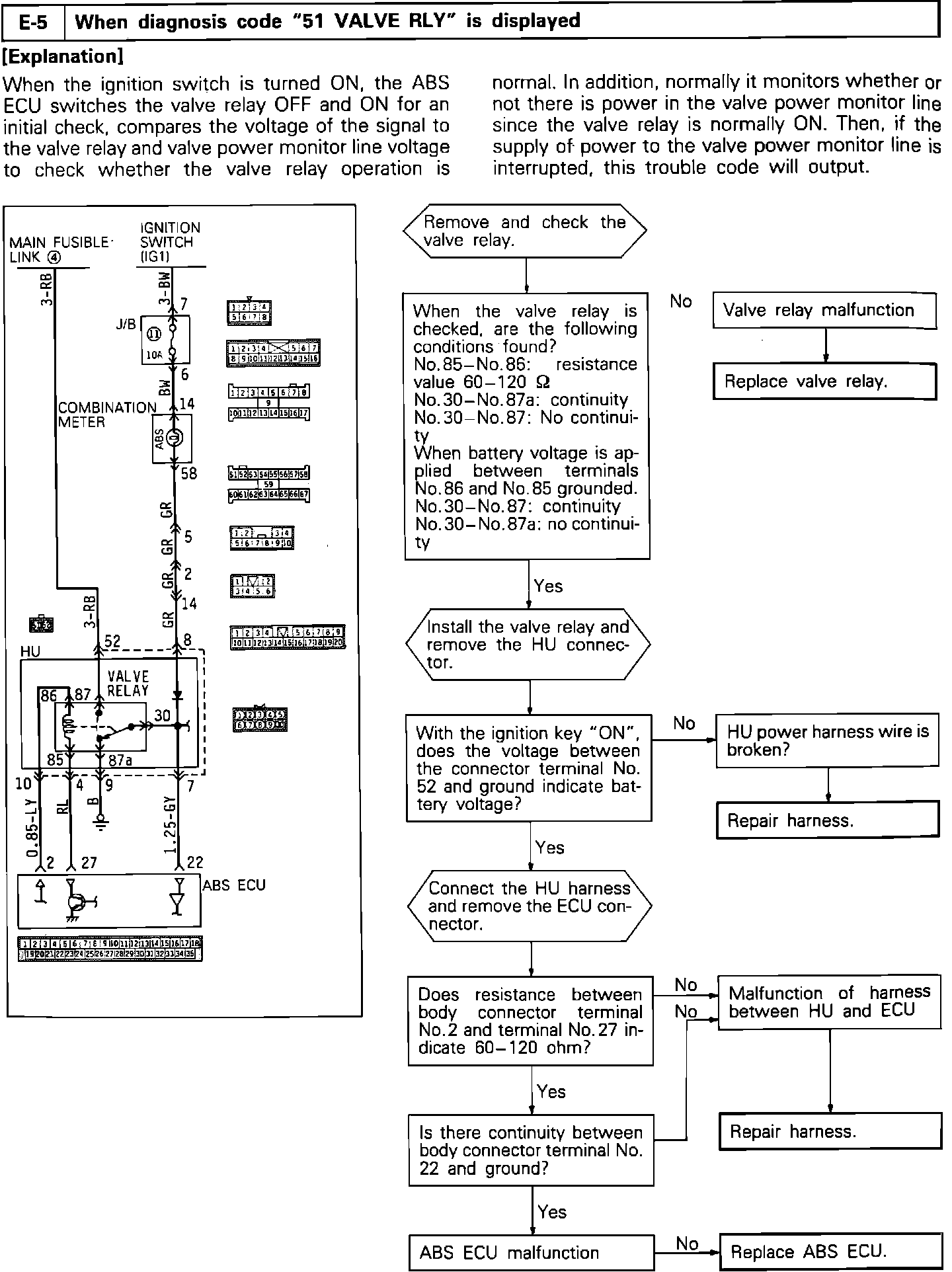

Fig. 38 Diagnostic Code Chart E5. Eclipse AWD & Expo:
