Anti-Lock Braking System (ABS)

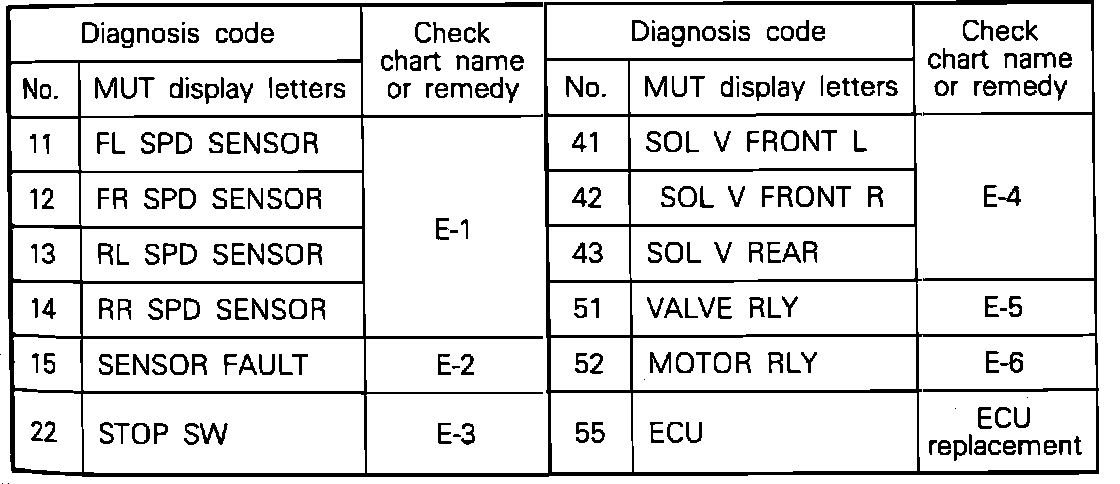

Fig. 28 Diagnostic Code Chart. Eclipse FWD, Expo, Galant & 3000GT:

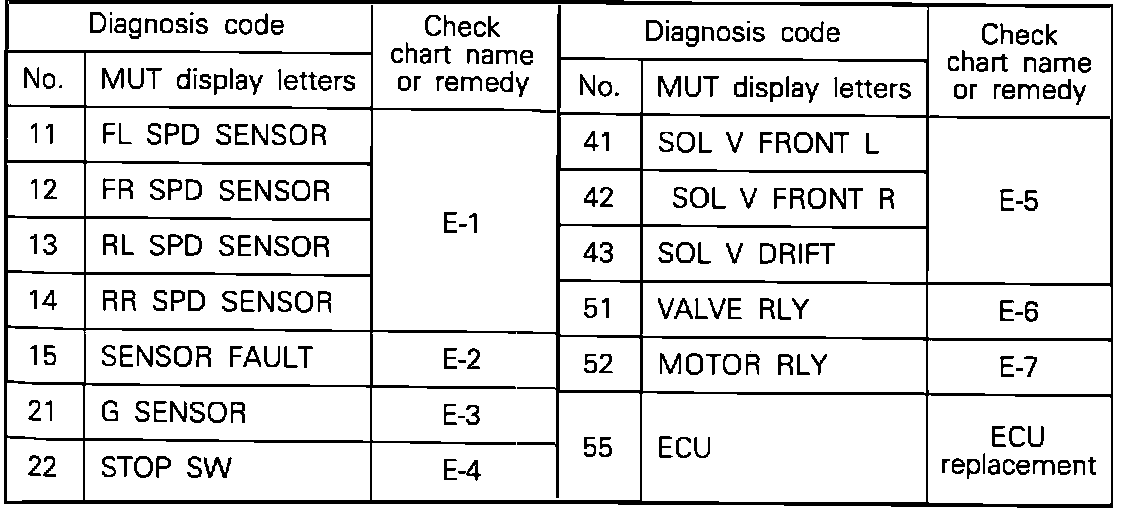

Fig. 34 Diagnostic Code Chart. Eclipse AWD, Expo, Galant & 3000GT:
