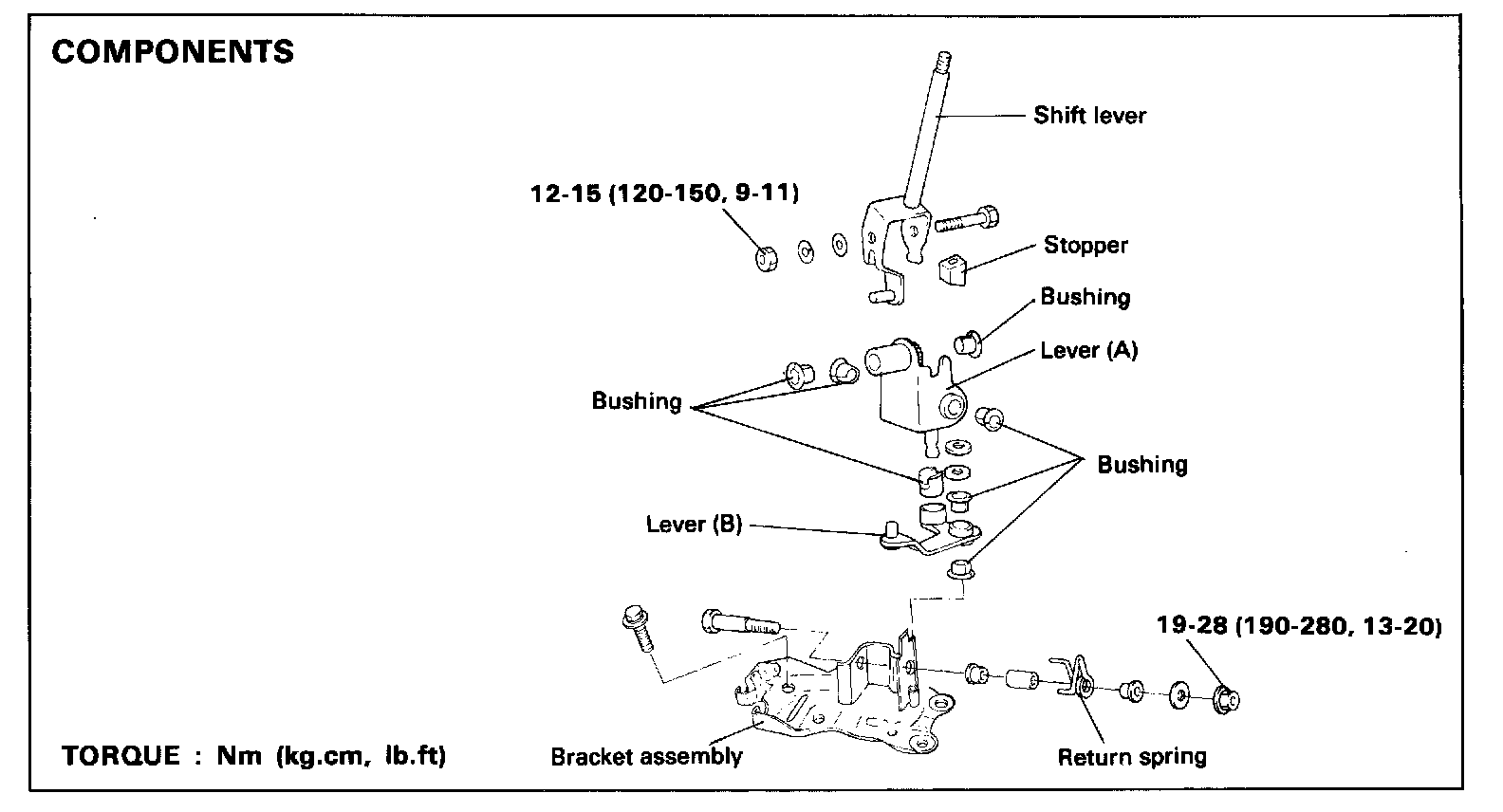

Shift Lever Assembly

SHIFT LEVER ASSEMBLY

INSPECTION




1. Check the bushing for wear or damage.
2. Check the return spring for damage or deterioration.

ASSEMBLY
1. Apply multi-purpose grease to the sliding part of the bushings.
2. Assembly is the reverse of disassembly.
