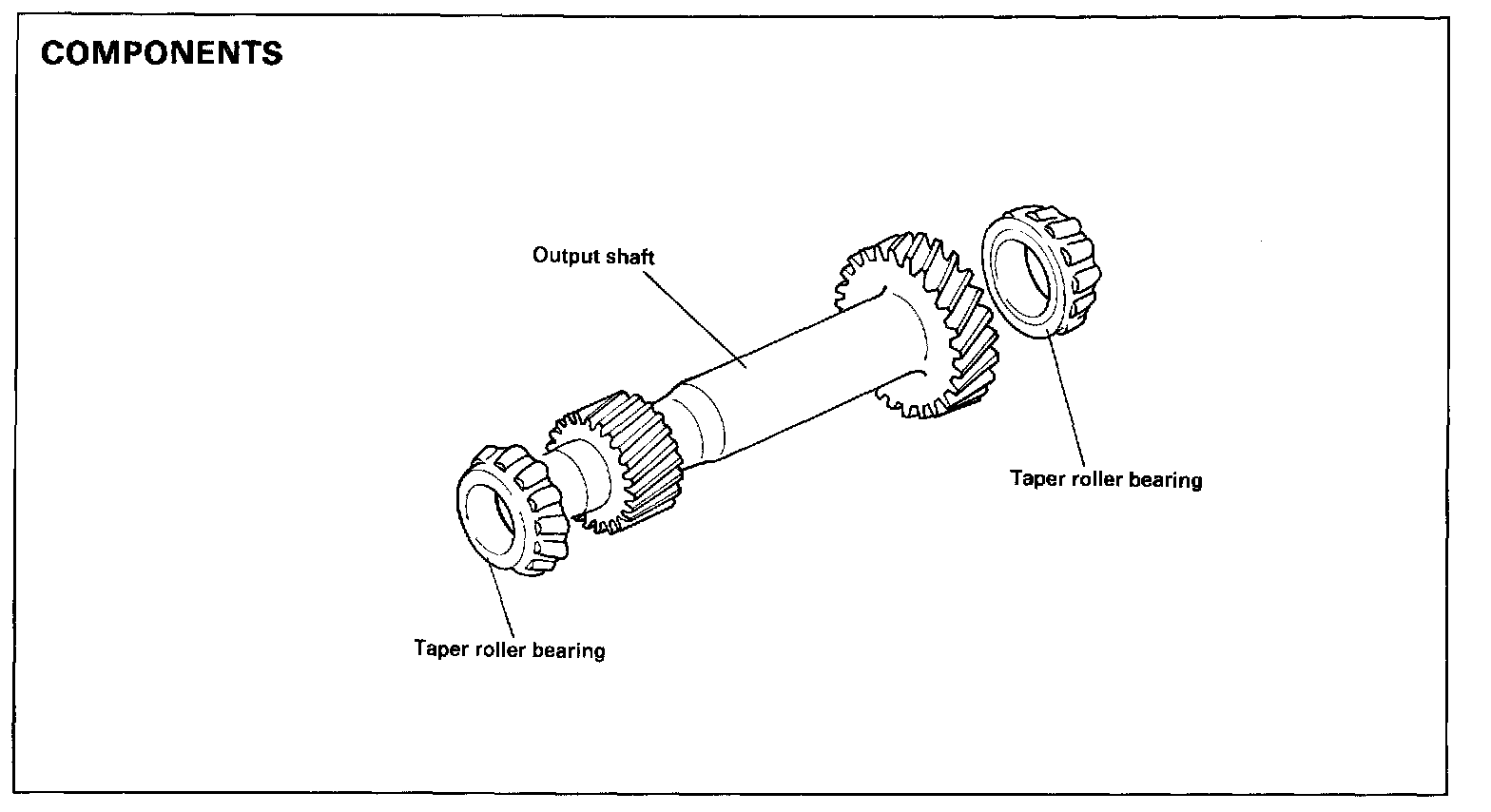

Output Shaft

OUTPUT SHAFT

DISASSEMBLY




1. Remove the tapered roller bearing using the special tool (09432-33200).

CAUTION: Do not reuse the bearing removed from the shaft.

ASSEMBLY




1. Install the tapered roller bearing using the special tool (09432-33300).

CAUTION: When installing the bearing. push on the inner race only.
