Clutch Housing

CLUTCH HOUSING

DISASSEMBLY

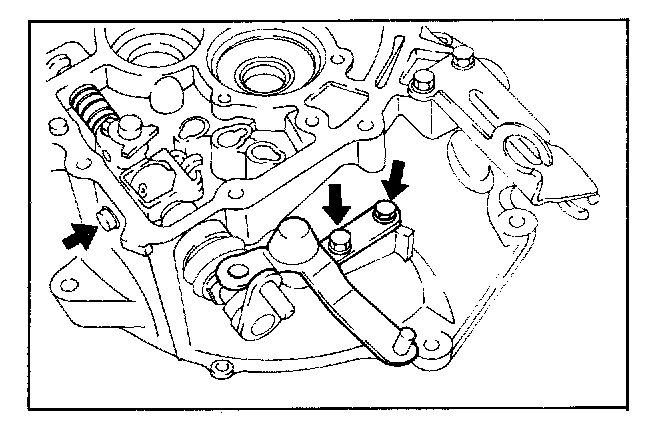

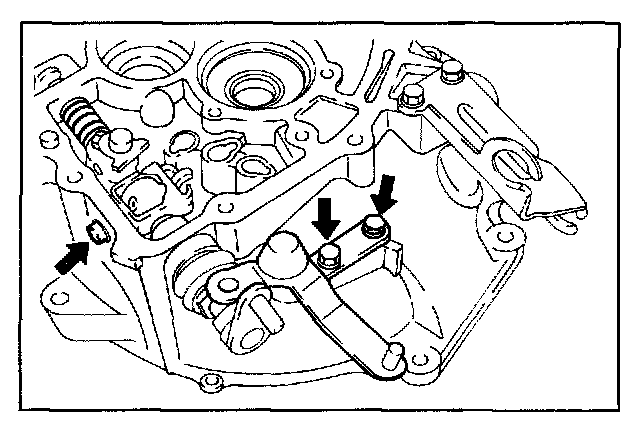

1. Remove the select lever assembly and the select lever shoe.
2. Remove the interlock plate bolt and gasket.

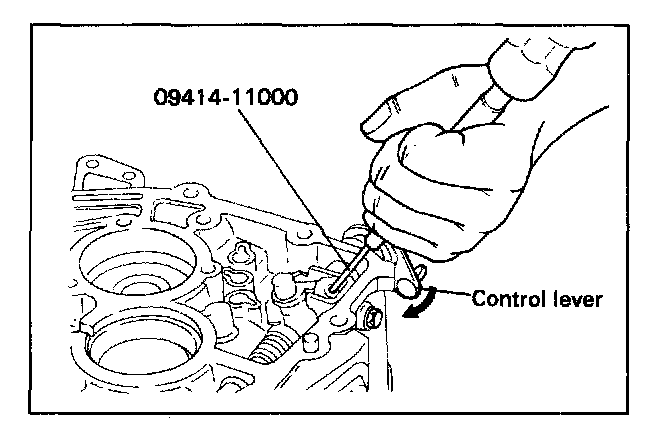

3. Drive out the spring pin from the control finger using the special tool (09414-11000).




4. Drive out the spring pin from the stopper body using the special tool (09414-11000).

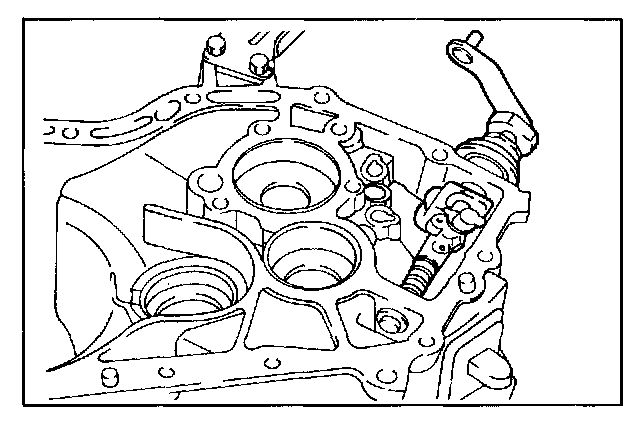

5. Pull out the control shaft and remove the control shaft boots and oil seal.

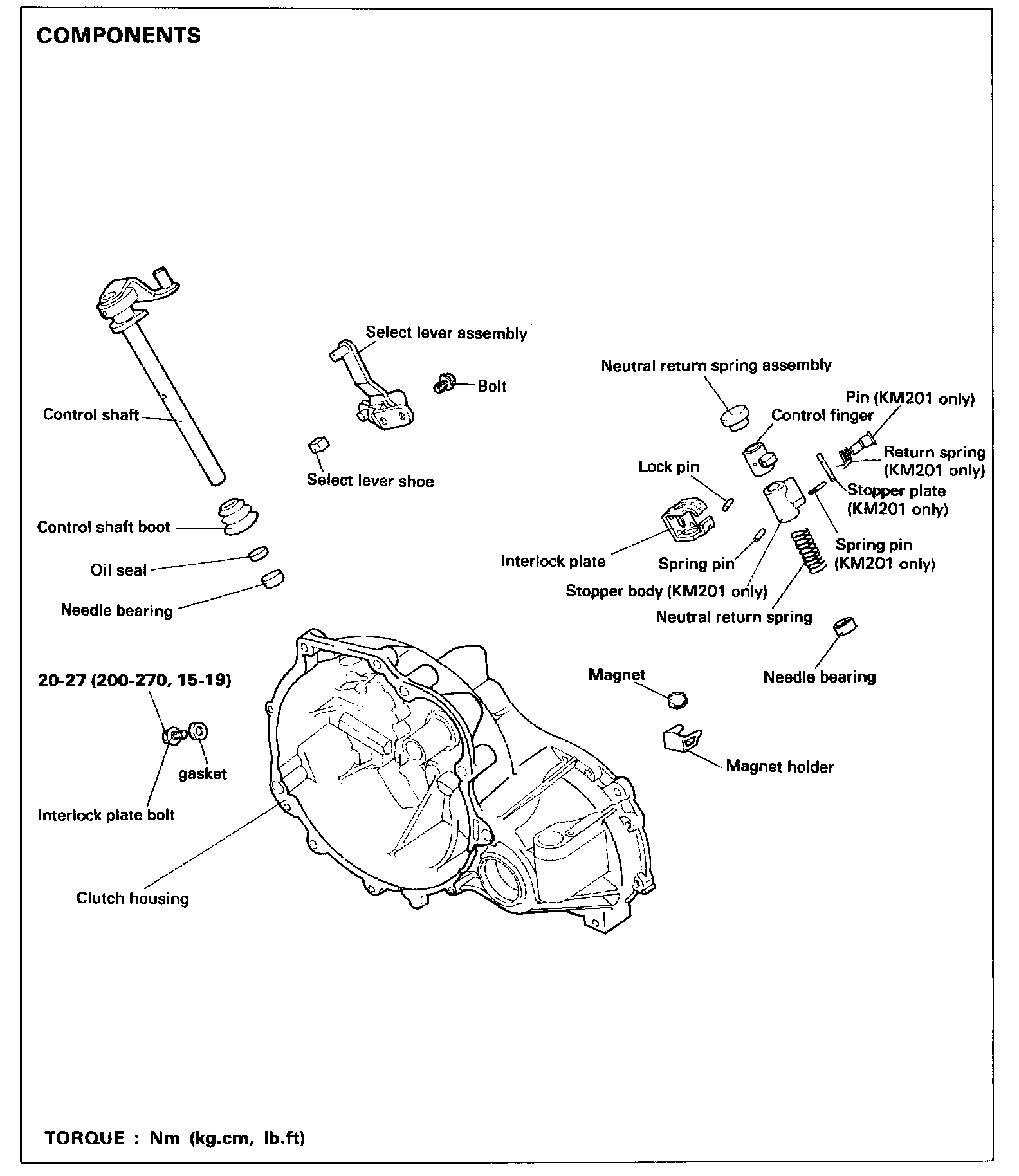

6. Remove the neutral return spring assembly, control finger, interlock plate, stopper body and the neutral return spring.
7. Remove the control shaft oil seal and the needle bearings.

NOTE: The stopper body, stopper plate, return spring and pin are used in the KM201 only.

ASSEMBLY

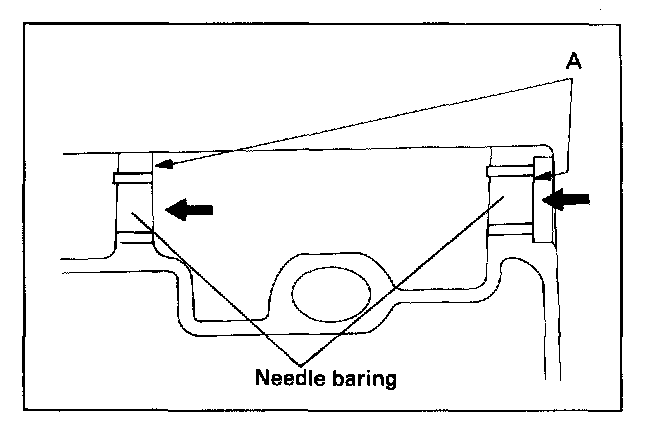

1. Install the needle bearing flush with surface "A" of the clutch housing.

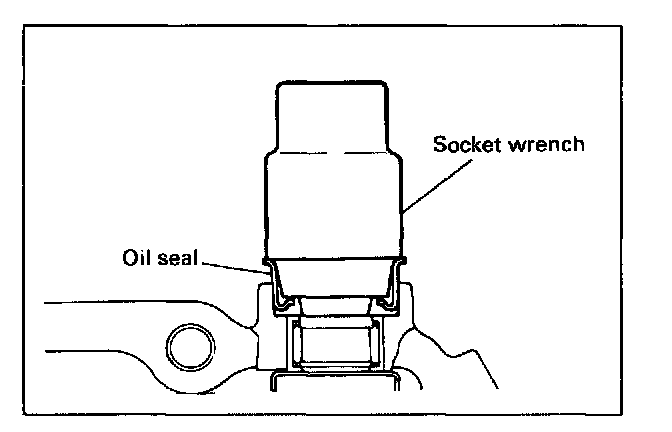

2. Install the control shaft oil seal using a socket wrench.




3. Install the neutral return spring assembly, control finger, interlock plate, stopper body and neutral return spring with the control shaft.

NOTE: The stopper body, stopper plate, return spring and pin are used in the to KM2O1 only.

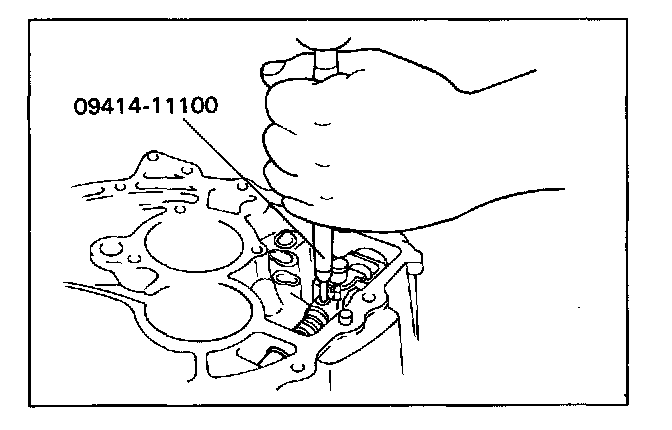

4. Install new spring pins using the special tool (09414-11100).

CAUTION:
1. Do not reuse the spring pins.

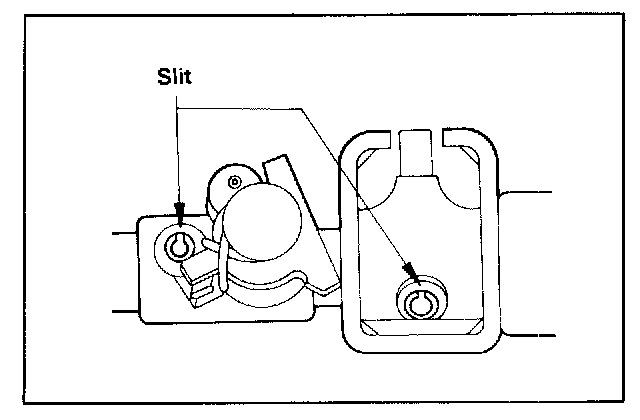

2. Install the spring pins with their slits at right angle to the center of the control shaft.




5. Install the interlock plate bolt and gasket.
6. Install the select lever assembly and select shoe.
